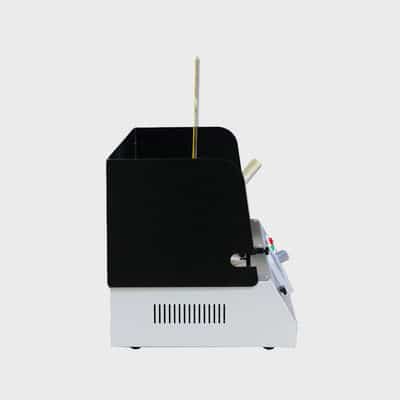

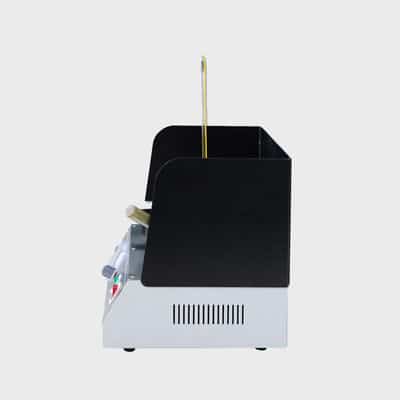

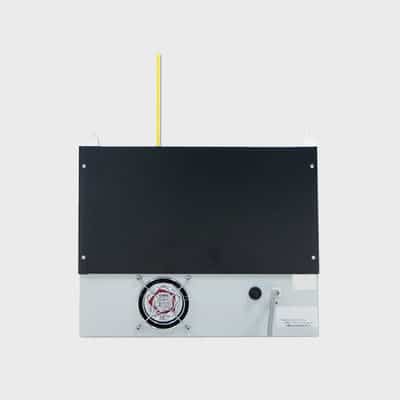

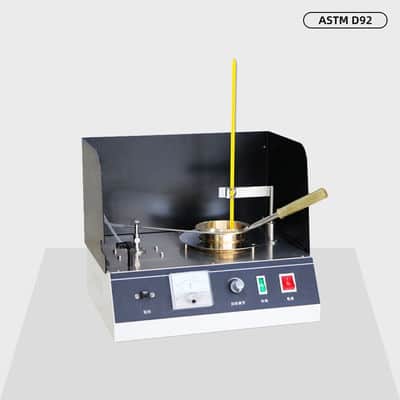

SAMYON SY-3536 Cleveland Open Cup Flash Point Apparatus 0-600W
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-3536 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Open Cup Flash Point Tester | Standard: | ASTM D92 |
|---|---|---|---|
| Temp Range: | Room Temperature ~ 400℃ | Ignition Mode: | Coal Gas |
| Heating Device: | Furnace, 0-600w | Method: | Cleveland Open Cup Method |
| High Light: |
SY-3536 Cleveland Open Cup Flash Point Apparatus, 600W Cleveland Open Cup Flash Point Apparatus, SAMYON Cleveland Open Cup Flash Point Apparatus |
||
SY-3536 Cleveland Open Cup Flash Point Tester To Detect Flash And Fire Points
Application:
It is used to detect Flash and Fire Points by Cleveland open cup method. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Standard:
ASTM D92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester
GB/T3536-2008 Petroleum Products – Determination of Flash and Fire Points – Cleveland open cup method
Parameters:
| Item | Name | Details |
| 1 | Temperature measurement range | room temperature ~ 400℃ |
| 2 | Ignition mode | Coal gas, nozzle aperture is about 0.8mm |
| 3 | Heating device | furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. |
| 4 | Maximum power consumption | 650W |
| 5 | Accuracy | 0.1℃ |
| 6 | Flash point detecting device | It applies the test flame automatically |
| 7 | Ambient temperature | (15~35)℃ |
| 8 | Relative humidity | =<85% |
| 9 | Power supply | AC 220+/-10% V, 50Hz |
| 10 | Dimension | 350mmx290mmx350mm |
Features:
1. The heating power is continuously adjustable. It can meet requirements of test.
2. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.
3. With fast cooling function, it can improve test efficiency.
4. It adopts special heating furnace to ensure the safety of test.
