Second Class Pyranometer

Hukseflux SR05 series is the most affordable range of pyranometers meeting ISO 9060 and WMO No. 8 requirements. They are ideal for general solar radiation measurements in (agro) meteorological networks and PV monitoring systems. SR05’s are easy to mount and install. Various outputs are available, both digital and analogue, for ease of integration.

Depending on the project requirement, we offer three variants in SR05 series

●SR05-D1A3 digital second class pyranometer, with Modbus over RS-485 and 0-1 V output
●SR05-D2A2 digital second class pyranometer, with Modbus over TTL and 4-20 mA output
●SR05-A1 analogue second class pyranometer with millivolt output

●Industry standard digital and analogue outputs : easy implementation and servicing

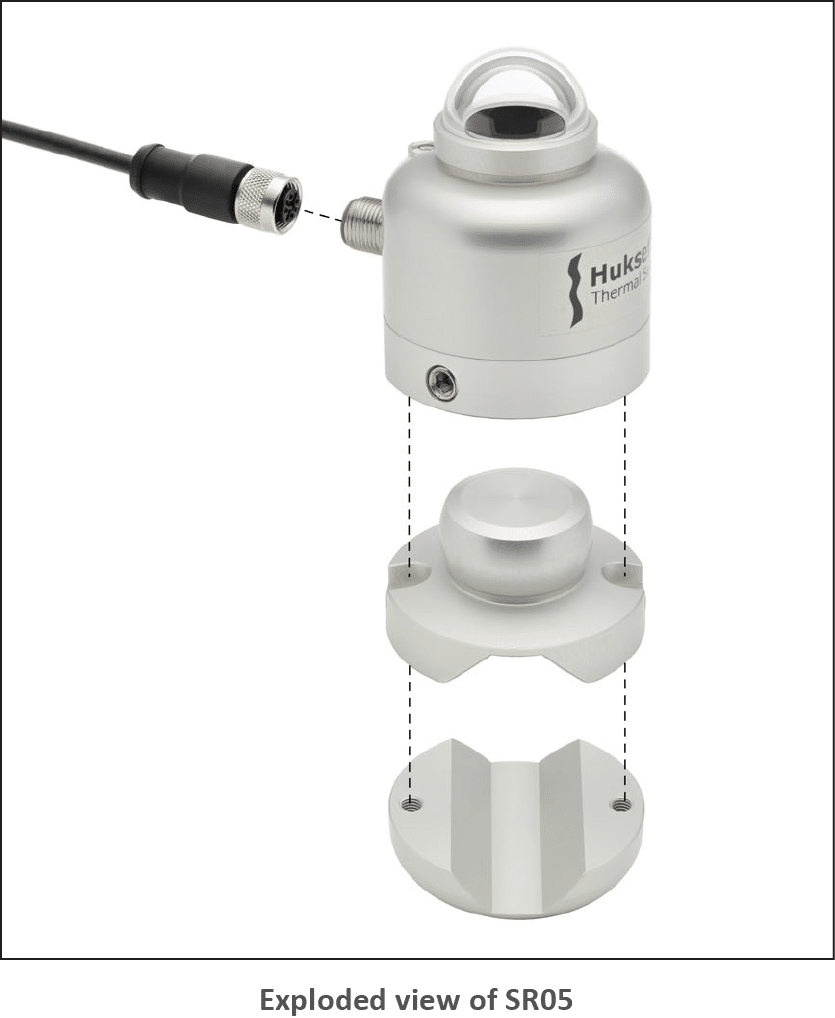

●Easy mounting and levelling
●Pricing : second class pyranometers finally affordable for large networks

●ISO Classification : Second Class pyranometer
●Calibration uncertainty : < 1.8% (k = 2)
●Response Time (95%) : 18s
●Zero offset a : < 15 W/m2 unventilated
●Spectral range : 285 to 3000 × 10-9 m
●Rated operating temperature : -40℃ to +80℃ range
●Calibration traceability to WRR
●Sealing : IP67
