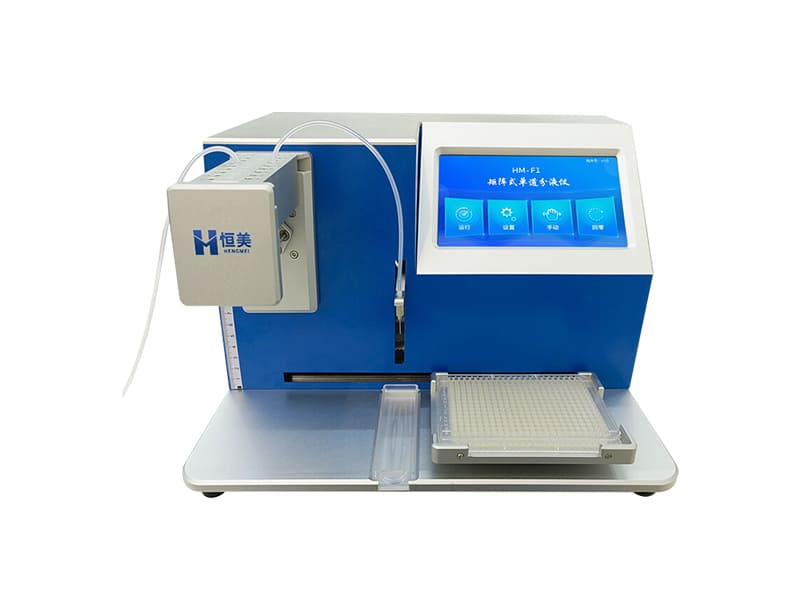

Single channel automatic liquid separator

Product Description

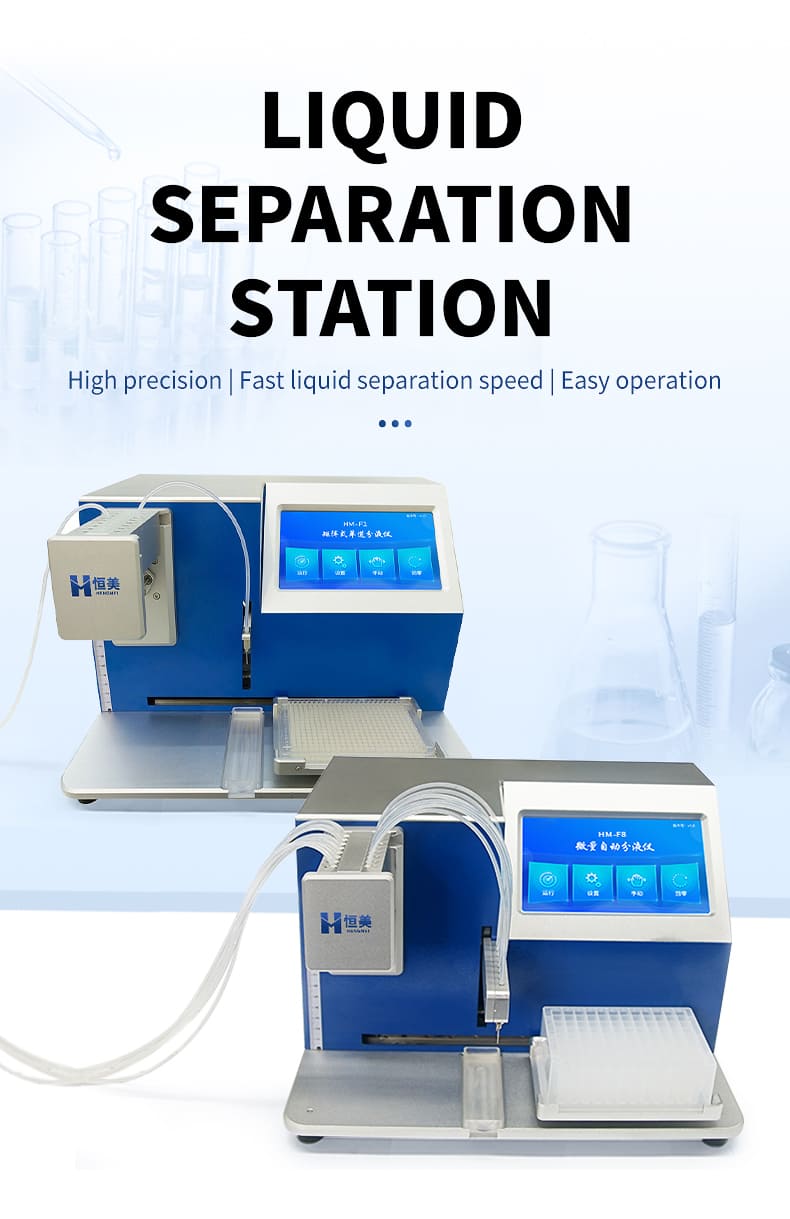

The single channel automatic liquid separator is a high-precision, fast liquid separation speed, and flexible and reliable liquid separation instrument. The appearance design is compact and simple, and the human-machine interface is easy to operate. It has multiple functions such as cleaning, suction, and oscillation mixing, which can be applied to various experimental operations in various fields.

Product features

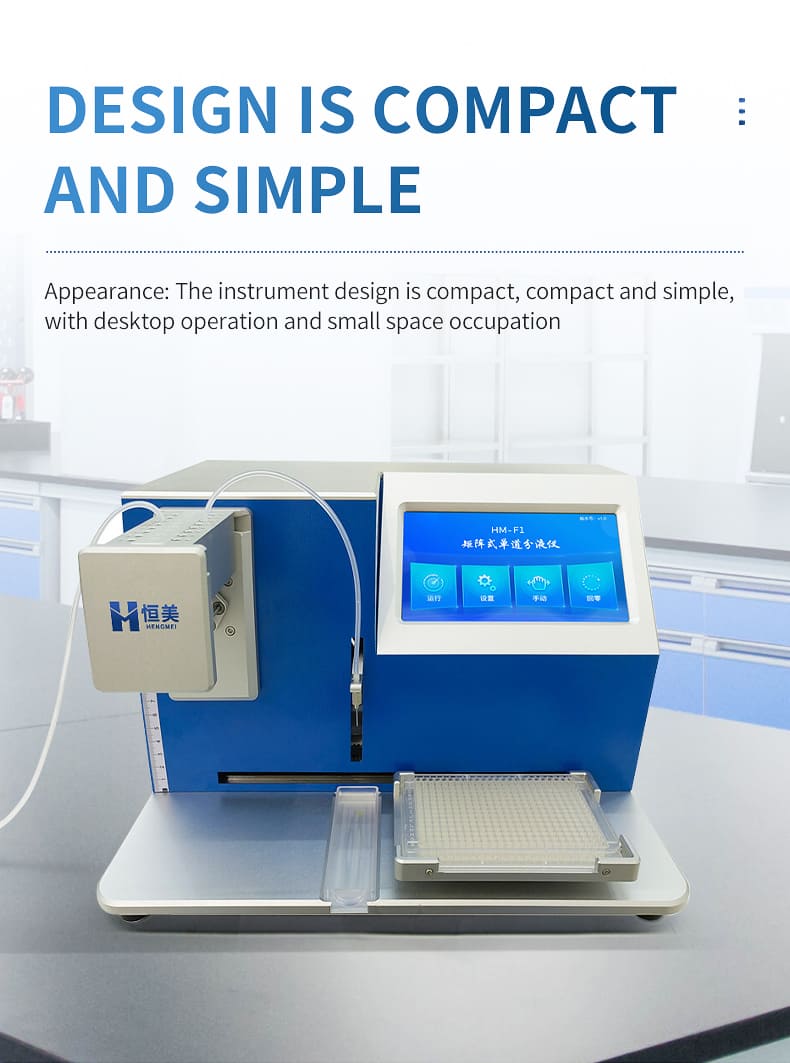

1. Appearance: The instrument design is compact, compact and simple, with desktop operation and small space occupation.

2. Flexible liquid separation: Different volumes of separation can be set in any hole of any orifice plate.

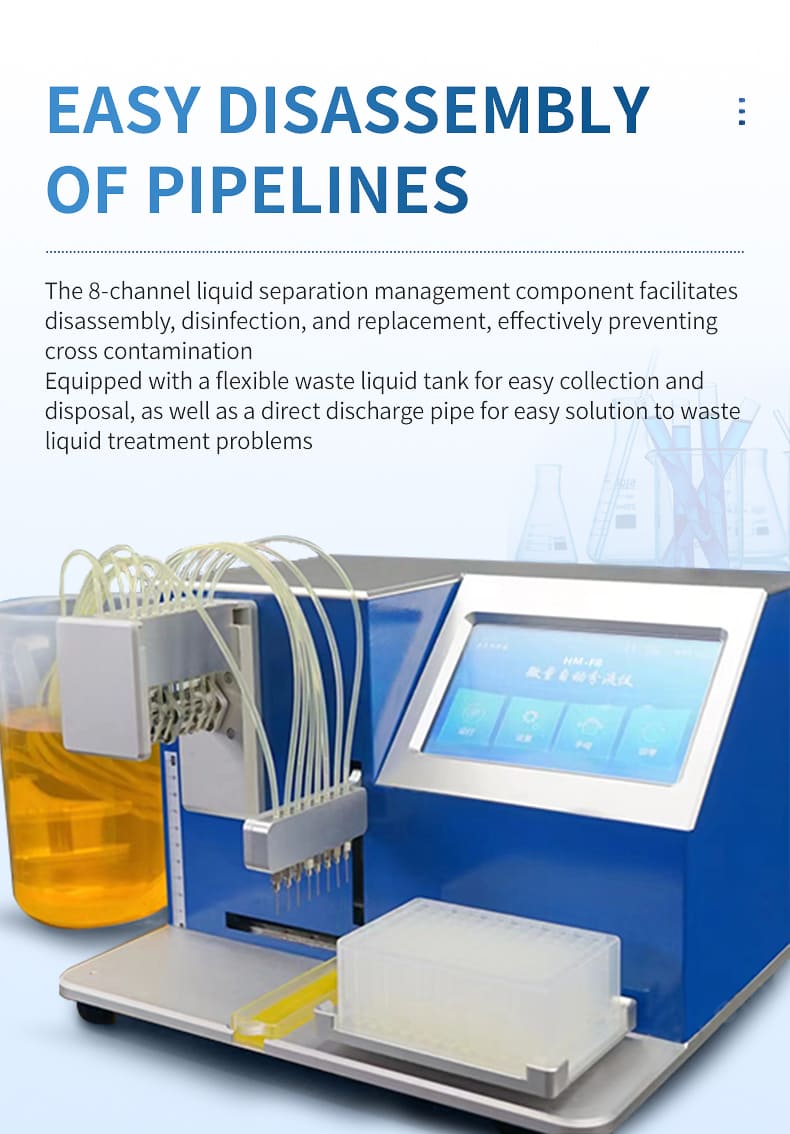

3. Separation pipeline: The separation management component is easy to disassemble, disinfect, and replace.

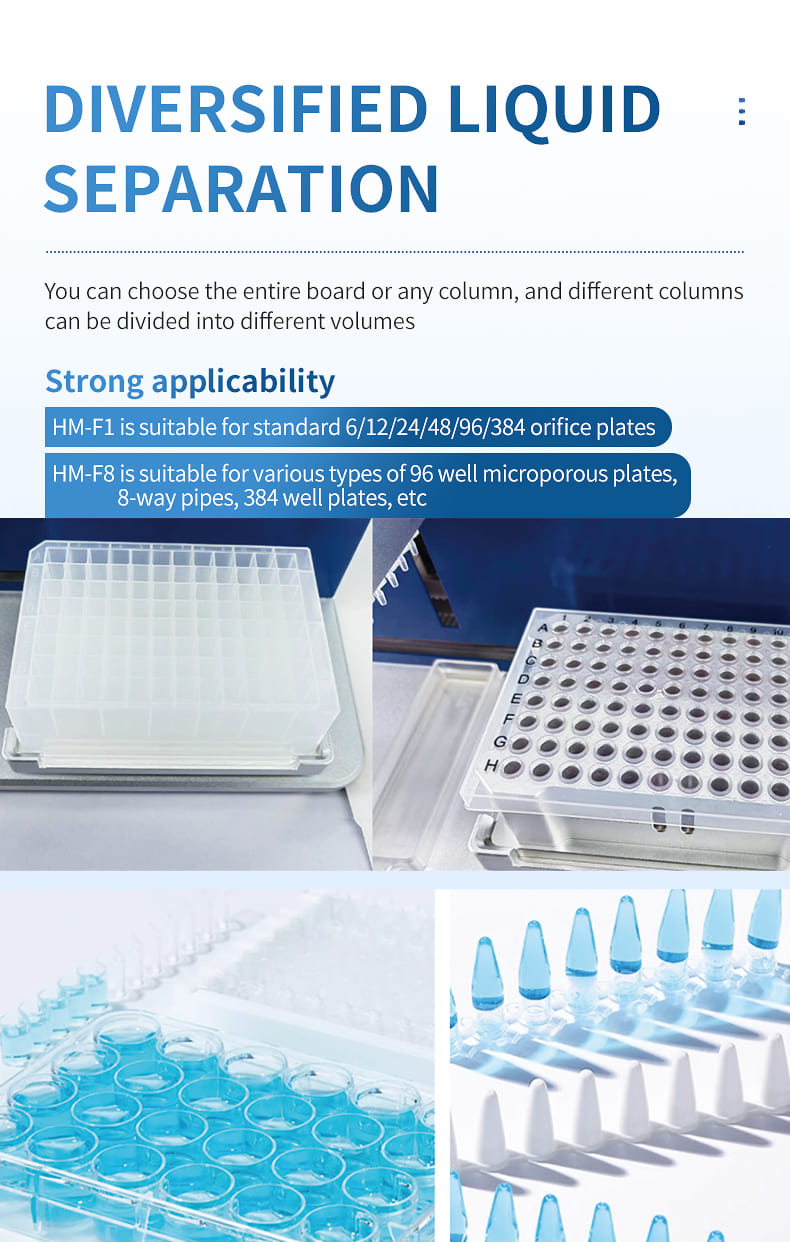

4. Strong applicability: Suitable for standard 6/12/24/48/96/384 orifice plates.

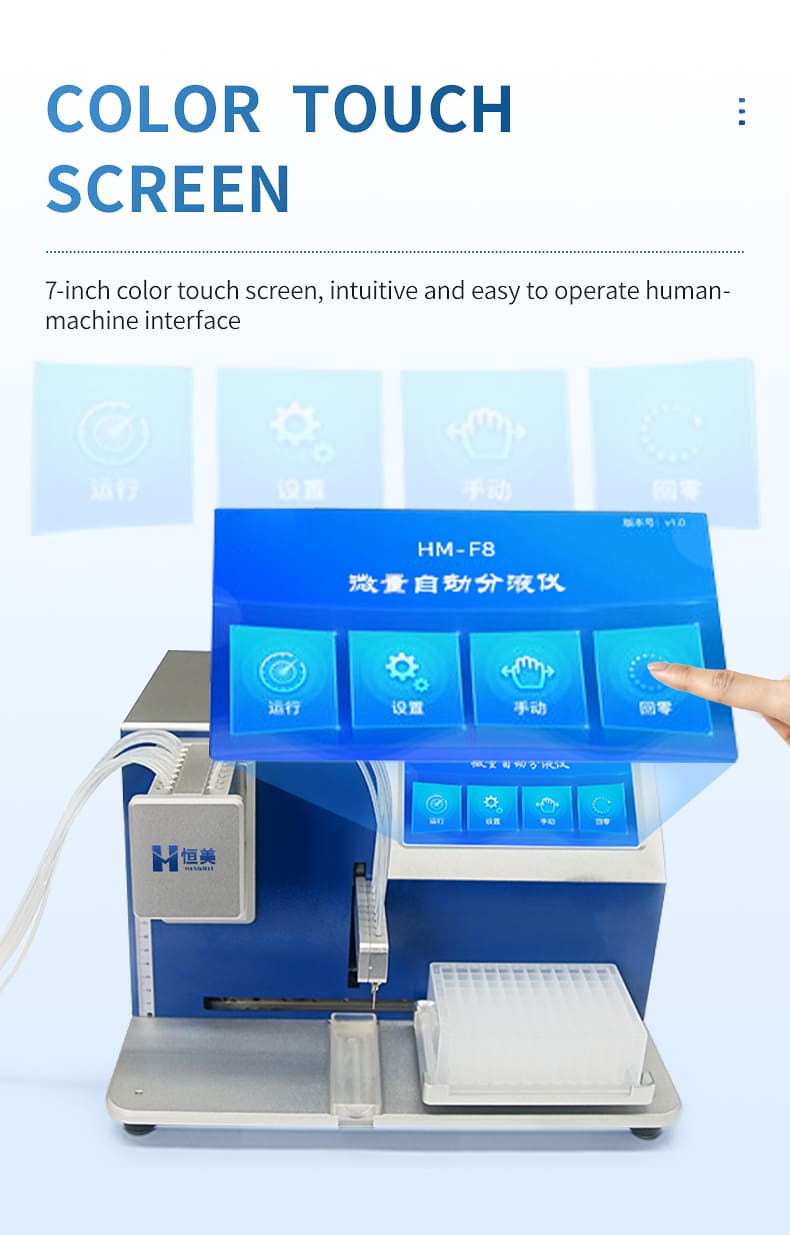

5. Operation interface: 7-inch color touch screen, intuitive and easy to operate human-machine interface.

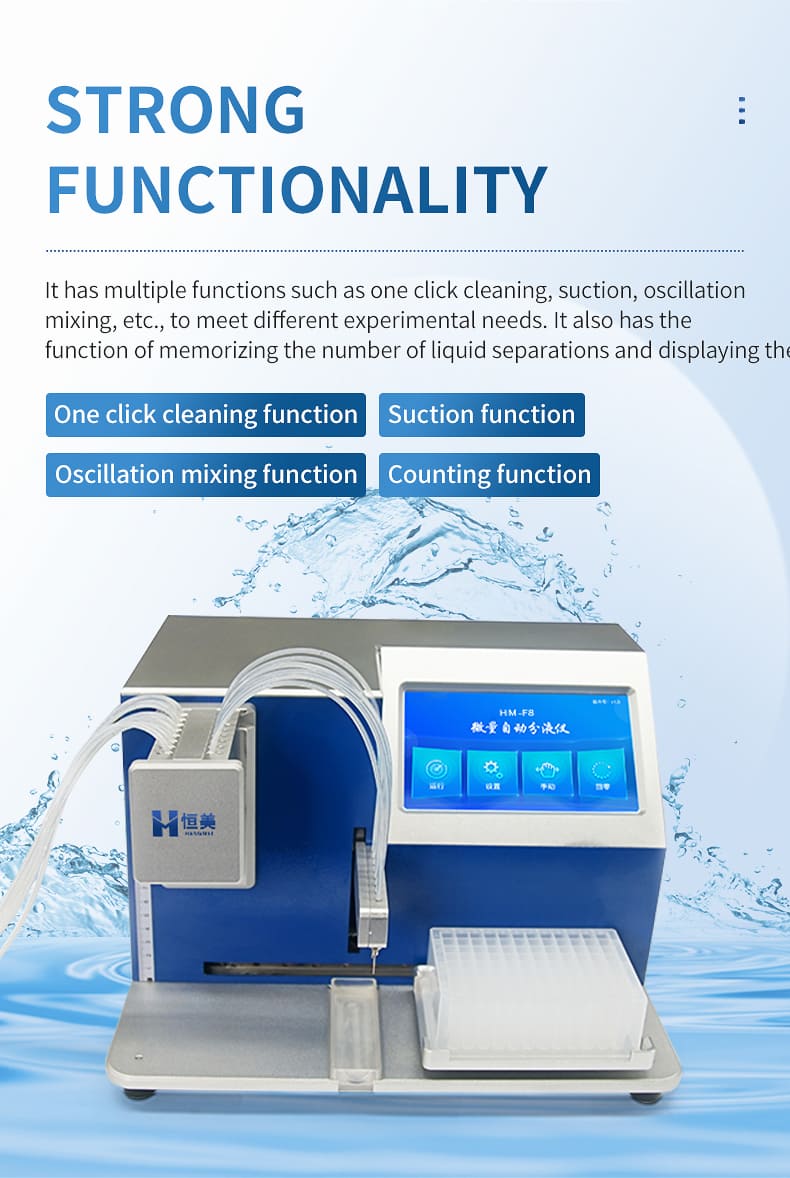

6. Strong functionality: With multiple functions such as cleaning, suction, and oscillation mixing, it can meet different experimental needs.

7. Waste liquid treatment: Equipped with a flexible waste liquid tank for collection and disposal, and can also be connected for direct discharge, easily solving the waste liquid problem.

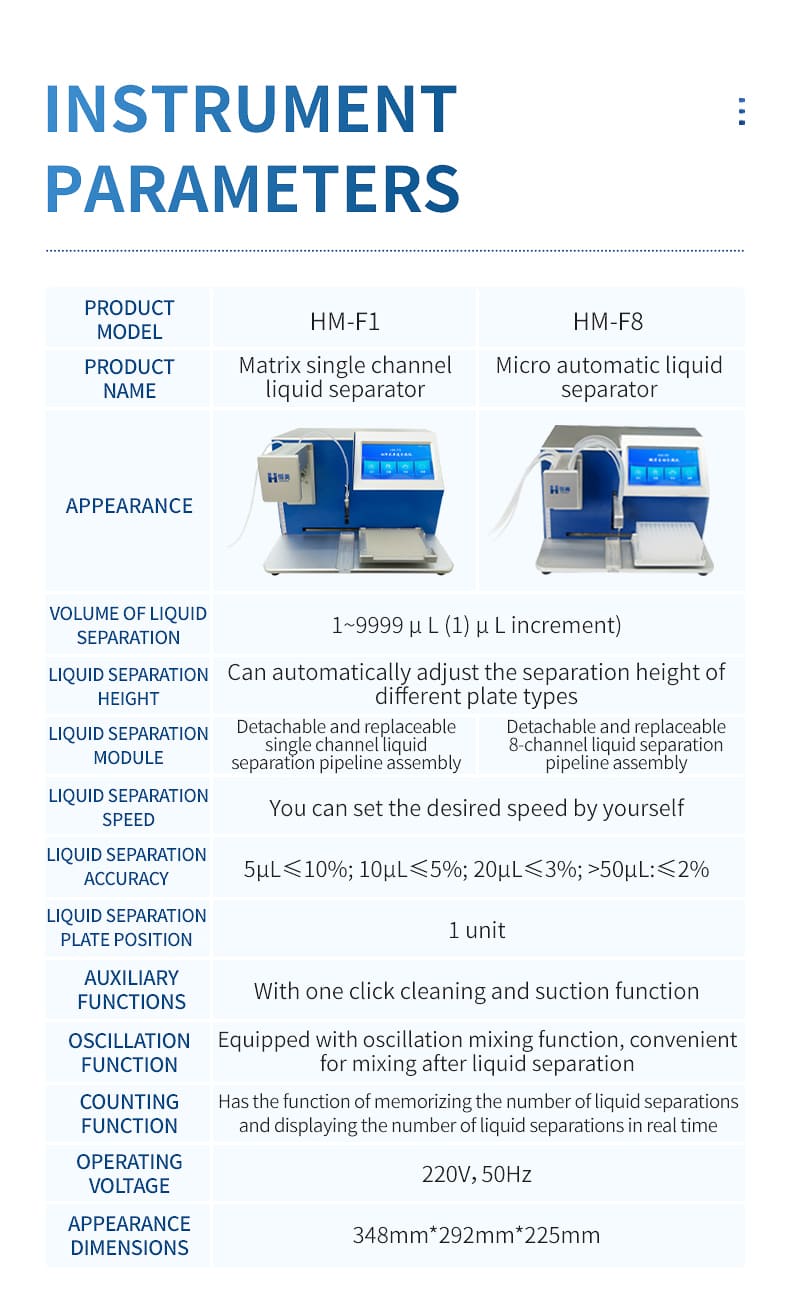

Technical parameter

Separation volume: 1-9999 μ L (1) μ L increment)

Separation height: can automatically adjust the separation height of different plate types

Liquid separation module: detachable and replaceable single channel liquid separation pipeline component

Separation speed: The desired speed can be set by oneself

Data writing: can be manually entered/imported into a table using USB flash drive

Liquid separation accuracy: 5 μ L ≤ 10%; ten μ L ≤ 5%; twenty μ L ≤ 3%;> fifty μ L: ≤ 2%

Separation plate position: 1

Auxiliary functions: With one click cleaning and suction function

Oscillation function: With oscillation mixing function, it is convenient for mixing after liquid separation

Counting function: It has the function of remembering the number of liquid separations and displaying the number of liquid separations in real time

Operating voltage: 220V, 50Hz

Appearance dimensions: length 348mm * width 292mm * height 225mm
