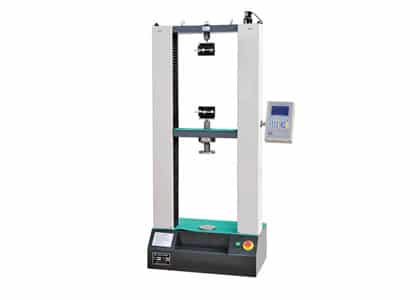

SKZ101 Double Column Tensile Tester
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
1 .Introductions
Its precise auto control and data acquisition system allow it to automatically acquire data and control the
procedures. It can measure tensile strength, elongation, deformation, equipped with printer, the test results can be printed. And also equipped with the extensometer.
2. Advantages
1) Equipped with hand control box to allow the moving of the crosshead quickly and flexibly.
2) It can automatically return to the original position after test.
3) Equipped with limit switches for preventing over travel protecting.
4) Having the functions of load control, stress control, deformation
control, stain control, displacement control and can allow the customer to programme the test.
3. Main technical parameter
| 1 | Max. test force | 5KN |
| 2 | Precision | 1% |
| 3 | Measuring range of load | 1%-100% of max. force |
| 4 | Relative error of indicating
value of test force |
1% |
| 5 | Resolution of test force | 1/300000 |
| 6 | Measuring range of deformation | 2%-100% |
| 7 | Adjusting range of load control rate | 0.005%-5%FS/S |
| 8 | Precision of load control rate | When rate is less than 0.05%FS,
the precision is 1% When rate is more than 0.05%FS, the precision is 0.5% |
| 9 | Adjusting range of deformation rate | 0.005-5%FS/S |
| 10 | Precision of deformation rate | When rate is less than 0.05%FS/s,
the precision is 1% When rate is more than 0.05FS/s, the precision is 0.5% |
| 11 | Adjusting range of displacement | 0.5-500mm/min |
| 12 | Precision of displacement rate | 0.2% |
| 13 | Range of constant load, constant
deformation,constant displacement |
0.5%-100%FS |
| 14 | Precision of constant load, constant
deformation, constant displacement |
When the set value is more than 10%FS, the
precision is 0.5% When the set value is less than 10%FS, the precision is 1% |
| 15 | Distance between columns | 900mm |
| 16 | Voltage and power(should
connect to the ground) |
220V, 50Hz, 400W |
- Configuration of the machine
