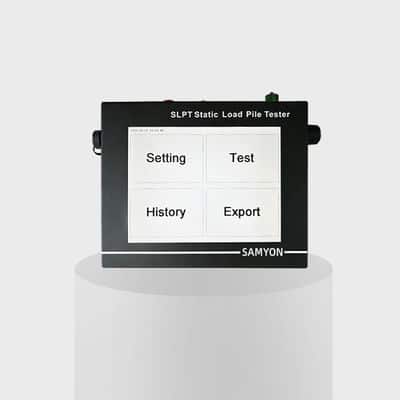

SLPT 12channels Automatic Static Load Pile Tester For Lateral Load Testing
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SLPT |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Static Pile Tester | Standard: | ASTM D1143 |
|---|---|---|---|
| Displacement Gauge: | 8pcs | Connection: | Cable Or Wireless |
| Data Control Box: | 12channels | Curve: | Q-S And S-lgt Curve |
| High Light: |
12channels Static Load Pile Tester, SLPT Static Load Pile Tester |
||
SLPT Automatic static load pile tester(6channels/12channels)
Application: Used for testing the pile loading capacity by static method. Compared with the dynamic testing method, the static pile testing will take longer time with different loading grade. So it can check the displacement under the different loading force through the high precision displacement gauge. The systemcan be used for the Static Axial Compressive Load testing, and also can be used for the lateral load testing.
Standard:
ASTM D1143 Standard Test Method for Deep Foundations Under Static Axial Compressive Load
ASTM D3689 Standard Test Method for Individual Piles Under Static Axial Tensile Load
ASTM D3966 Standard Test Method for Deep Foundations Under Lateral Load
Parameters:
| Item | Name | Details |
| 1 | Main host | Cable or Wireless connection |
| 2 | Data control box | 6channels or 12channels |
| 3 | Oil pressure sensor | 80MPa,Precision: 0.25%FS |
| 4 | Displacement transducer | Range:50mm Precision: 0.01 mm, |
| 5 | Curve | Q-S and S-lgt Curve |
| 6 | Wireless antenna | 3m, 485MHz, |
| 7 | Communication cable | 7cores, 30m |
| 8 | Testing distance | 30m with line;
up to 1500m wireless communication (wild area.) |
| 9 | Power | 220V / 380V 50HZ |
Features:
1. Adopt 10.4 inch color touchable and colorful LCD screen.
2. 24 bit high AD resolution.
3. Easy operation, even for normal simply trained workers can control whole sets.
4. Console is powered by 12V DC instead of 220v. It is more stability and anti-interference.
5. Real-time to show Experience information, Q-S curve, S-lgt Curve, Sensor displacement.
6. Clients can set difference grade, load number and reading number optionally.
7. Project testing and Data collecting is totally automatically: Auto Loading, Auto Pressure compensation, Auto Data reading, Auto Stability judgment and Data saving.
8. With auto alarm function for safety protection.
9. Sensor data can upload to console by wire or WIFI up to 1000m.
10. Wireless Channel upto 50. It supports multi sets (50sets) work at same time for a work situ.
11. Continually work automatically after power is suddenly off.
12. Displacement sensors can be installed with two methods, to pile or to beam.
13. Date output is by U disk.
