Slpt 6 Channels Static Load Test Equipment Auto Data Collection For Pile
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SLPT |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Slpt 6 Channels Static Load Test Equipment Auto Data Collection For Pile
Description
| Name: | Auto Static Pile Tester | Standard: | ASTM D3689/ D1143/ D3966 |
|---|---|---|---|
| Curve: | Q-S And S-lgt Curve | Data Control Box: | 6channels |
| Displacement Sensor: | 4pcs | Main Host: | Cable Or Wireless Connection |
| High Light: |
slpt static load test equipment, 6 channels static load test equipment, auto data collection pile testing equipment |
||
SLPT 6Channels Auto Data Collection Automatic Static Load Pile Test Equipment
Product Characteristic:
Automatically data collection: auto loading, auto charging pressure, auto reading, auto judging stability, and auto data saving.
Give alarm and protection automatically under emergency matter or after notice shown.
The displacement sensor waterproof level is IP68, can work in the water. And have two installation methods: to pile or to beam.
The testing information, Q~S curve, S~lgt curve, displacement and pressure data, all can be shown directly on the machine interface. The Q~S curve can show as single cycle or multi cycle in the analysis software.
JZA-R Analysis Software
Large 10.4” Touchscreen with high brightness LCD, can operate by hand or touch pen. For WIFI data transmission method, the distance can be up to 1000m.
| Item | Name | Details |
| 1 | Main host | Cable or Wireless connection |
| 2 | Data control box | 6channels or 12channels |
| 3 | Oil pressure sensor | 80MPa,Precision: 0.25%FS |

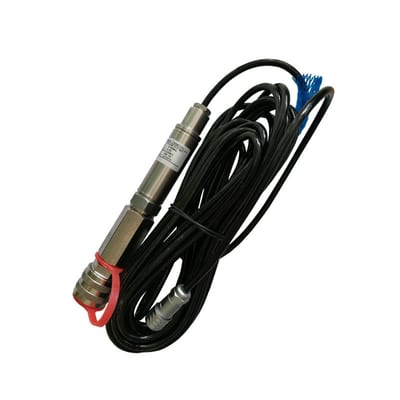

| 4 | Displacement transducer | Range:50mm Precision: 0.01 mm, |
| 5 | Curve | Q-S and S-lgt Curve |

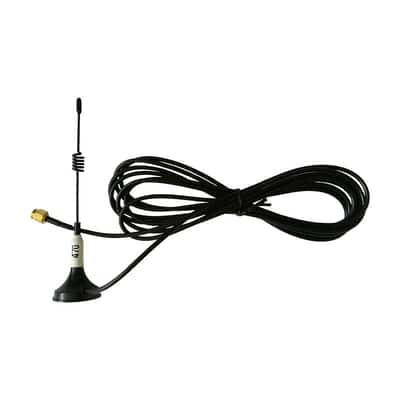

| 6 | Wireless antenna | 3m, 485MHz, |
| 7 | Communication cable | 7cores, 30m |
| 8 | Testing distance | 30m with line;
up to 1500m wireless communication (wild area.) |
| 9 | Power | 220V / 380V 50HZ |
