Smart Double Clamp Phase 12kW Va Meter Digital 500 Sets Data
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Model Number: | SY |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Category: Lab Testing Equipment
Description
| Name: | Phase Meter | Voltage Range: | A C 0.00V – 600V |
|---|---|---|---|
| Current Range: | A C 0.0mA – 20.0A | Phase Range: | 0.0° – 360.0° |
| Frequency Range: | 45.00Hz – 65.00Hz | Power Range: | 0.0W – 12kW |
| High Light: |
500 sets data va meter digital, smart phase va meter digital, 500 sets data digital va meter |
||

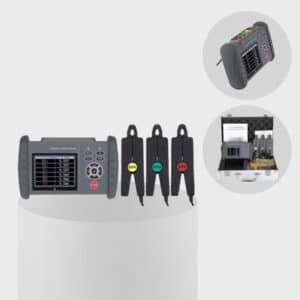

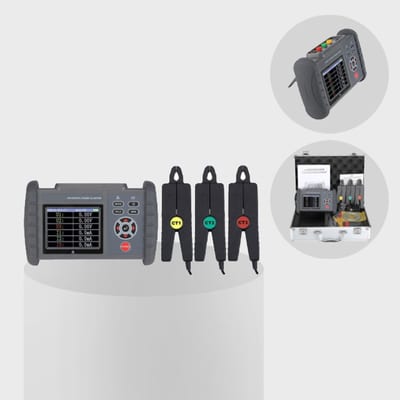

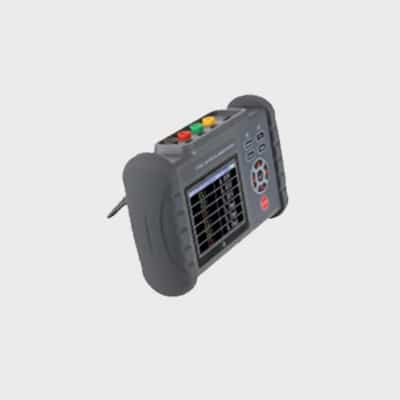

Smart Double Clamp Phase VA Meter
Specification
Smart double clamp phase voltmeter, is a high-quality, multi-functional, high-precision, intelligent, portable handheld measuring instrument designed for on-site measurement of voltage, current, power, power factor, frequency, and phase.
Applications
It has been widely used in energy metering, electricity inspection, power inspection, power meter and relay protection, differential detection, start-up test, industrial and mining enterprises, scientific research institutions and other departments.
It also has other measurement judgment functions, judge the inductive current and capacitive circuit, check the transformer wiring group, check whether the power meter is wired correctly. It is the ideal instrument for checking the use of power and performing secondary circuit inspection.
Parameters
F R 2010E+ Smart double clamp phase voltmeter is composed of a host, current clamp, and test line, and stores 500 sets of data at the same time, and has a data static storage function. With historical data read, consult, save, report, print and other functions.
| Voltage Range | A C 0.00V〜600V |
| Current Range | A C 0.0mA〜20.0A |
| Phase Range | 0.0°〜360.0° |
| Frequency Range | 45.00Hz〜65.00Hz |
| Active Power Range | 0.0W〜12kW |
| Reactive Power Range | 0.0W〜12k VA R |
| Apparent Power Range | 0.0W〜12k VA |
| Power Factor Range | -1〜+1 |
| Range Automatic Shift | |
| Color L C D Display | |
| With U S B Interface |
Pictures
