Solitax sc Filter Backwash Turbidity Sensor Package
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry

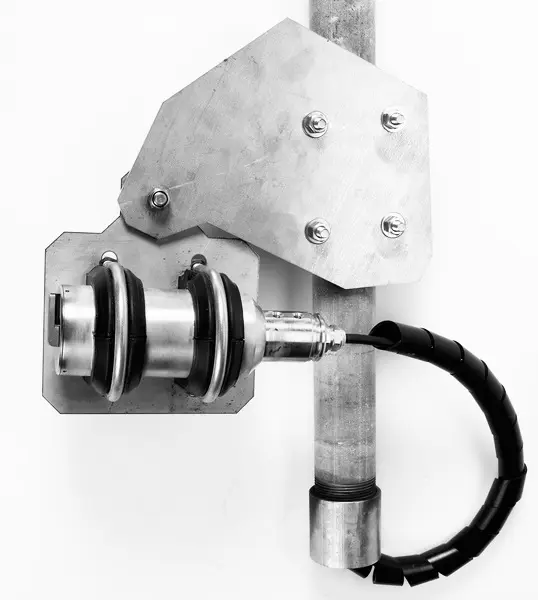

This package is for filter backwash applications at drinking water facilities. It includes a Solitax ts-line turbidity sensor and mounting hardware kit. The SC4500 digital controller must be ordered separately. The Solitax sc sensor measures real-time NTU values during the filter backwash process with a probe range of 0.001 to 4000 NTU. The mounting kit for the filter back wash application is designed to allow for probe placement directly in the filter trough or near the top of the bed for optimal measurement. The new hardware includes a handrail mount and quick release pole connections for an easy 30 minute installation. Please download the mounting instructions for more details. The Sensor connects directly to all Hach sc controllers for immediate use.
PROGNOSYS is now available to provide confidence in your instrument readings. PROGNOSYS will monitor and display the reliability of instrument measurement values and identify when upcoming maintenance tasks are due in an easy-to-read color display.
Benefits
Optimize Filter Backwash Processes
Using a Hach SOLITAX sc TS-line Turbidity Sensor to monitor filter backwash provides consistency in the wash process based on a real time turbidity measurement rather than on the subjective eye of an operator. The mounting kit allows the probe to be placed directly in the filter trough or near the top of the bed for optimal measurement.
Easy One-point Calibration
All SOLITAX sc probes are factory calibrated in conformity with DIN EN ISO 7027 for long-term calibration stability. Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. Multipoint calibration is available for nonlinear samples.
Self-cleaning Wiper Prevents Erroneous Values
The SOLITAX sc sensor’s self-cleaning wiper prevents erroneous values and maintenance problems by preventing biological growth. Gas bubbles in the sample do not interfere with the measurement.
Improve overall efficiency of the plant
Any two SOLITAX sc sensors can be installed using one HACH sc200 Controller. Helps improve filter backwash process, process control and reduce treatment costs.
Specifications
Technical Attributes
| Accuracy | Turbidity up to 1000 NTU: without calibration < 5% of the measured value ±0.01 NTU with calibration < 1% of the measured value ±0.01 NTU |
| Automatic Wiper | Yes |
| Cable Length | 10 m (optional extension cables available) |
| Calibration Method | Turbidity: Formazin or STABLCAL Standard (at 800 NTU). Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure. |
| Certifications | CE |
| Controller | Sensor only |
| Diameter Sensor | 60 mm |
| Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
| Length | 200 mm |
| Maintenance Interval | 1 h/month |
| Material | Optics Carrier and Sleeve: stainless steel 1.4571; Wiper Arm: stainless steel 1.4581; Wiper Rubber: silicone rubber (standard) Optional: FKM/FPM (LZX578); Wiper Shaft: stainless steel 1.4571 |
| Max. cable length Sensor-to-Controller | 100 |
| Measuring Principle | Infrared Duo scattered light technique for color-independent turbidity measurement Turbidity in accordance with DIN EN ISO 7027 / TS equivalent DIN 38414 |
| Measuring Range TSS | 0.001 mg/L – 50 g/L |
| Measuring Range Turbidity | 0.001 – 4000 NTU |
| Model | Solitax ts-line sc |
| Mounting | Immersion Immersion |
| Operating Temperature Range | 0 – 40 °C |
| Parameter | Suspended Solids, Turbidity |
| Pressure Range | < 6 bar |
| Repeatability | < 3 % |
| Repeatability Turbidity | < 1 % |
| Response Time T90 | 1 – 300 s adjustable |
| Warranty | 12 months |
| Weight Sensor | 1.8 |
| What’s included? | Solitax ts-Line Turbidity Sensor, User Manual, Backwash Filter Mounting Kit |
