Steaming rate measurement instrument

Use

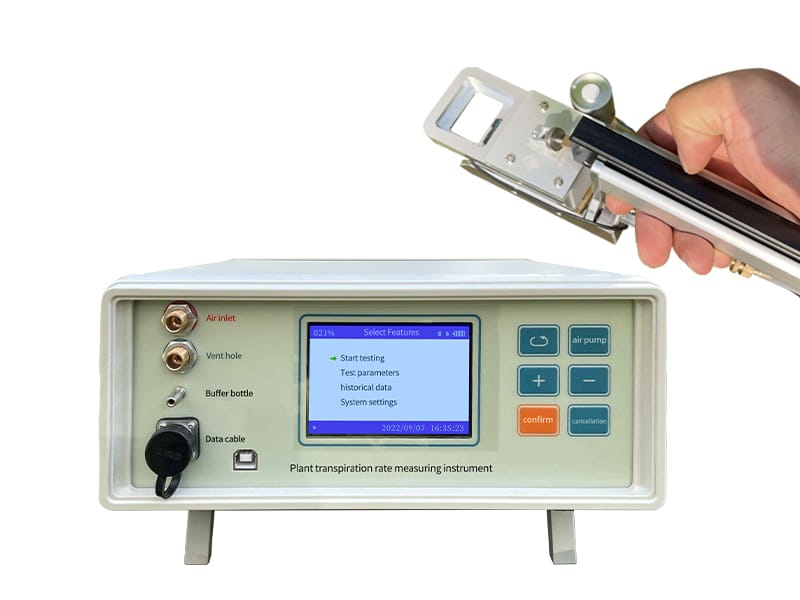

The HM-ZT20 plant transpiration rate measurement meter is a scientific research plant air hole meter measured by opening. It is used to measure the effects of various factors on the cavity behavior of the blades. It can be convenient, repeated, and accurately calculated to calculate stomach impedance, pores guidance and steam rate. It can also measure air temperature humidity, leaf temperature, and photosynthetic radiation. Water and physiological research is widely used in plant leaves, research on crop water utilization, water coercion hazards, and biological control effects.

Measurement principle：

Principle: According to the principle of circulation diffusion, measurement and calculation are measured by changes in the surface humidity of the plant blades

Measuring function：

Air temperature, humidity, flow, light -strong PAR, leaves temperature, humidity curve, steaming rate, stomatical guidelines, pore impedance, gas quality flow rate

Measurement unit: steaming rate (TR): mmolh2om-2.S-1

Poreid Guidance (GS): molh2om-2.S-1

Pole impedance (RS): SM-1

Accuracy: Steaming 1 to 5%, Guidance 5-10%

Technical parameter：

Leaf room temperature:

High-precision digital temperature sensor in Germany, the measurement range: -20-80 ° C, resolution: 0.1 ° C, error ± 0.2 ° C

Leaf temperature:

Platinum resistance, measurement range: -20-60 ℃, resolution: 0.1 ℃, error ± 0.2 ℃

humidity:

Swiss imported high -precision digital humidity sensor:

The measurement range is 0-85%, resolution: 0.1%, error ≤ 1%

Photosyal effective radiation (PAR):

Silicon light battery with a modified filter

Measurement range: 0-3000? Mol · m -2 · s-1, accuracy <? Mol · m -2 · s-1. Response wavelength range: 400 ～ 700nm

Micro electron flowmeter, the traffic is set arbitrarily within the range of 0.2-1L. Resolution: 0.0001L, zero drift: ± 0.005L

Power: Large -capacity DC8.4V charging lithium battery can work continuously for 20 hours at a time. (Different external light sources)

Data storage: memory 16g, extension to 32G

Data transmission: USB connection computer can export data directly

Display: 3.5 “TFT real color LCD screen color display, resolution 800 × 480, clearly visible in strong light

Key: Six keys, simple and convenient operation

Volume: 260 × 260 × 130mm

Weight: Host 3.25kg
