SY-5208D Petroleum Test Equipment Rapid Equilibrium Closed Cup Flash Point Tester 300W
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-5208D |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Closed Cup Flash Point Tester | Standard: | ISO 3679:2015 |
|---|---|---|---|
| Measuring Range: | -10℃~+100℃ | Temperature Resolution: | +/-0.1℃ |
| Igniting Device: | Electric Igniting Gun | Method: | Rapid Equilibrium Closed Cup Method |
| High Light: |
SY-5208D Petroleum Test Equipment, SAMYON Petroleum Test Equipment, 300W Closed Cup Flash Point Tester |
||

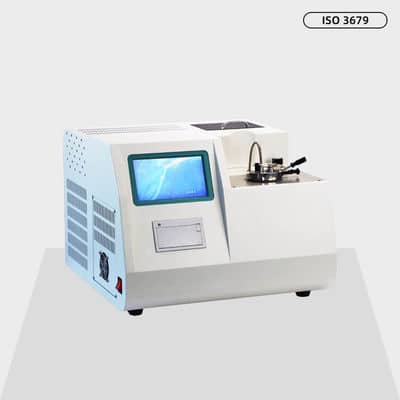

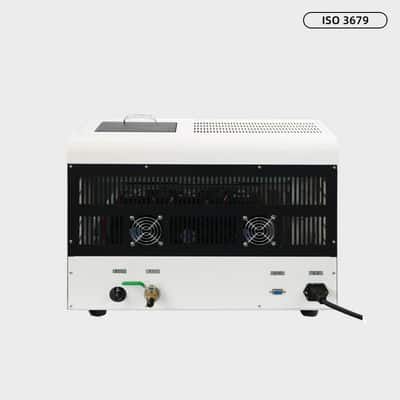

SY-5208D Rapid Equilibrium Closed Up Flash Point Tester
Application:
It is used to determine different kinds of colored paints, oil paints, adhesives, solvents and petroleum products which the closed cup flash point is 0℃~100℃. The SY-5208D is designed based on SY-5208, so the temperature range is larger. Test sample needed is less than 2ml for each time (4ml for solid sample and semi-solid sample). The testing method is as ISO1523 and ISO3679 standard. So it can be widely used by internal customers.
Standard:
ISO 3679:2015 Determination of flash no-flash and flash point – Rapid equilibrium closed cup method
ISO 1523:2002 Determination of flash point – Closed cup equilibrium method
Parameters:
| Item | Name | Details |
| 1 | Igniting device | Electric igniting gun |
| 2 | Flash point measuring range | -10℃~+100℃ |
| 3 | Cooling mode | Semiconductor(with cold water cycle at external connection) |
| 4 | Precision of determination | it meets the standard GB/T 5208 |
| 5 | Temperature resolution | +/-0.1℃ |
| 6 | Igniting source | Gas, LPG (or other civilian fuels) |
| 7 | Ambient temperature | 5~30℃ |
| 8 | Maximum power consumption | 300W |
| 9 | Relative humidity | =<80% |
| 10 | Power supply | AC 220+/-10% V, 50Hz |
| 11 | Dimension | 490x520x390mm |
Features:
1. Test sample is less than 2ml for each time (solid sample and semi-solid sample will be 4ml)
2. The instrument adopts semiconductor refrigeration device and external water cooling device.
3. Designed as per ISO 3679:2015 Determination of flash point – Rapid equilibrium closed cup method. It can realize purpose rapidly and at low temperature.
4. The determination procedure is automatically completed except ignition. Test results can be printed automatically.
