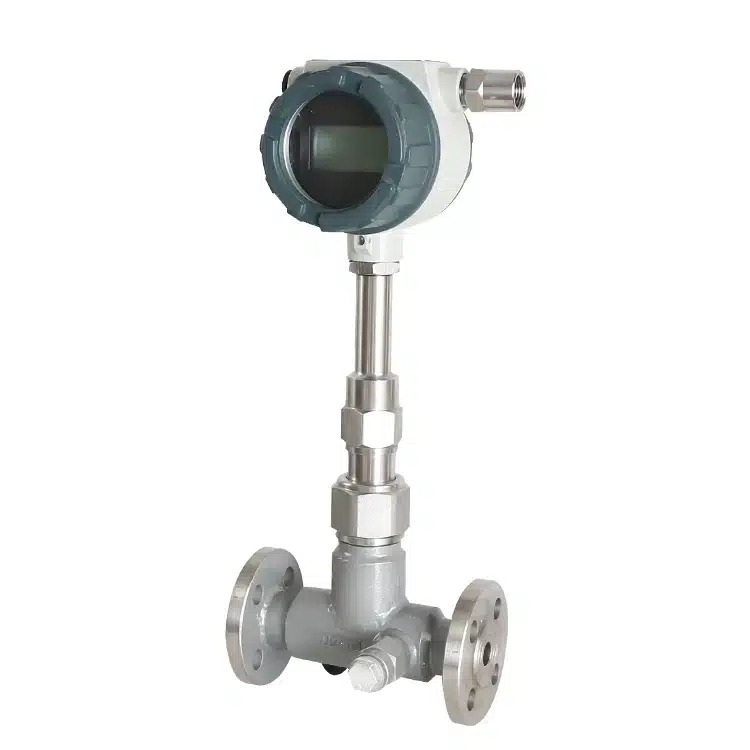

Target Flow Meter
1,520.00৳
Model:MTF
Measuring the flow of liquids and gases in industrial processes
Applications:
√Industrial Process Control
√Oil and Gas Production
√Chemical Manufacturing
√Water Treatment Plants
√Food and Beverage Processing
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
MTF is an intelligent target flowmeter blending traditional principles with modern sensor and digital technology for optimal performance. It inherits the benefits of traditional types like orifice plate and vortex meters, offering precision akin to positive displacement flowmeters. With no moving parts, unique anti-interference, and anti-impurity features, MTF stands out for its reliability. Widely applied in petroleum, chemical, energy, food, environmental protection, and water conservancy fields.
Product Features
- With no moving parts for safety and reliability in various applications.
- Utilizing dry calibration with the hanging weight method for accurate and hassle-free calibration.
- Diverse medium compatibility, suitable for liquids, gases, steam, viscous, and various fluid mediums under normal, high, or low-temperature conditions.
- Ultra-small flow measurement with high sensitivity for measuring ultra-small flows, detecting low velocities down to 0.8m/s.
- High precision with a total measurement accuracy of 0.2%, complemented by a wide measuring range of up to 1:30.
Product Specification
| Process fluid | Liquid; gas; steam | ||||||
| Medium temperature | -196℃～+450℃(Determine the temperature range when ordering) | ||||||
| Nominal diameter (mm) | Pipe type
15～300 |
Clamp on type
15~600mm |
Insertion type
100~2000mm |
||||
| Nominal pressure | 0.6~42MPa | 0.6~42MPa | 0.6~42MPa | ||||
| Accuracy | ±0.2% | ±0.5% | ±1.0% | ±1.5% | ±2.5% | ||
| Power supply | lithium battery (3.6V); external power supply 24VDC | ||||||
| Output signal | 4 ~20mA; pulse;1-10V; RS485/RS232; HART;Site value display; | ||||||
| IP rating | IP65,IP67,IP68 | ||||||
| Explosion-proof grade | ExibIICT4;ExdIICT4 | ||||||
Product Dimensions
