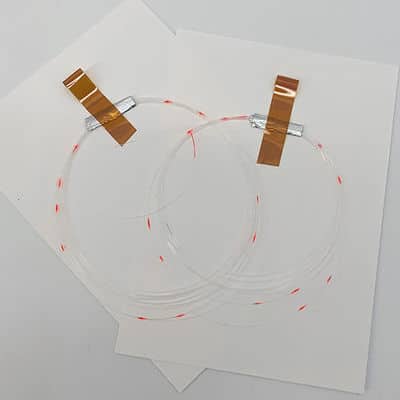

Telecommunication Fiber Bragg Grating Sensors FBG Array 1460nm 1610nm
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | FBGARRAY |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Product Name: | Fiber Bragg Grating Sensor | Central Wavelength: | 11460nm -1610nm /1650nm/980nm |
|---|---|---|---|
| Application: | Temperature Sensor | Usuage: | Strain Gauge/ Pressure Sensor |
| Fiber Type: | Corning / Fiber Core | Package Material: | Ceramic / Stainless Steel Capillary / Quartz Tube |
| Recoating: | Aorylate Or Polyimide | Temperature: | Max1000 Celsius Degree |
| High Light: |
Fiber Bragg Grating Sensors, 1460nm FBG Array, 1610nm FBG Array |
||
Fiber Bragg Grating Sensor FBG Array Wavelength 1460nm 1610nm
FBG Sensor is one of the uppermost inventions in the 90’s, 20th century. FBG is a passive optical devices, with good reliability, high measurement precision, resistance to electromagnetic interference and anti-lightning characteristics. Adopting 11460nm -1610nm (usually1,525~1565nm) wave band grating and grating apodization combination technique.
SAMYON can supply different kinds of FBG : High Refletivity 99% Bared Fiber Bragg Grating, Multi fiber bragg grating arrays on single optical fiber , Phase Shift Fiber Grating, Long Period Fiber Grating, Chirped Fiber Grating, Blazed Fiber Bragg Grating, Althermal Packaged FBG, Low refletivity FBG 0.1% and Femto FBG which can bear Max1000 Celsius Degree.
Based on different industrial application, Bared FBG or FBG arrays are been packaged into variable sensors: Temperature sensor with ceramic, Stainless steel tube, 2mm diameter Stailess Steel Capillary, small diameter Quartz tube; Strain gauge with surface mounted plate type, Re-useage stainless steel tube type , sticked in steel bar type, diamond type,etc; Displacement Sensor; Pressure sensor for water , soil and gas; Level Meter, and so on. The Bared FBG also without packaged also can be used for above application to increase its sensitivity.
Application:
- Telecommunication, Lasers and sensors, filter
- Wavelength Division Multiplexing Transmission System
- High tensile resistance and anti-electromagnetic interference
Feature:
High stability and reliability Length customized grating High Reflectivity
Technical specification:
| Parameter | Unit | Values |
| Center Wave length | nm | 1460nm- 1610nm |
| Wavelength Tolerance | nm | +/-0.2 |
| FBG length | mm | 1-15 |
| Reflectivity | 5%-99% | |
| Bandwidth at 3dB | nm | 0.1- 1 |
| SLSR | dB | ≥15 |
| Recoating | — | Aorylate or Polyimide |
| Fiber type | — | SMF-28e or Polyimide Fiber |
| Fiber termination | — | Bare Fiber, FC/UPC, or FC/APC |
| Pigtail length | m | 2 (typical ) |
| Operating Temp. | ℃ | SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80 |
| Storage Temp. | ℃ | SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80 |
| Proof test | kpsi | ≥100 |
