Total Organic Carbon Analyzer

Product Introduction

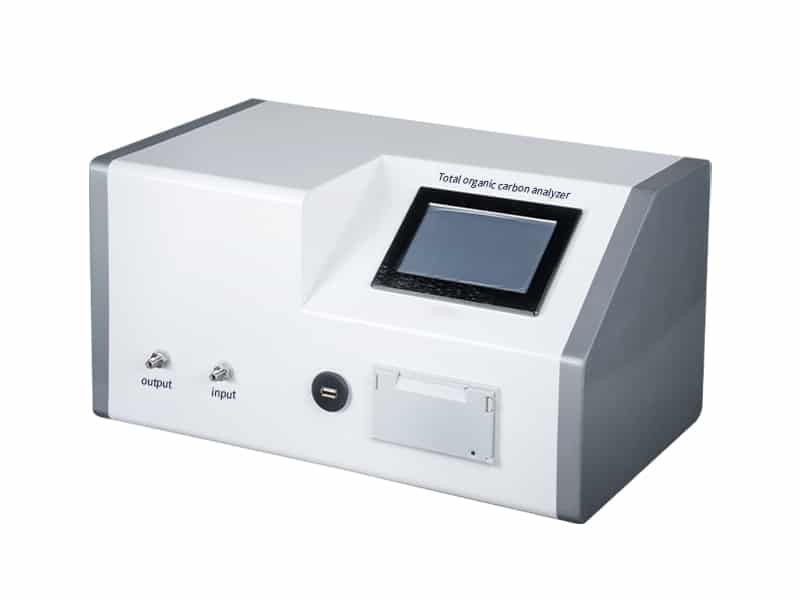

HM-TOC2 Total Organic Carbon Analyzer is an instrument specially used for online detection of total organic carbon in deionized water such as purified water, water for injection, and ultrapure water. The instrument can be controlled by the machine itself or by software installed on the computer, and data analysis and processing can be performed. It has more complete functions, rich display content, convenient data query, and simple operation.

Performance characteristics

1. The instrument is waterproof and dustproof.

2. Computer port operation, one port can control multiple detection units.

3. It has functions such as electronic signature and audit tracking.

4. UV lamp and peristaltic pump are easy to observe and maintain.

5. Disassembly-free design is convenient for observation and maintenance of working conditions.

Technical parameters

Power supply: (100-240) VAC 50/60Hz

Power: 100W

Indication error: ±3

Repeatability: RSD≤3%

Detection range: (0-1600.0) μg/L

Dimensions: 45 cm long, 25 cm wide, 22 cm high

Water sample required conductivity range: (0-5) μS/cm@25℃

Sample temperature: (1-95)℃

Ambient temperature: (10-60)℃

Signal output: 485:4-20mA.

Application areas

1. Detection of total organic carbon concentration in purified water, water for injection and high-purity water in the pharmaceutical industry;

2. Detection of TOC in ultrapure water in the semiconductor industry, power plants, scientific research units, pharmaceutical industry, chemical industry, etc.;

3. Online monitoring of water production systems in the pharmaceutical industry, ultrapure water preparation systems and chip process in the semiconductor industry, deionized water preparation processes in power plants, etc.
