Triplex Low Pressure Single-Lever Consolidation Apparatus For Compression Soil Test
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | WG |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Consolidometer | Standard: | GB/T 50123-2019 |
|---|---|---|---|
| Low Pressure Load: | 12.5 – 400kPa/50cm2 | Type: | Triplex Low-Pressure |
| Specimen Area: | 30cm2 And 50cm2 | Structure: | Full Steel |
| High Light: |
Single-Lever Consolidometer, Low Pressure Consolidation Apparatus, Triplex Consolidation Apparatus |
||

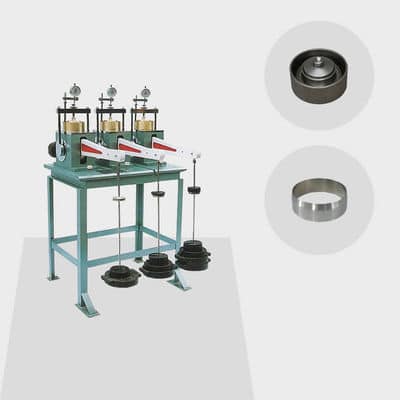

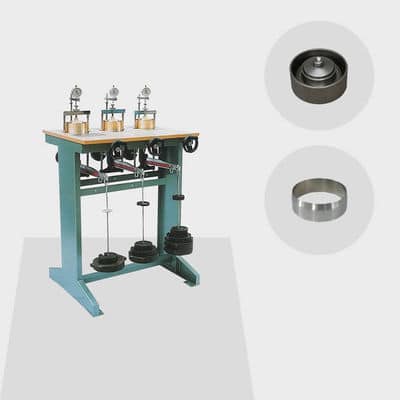

WG Single-Lever Consolidometer (Triplex Low-Pressure)
Application:
The Triplex Low-Pressure Consolidation Apparatus is used for compression test of the soil, to calculate the soil unit sedimentation, compression index, rebound index as well as consolidation coefficient of the soil etc. With lever ratio 10:1 an 12:1, the low pressure load for specimen area 30cm2 and 50cm2 will be 12.5kPa to 800kPa/30cm2, and 12.5kPa to 400kPa/50cm2
Standard:
GB/T 50123-2019 Standard for geotechnical testing method
SL237-1999 Specification of soil test
JTG E40-2007 Test methods of soils for highway engineering
Parameters:
| Item | Names | Details |
| 1 | Low pressure load | 12.5kPa – 800kPa/30cm2, 12.5kPa – 400kPa/50cm2 |
| 2 | Lever ratio | 10:1 and 12:1 |
| 3 | Specimen area | 30cm2, 50cm2 |
| 4 | Structure | Full steel |
| 5 | Consolidation container | 3sets(stainless steel, anti-corrosion, no leakage) |
Features:
1. It is the main conventional test instrument for the current geotechnical testing
2. It has the new design structure and better function
