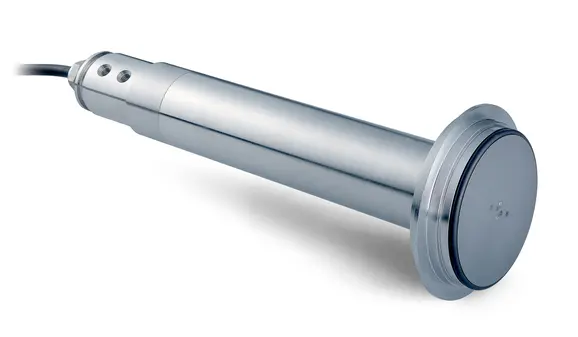

TSS Vari sc Turbidity and Suspended Solids Inline probe, Stainless Steel
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Turbidity and suspended solids probe for use in VARIVENT® piping systems
The TSS Vari sc is a digital process probe for the extremely accurate in pipe measurement of turbidity and suspended solids specially designed for use in food and pharmaceutical sectors. This in pipe probe is installed by Varivent access unit and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS Vari sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of polished stainless steel with a scratch resistant and easy to clean sapphire window design to withstand harsh environments.
Please contact Hach for further information. Request for a quote today!
Benefits
Unique Multi-Beam Pulsed Infrared Light System
TSS sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids.
Automatic Compensation for Air Bubbles and Temperature Swings for Accuracy
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Standard Compliant and Precise – Ease of Calibration
The turbidity measurement complies with the standard DIN EN 27027 (ISO 7027). Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. For special applications, curves can be defined using several calibration points.
Compatible with Hach SC controller platform
Measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
Two parameters in one instrument–Suspended Solids and Turbidity
Specifications
Technical Attributes
| Accuracy | Turbidity up to 1000 NTU: < 5% of the measured value ±0.01 NTU |
| Ambient Temperature | 0 – 60 °C (briefly 80 °C) |
| Application | Varivent piping systems |
| Automatic Wiper | No |
| Cable Length | 10 m (optional extension cables available) |
| Cable Length | 10 m (optional extension cables available) |
| Calibration | Turbidity (TRB): Factory calibrated Solids (TS): To be calibrated by customer on site Zero point: Permanently calibrated in the factory |
| Calibration Method | Turbidity (TRB): Factory calibrated Solids (TS): To be calibrated by customer on site Zero point: Permanently calibrated in the factory |
| Controller Compatibility | SC200, SC1000, SC4500. All controllers sold separately |
| Diameter | 40 mm |
| Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
| Includes | Turbidity & Suspended Solids sensor, user manual |
| Installation style | Varivent Measuring tube |
| Length | TSS VARI sc 232 mm |
| Maintenance Interval | 1 h/month |
| Material | Gasket: FKM; Wiper: PA (GF), TPV |
| Max Temperature | 80 |
| Measurement Method | Combined multiple beam alternating light method with infrared diode system and beam focusing <span class=”italic”>Turbidity (TRB): 2-channel 90º scattered light measurement in accordance with DIN EN ISO 7027, wavelength = 860 nm <span class=”italic”>Solids (TS): 90º and 120º scattered light measurement, wavelength = 860 nm |
| Measuring Principle | Combined multiple beam alternating light method with infrared diode system and beam focusing Turbidity: 2-channel 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027, wavelength = 860 nm Solids: Modified absorption measurement; eight-channel multiple-angle measurement, wavelength = 860 nm |
| Model | TSS Vari sc |
| Mounting Configurations | VARIVENT |
| Operating Temperature Range | 0 – 80 °C |
| Parameter | Turbidity, Suspended Solids |
| Pressure Range | <16 bar or <160 m |
| Range | Turbidity (TRB): 0.001 – 9999 NTU Solids (TSS): 0.001 – 500 g/L |
| Repeatability | TSS content: < 4 % Turbidity: < 3 % |
| Response Time | 1 s < T90 < 300 s (adjustable) |
| Response Time T90 | 1 – 300 s adjustable |
| Special Notes | Installation note: Distance sensor–wall > 50 cm (Turbidity) > 10 cm (TSS) |
| Weight | approx. 1.5 kg |
| What’s included? | Turbidity & Suspended Solids sensor, user manual |
