Turbidity detector

Introduction:

Hengmei’s new optical turbidity sensor, fiber optic sensing technology, adopts the 90° scattered light measurement principle, complies with ISO7027 international standards, customized optical devices, small size, easy installation and maintenance, not easily disturbed by ambient light, and has better repeatability and stability. Make turbidity measurement more accurate, more stable, faster and more convenient.

With backlit display and operation keyboard, comprehensive functions and simple operation, simple interface, automatic recognition of turbidity fiber optic sensor, reading and storage of measurement data, sensor calibration and other functions, and USB data export to achieve more high-end functions. The pursuit of high cost performance is our consistent pursuit.

It has a wide range of applications and can be used for water quality detection in multiple scenarios such as surface water, sewage, seawater, tap water, etc. to meet customer needs.

Features:

Digital sensor, RS-485 output, standard Modbus;

Strong anti-interference ability, not affected by ambient light and chromaticity;

90° scattered light principle;

Sapphire optical window.

Parameters:

Measurement principle: 90° light scattering method

Range: 0.1~1000 NTU

Accuracy: <5% or 0.3NTU

Protection level: IP68

Maximum operating pressure: 6 bar

Temperature range: 0 ~ 50℃

Sensor interface: Support RS-485, MODBUS protocol

Power information: DC 5~12V, current <50mA

Sensor size: Φ22mm*175.5mm

Thread model: M22*1.5

Assembly: Submersible/flow-through installation

Probe cable length: 10 meters (default), customizable

Sensor material: 316L/Ti

Calibration: one-point or two-point calibration

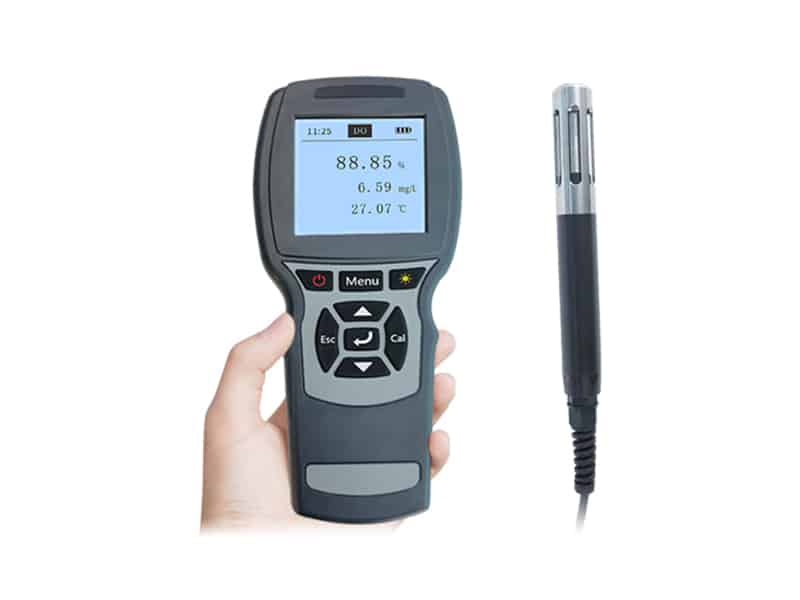

Multi-function handheld meter features:

1. One machine for multiple uses, supports a variety of Hengmei digital sensors

2. Built-in air pressure sensor, which can automatically compensate for dissolved oxygen

3. Automatically identify the sensor type and start measuring

4. Simple and easy to use, no instructions are required, and you can operate it freely

Handheld meter parameters:

1 Size: 220 x 96 x 44mm

2 Weight: 460g

3 Power supply: 2 18650 rechargeable batteries

4 Operating temperature range: 0~50℃

5 Storage temperature range: -40~85℃

6 Display: 54.38 x 54.38LCD with backlight

7 Data storage: Support

8 Air pressure compensation: Built-in instrument, automatic compensation 50~115kPa

9 Protection level: IP67

10 Timed shutdown: Support

Configuration:

Handheld instrument: 1

Optical electrode: 1, 5m, optional cable length

18650 rechargeable battery: 2, 3.7V

USB cable: 1, Micro USB

Wrist strap: 1

Screwdriver: 1, used to open the battery cover

O-ring: 1, fluorescent cap sealing spare part

Sponge: 2, fluorescent cap moisturizing

Rubber cover: 1, fluorescent cap preservation
