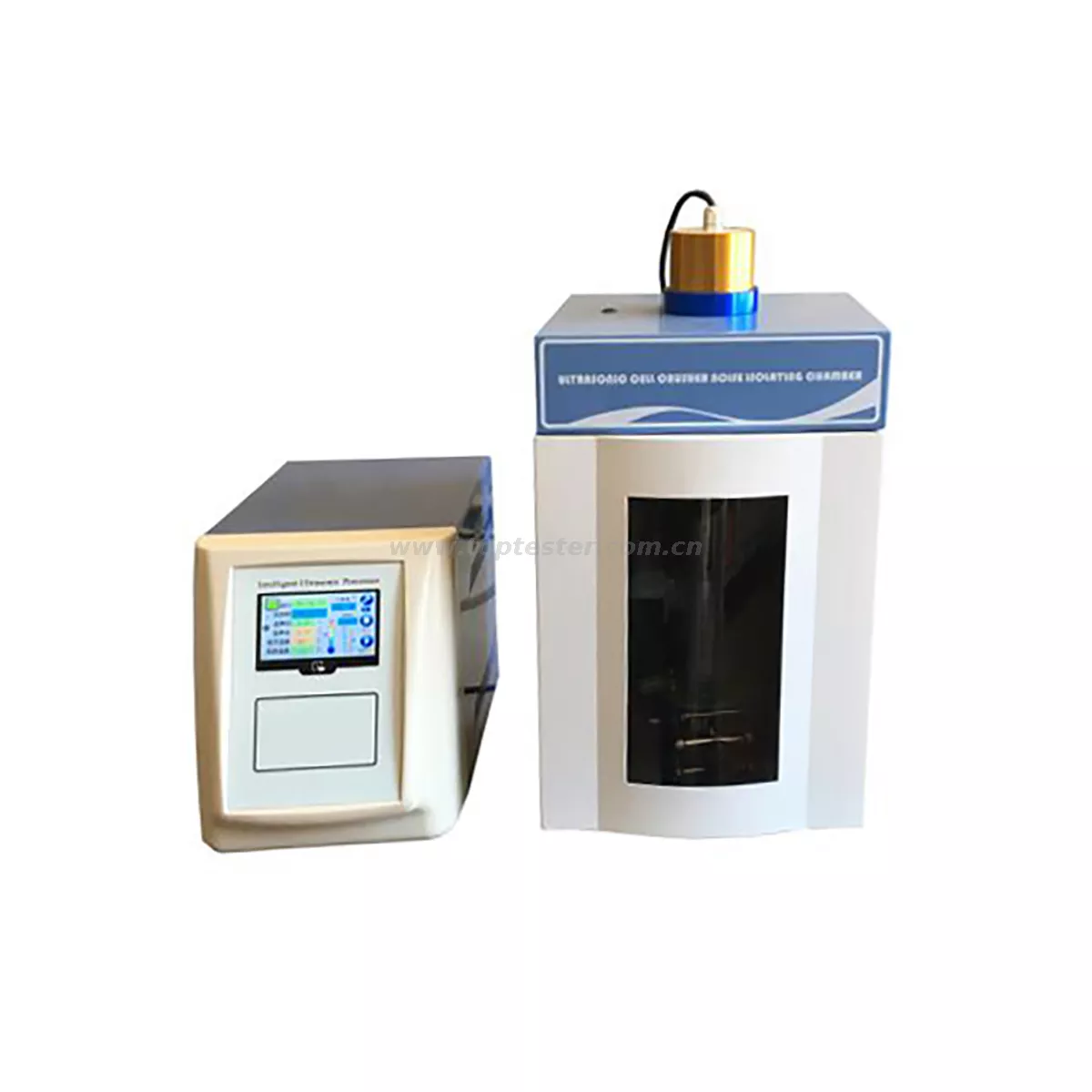

Ultrasonic cell crusher (pulverizer) TP92-IIDN

Ultrasonic cell crusher (pulverizer) is a multi-functional, multi-purpose instrument that uses cavitation to generate cavitation effects in liquids and ultrasonically treats substances. It can be used for the crushing of various animal and plant cells and virus cells. It can also be used to emulsify, separate, homogenize, extract, defoam, clean and accelerate chemical reactions. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.

The instrument has full functions, beautiful appearance and reliable performance. The instrument adopts large-screen display, central computer centralized control, ultrasonic time, power setting, sample temperature detection display, frequency microcomputer tracking, fault automatic alarm. All functions are displayed in the 4.3-inch TFT touch screen.

Technical parameter

◆   Display mode: 4.3 inch TFT touch screen display, optional 7 inch full touch screen
◆   Single ultrasound time: 0.1-9.9S
◆   Single gap time：0.1-9.9S
◆   Total working time：1-999M
◆   frequency：20-25KHz
◆   power：10- 900W（1%-99%）Adjustable
◆   Breaking capacity：0.2-600ML(Need to match the corresponding horn)
◆ Temperature control range：Room temperature – 90 degrees (optional low temperature constant temperature）
◆   Alarm functions: temperature, time, overload, no load

◆   Random horn：Φ6
◆   Optional horn：Φ2、3、8、10、12、15
◆  Duty cycle：0.1-99.9%
◆   Power supply：220V±5%/ 50Hz（customizable 110V）
◆   Power box + transducer weight：16kg
◆   Power supply case size and net weight：40×28×22（CM）;14kg
◆   Characteristics：The PWM is used to control the switching power supply, the power is continuously adjustable, the stability is good, and 50 sets of experimental parameters can be stored.
