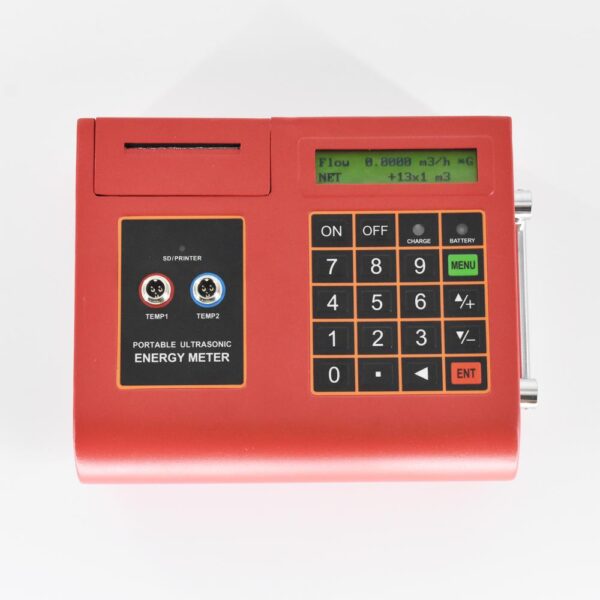

Ultrasonic Flowmeter with Temperature/Heat Meter TUC-2000E built-in Printer
1,520.00৳
Model No.︰
TUC-2000E
Brand Name︰
AERMANDA
Country of Origin︰
China
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Main features of the heat meter:
1. Non-invasive clamp-on series transducer and Insertion Series transducer are available. Internally configured batch;
2. controller makes batch control convenient and accurate. No moving parts, no pressure drop;
3. no need of maintenance. Easy and economical installation;
Applications:
1. Measuring heat flow;
2. Sewage and drainage water with small particle quantity. Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc.
3. Beverage and food processors hot and cool water, water /glycol solutions;
4. Water and waste treatment Power plants, heat energy boiler feed water;
5. Energy consumption supervision and water conservation management;
6. Metallurgy and miming applications (e.g., acid recovery);
7. Marine operation and maintenance;
8. Pulp and paper industries Pipeline leak detection;
9. inspection, tracking and collection Energy measurement and balancing.
General Specifications:
| Items | Specifications |
| Main unit | 2 line x 20 character LCD with backlight
Working temperature: -25–60°c |
| Mini thermal printer with 24 line character output | |
| 4×4+2 pushbutton keypad | |
| RS-485 interface for networking | |
| Ultrasonic Transducer options | TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110°c |
| TM-1:medium size transducer (magnetic) for pipe size:DN50-700mm, liquid temperature ≤110°c | |
| TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110°c | |
| Temperature Transducer | Three wire pt100 platinic resistance,
measuring range :-50 —–180°c measuring accuracy:100°C, 0.8°c , the temperature difference ≤0.1°C |
| Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
| Flow velocity range | 0- ±30m/s |
| Accuracy | Better than ±1% |
| Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or
AC 220V |
| Power Consumption | 1.5W |
| Charging | Intelligent charging with AC 220V; After charging sufficiently, it automatically stop and display green light |
| Weight | Net weight: 2.5kg (main unit) |

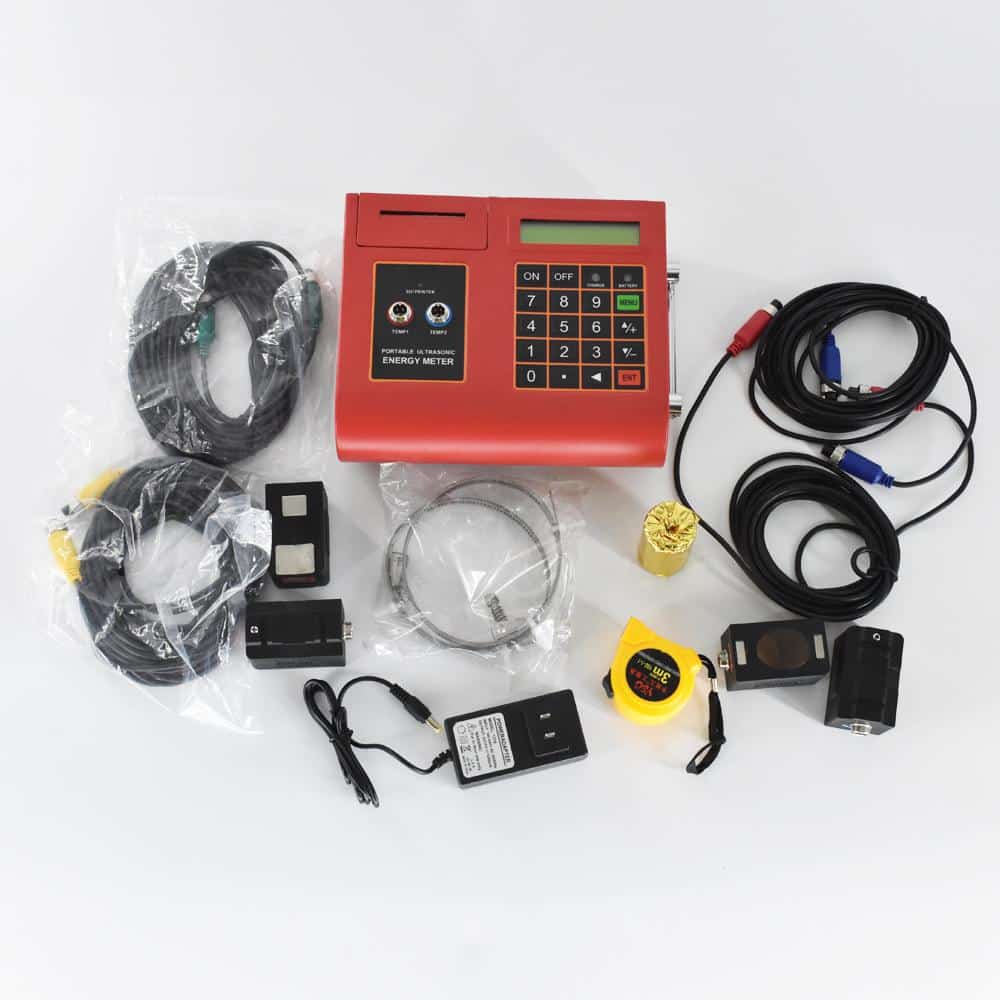

Standard Packing:
1. TUC-2000E Ultrasonic Flowmeter with Temperature/Heat Meter
2. TM-1 Transducer
3. Temperature Transducer CT-1
4. Signal cable
5. Data cable
6. Fixed chain
7. Charger
8. Ruler
9. Printing paper
10. Carring box
