Vortex Mixer Shaker Machine
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
-
Product name:Vortex Mixer
-
Keyword:Lab Mixers
-
Size:127*130*160mm
-
Color:Grey
-
Material:Plastic
-
Certification:CE
-
Application:Lab Research
-
Single package size:20X20X20 cm
-
Single gross weight:4.0 KG

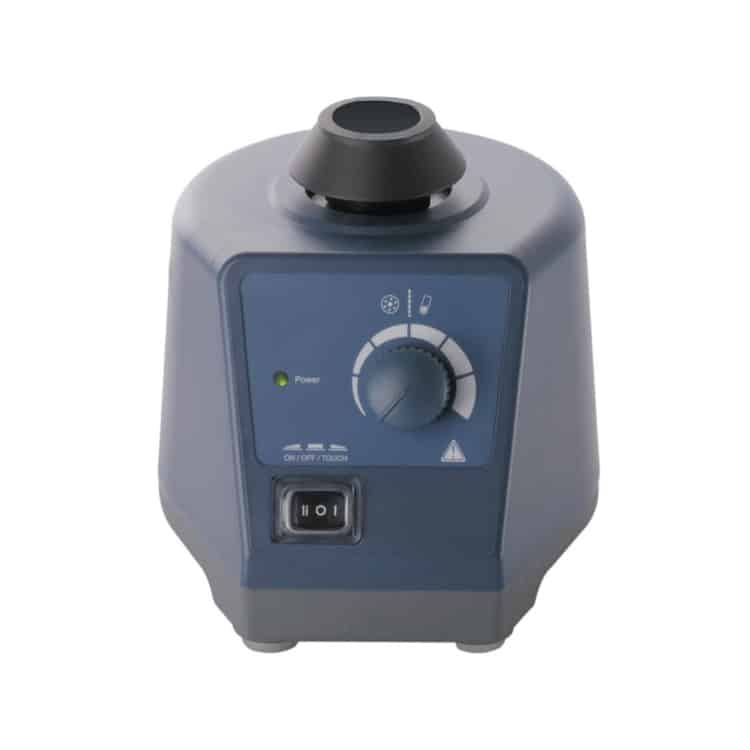

MX-S
Key Features
• Touch operation or continuous mode
• Variable speed control from 0 to 3000rpm
• Used for various mixing applications with optional adapters
• Specially designed vacuum suction feet for body stablility
• Robust aluminum-cast construction
MX-E
Features:
• For small amount of sample mix;
• Touch operation;
• Fixed speed: 3000rpm;
• Small and beautiful;
• DC brushless motor, stable performance.

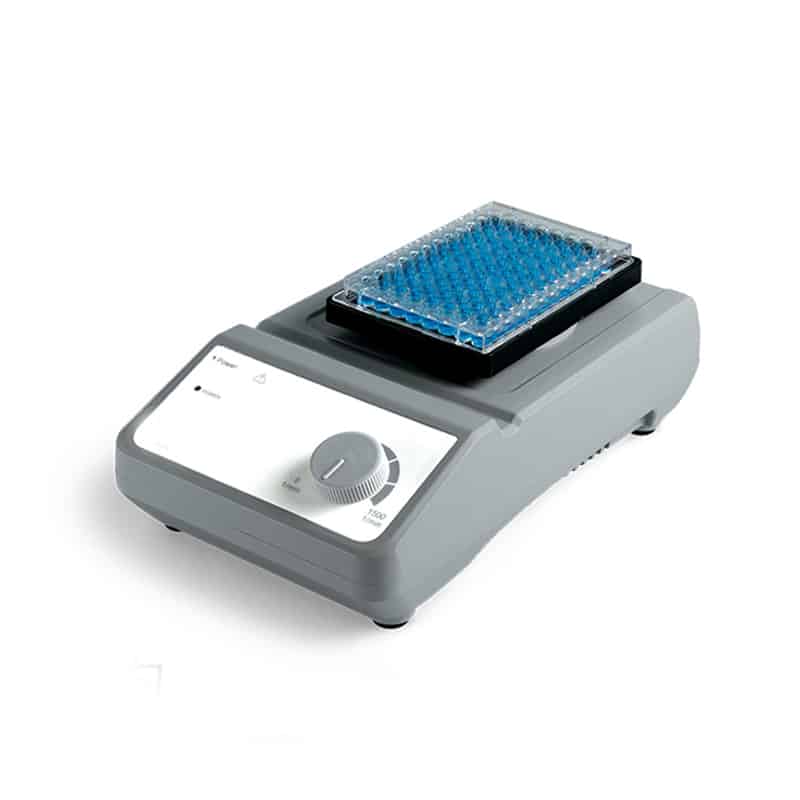

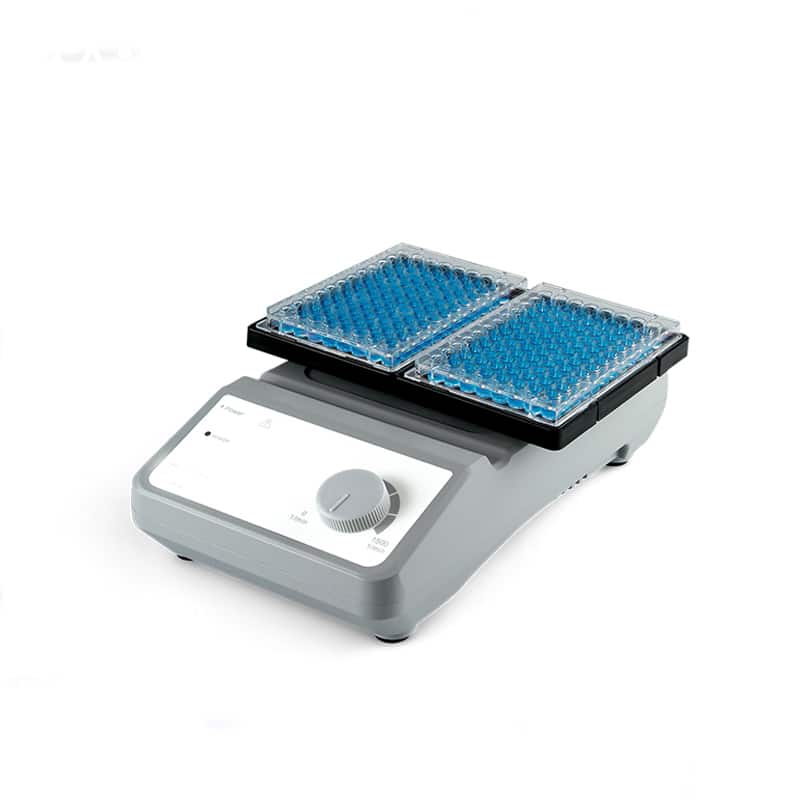

MX-M
Key Features
• A wide range of speed from 0 to 1500rpm
• Used for various mixing applications with optional adapters
• Maintenance-free brushless DC motor
| Specifications | MX-S (Adjustable speed) |
MX-E | MX-M |
|---|---|---|---|
| Voltage | 110-120V/220-230V,50/60Hz | 100-240V | 100-240V |
| Power | 60W | 12W | 20W |
| Mixing motion | Orbital | Orbital | Orbital |
| Orbital diameter | 4mm | 4.8mm | 4.5mm |
| Motor type | Shaded pole motor | – | Brushless DC motor |
| Motor rating input | 58W | – | 18W |
| Motor rating output | 10W | 10W | 10W |
| Speed range | 100-3000rpm | 3000rpm | Single microplate: 0-1500rpm Double microplate: 0-1000rpm |
| Speed display | Scale | Scale | Scale |
| Run type | Touch operation/Continuous | – | – |
| Dimension[W×H×D] | 127×130×160mm | 133×133×80mm | 260×150×80mm |
| Weight | 3.5kg | 0.6kg | 3kg |
| Permissible ambient temperature | 5-40 °C | 5-40 °C | 5-40 °C |
| Permissible relative humidity | 80%RH | 80%RH | 80%RH |
| Protection class | IP21 | IP21 | IP21 |
| Accessories of Vortex Mixer | |
|---|---|
| P/N | Descriptions |
| VT1.1 | Standard top cup，for |
| VT1.2 | Tube holding rod, used with VTI.3.1 to VTI.3.5 |
| VT1.3 | Universal top plate，100mm plate attachment , free of Rubber vacuum suction foot (18900158, 4pcs) |
| VT1.3.1 | Tube adapter, for 48 holes test tubes, Ø6mm, used with VT1.3/ VT1.2/PS1.1 |
| VT1.3.2 | Tube adapter, for 15 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1 |
| VT1.3.3 | Tube adapter, for 16 holes test tubes, Ø12mm , used with VT1.3/ VT1.2/PS1.1 |
| VT1.3.4 | Tube adapter, for 8 holes test tubes, Ø16mm, used with VT1.3/ VT1.2/PS1.1 |
| VT1.3.5 | Tube adapter, for 8 holes test tubes, Ø20mm, used with VT1.3/ VT1.2/PS1.1 |
| VT1.3.6 | Platform pad, for <99mm tubes and small vessels |
| VT1.3.7 | Rubber vacuum suction foot with screw, 1pc |
MX-E
| Cat. No. | P/N | Descriptions | Power supply |
|---|---|---|---|
| 8031211000 | MX-E | Vortex Mixer (Fixed speed) | USA plug,100V-220V/50Hz/60Hz |
| Vortex Mixer (Fixed speed) | Cn plug,100V-220V/50Hz/60Hz | ||
| Vortex Mixer (Fixed speed) | Euro plug,100V-220V/50Hz/60Hz | ||
| Vortex Mixer (Fixed speed) | UK plug,100V-220V/50Hz/60Hz |
MX-M
| Cat. No. | P/N | Descriptions | Power supply |
|---|---|---|---|
| 8031202000 | MX-M | Microplate Mixer inlcude Microplate clamp, 18900042(package contain the box) | USA plug,100V-220V/50Hz/60Hz |
| Cn plug,100V-220V/50Hz/60Hz | |||
| Euro plug,100V-220V/50Hz/60Hz | |||
| UK plug,100V-220V/50Hz/60Hz |
| Accessories of Microplate Mixer | |||
|---|---|---|---|
| Cat. No. | P/N | Descriptions | |
| 18900067 | PS1.1 | Universal top plate(round)，used with VT1.3.1–5 | |
| 18900020 | VT1.3.1 | Tube adapter, for 48 holes test tubes, Ø6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1 | |
| 18900021 | VT1.3.2 | Tube adapter, for 18 holes test tubes, Ø10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1 | |
| 18900022 | VT1.3.3 | Tube adapter, for 12 holes test tubes, Ø12mm (2-7ml) , used with VT 1.3/ VT 1.2/PS1.1 | |
| 18900023 | VT1.3.4 | Tube adapter, for 8 holes test tubes, Ø16mm (4-15ml), used with VT 1.3/ VT 1.2/PS1.1 | |
| 18900024 | VT1.3.5 | Tube adapter, for 8 holes test tubes, Ø20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1 | |
| 18900042 | PS1.2 | Microplate clamp | |
| 18900079 | MXM-116 | Double microplate clamps | |
Shipping Information
Out Of Dhaka: 1–3 working days for most locations within Bangladesh and cost only ৳120 TAKA.
Know more details.
Return Policy
You may return items purchased from Meter BD Shop within 7 days of receiving the product.
To be eligible for a return, the product must meet the following conditions:
1. Unused, 2. In the original packaging & 3. Proof of purchase.
