WT210/GM210 Film Coating Thickness Gauge

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Category:
Description

Product Description

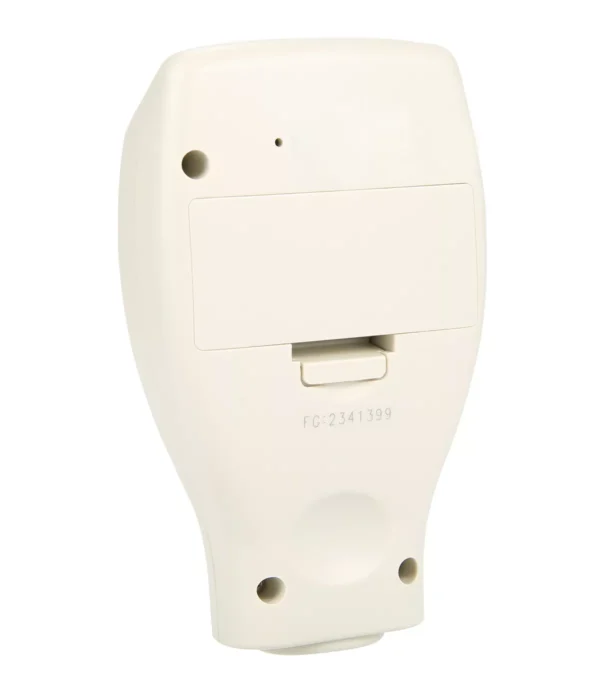

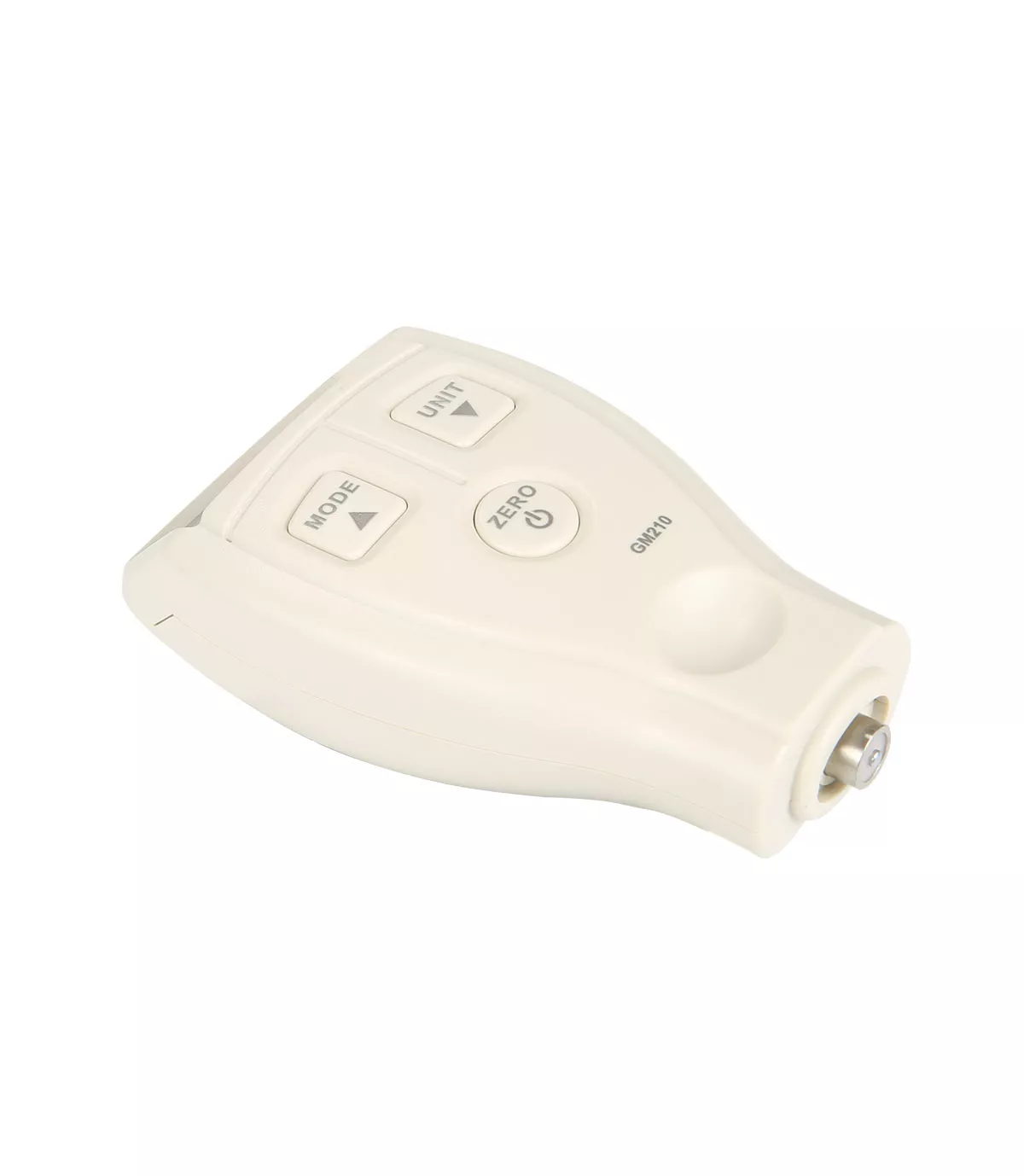

This product is a portable coating thickness gauge for fast,accurate and nondestructive measurement of the thickness of non-magnetic coatings (such as paint, electroplated coating and film) on magnetic metal substrates. This product has seen wide application in manufacture, metal working, chemical industry,commodity inspection and other fields

Features

Film/Coating Thickness Gauge possesses the following features:

1. Thickness measurement of non-magnetic surface coatings on magnetic metal substrates
2. Single measurement, continuous measurement and differential measurement available
3. Zero-point calibration, 2-point calibration and basic calibration available
4. Metric and imperial units of measurement optional
5. LCD backlight
6. Automatic shutdown

Specification

WT200A WT210 WT211
Measurement ranges 0-1.80mm/0-71.0 mil 0-1800µm/0-70.9 mil 0-1500µm/0-59mil/0-1.5mm
Resolution 0.05mm/2mil(Car)

0.01 mm/1 mil(User)

0.1 µm/1 µm/0.1 mil (0.1 µm, 1 µm)/0.1 mil/0.001 mm
Measurement error ±0.1mm ±(3%H+1µm) ≤150µm ±5µm

>150µm ±(3%H+1 µm)

Min. diameter of substrate 50mm 12mm 12mm(Magnetic)

50mm(Non-magnetic)

Min. thickness of substrate 0.5mm 0.5mm 0.5mm(Magnelic) 50mm(Non-magnetic)
Operating temperature range 18-30℃ 0-40℃ 0-40℃
Work humidity range 10-80%RH 10-95%RH 10-95%RH
Power supply 2*1.5V AAA battery 2*1.5V AAA battery 2*1.5V AAA battery

Accessories

Host*1
Calibration sheet*6
Iron base*1
Aluminum base*1
Instructions*1
Color box*1

PP box*1

Application

WT200A 210 211-2.jpg
