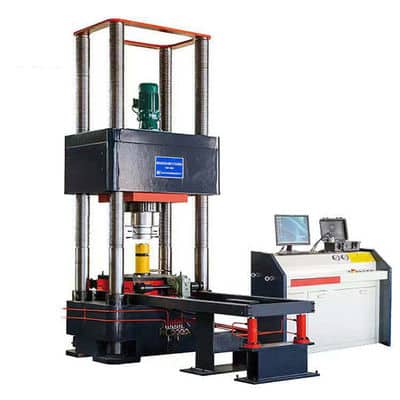

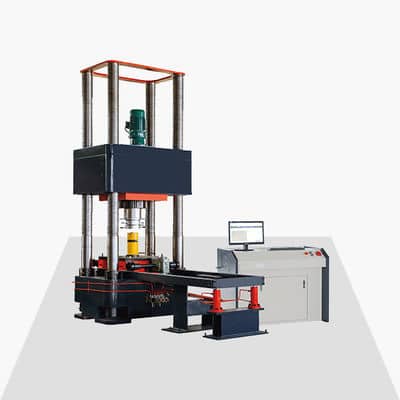

YAW Jack Testing Machine 200mm/min For Calibrating Hydraulic Jacks
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | YAW |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Description
| Name: | Jack Testing Machine | Standard: | JJG 621 -2012 |
|---|---|---|---|
| Max Test Force: | 3MN -30MN | Max Test Space: | 1600mm -2200mm |
| Max Lifting Force: | 20KN – 100KN | Beam Lifting Speed: | 200mm/min |
| High Light: |
YAW Jack Testing Machine, 200mm/min Jack Testing Machine |
||
YAW Large Range Pressure Testing Machine/Jack Testing Machine
Application:
It is used to test the mechanical properties of jacks, such as force value error, load efficiency, internal leakage, interpolation error, calibration equation, etc.
Standard:
JJG 621 -2012 Hydraulic jacks
Parameters:
| Max test force | 3MN -30MN (can be customized) |
| Max lifting force of guide rail | 20KN – 100KN |
| Test adjustment space | 0-2200mm(customizable) |
| Max test space | 1600mm -2200mm (customizable) |
| Thickness of upper and lower platen | 150mm, 200mm, 300mm |
| Hardness of upper and lower platens | HRC50-55 |
| Beam lifting speed | 200mm/min |
| The steering control function of port A and B facilitates the release of hydraulic lock | |
