Yellow 65mm Dual Borehole Inspection Camera Side 360 Degree Rotate 220V

65mm Dual Borehole Inspection Camera Side 360 Degree Rotate upto Max.20Mpa

65mm Dual Borehole Inspection Camera Introduction:

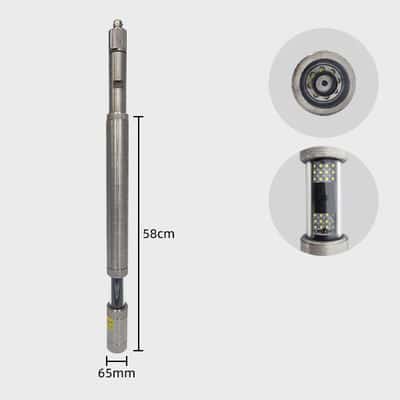

65mm Dual Borehole Inspection Camra is with 2 cameras in one tube: Side camera that can rotate 360 degree ; And Front fix camera tests angle 120 degree.  The main body tube material is made of 316L stainless steel which also can be used under sea to avoid corrosion problem.  8 Pieces  Led Light can be adjustable according to clients requests to satisfy with working state.

It works with our Yellow Color Controller box 12Inch Display  with multifunction.  As its side camera can hanlde or automatic rotate 360 dregee, it only work with our electric type winch BlueE, AE, AEW(self winding function), Plate type GrayE and GrayEW(self – winding function).  It is suitable for the borehole diameter more than 70mm well.

65mm dual inspection camera also equip with our new designation Quick & Water proof cable connection that can easily realize exchange with 65mm with one winch and cable system.

65mm Dual Borehole Inspection Camera Application:

SAM-65D is suitable Dry hole and Wet hole  for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.

it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.

65mm Borehole Camera’s parameters:
