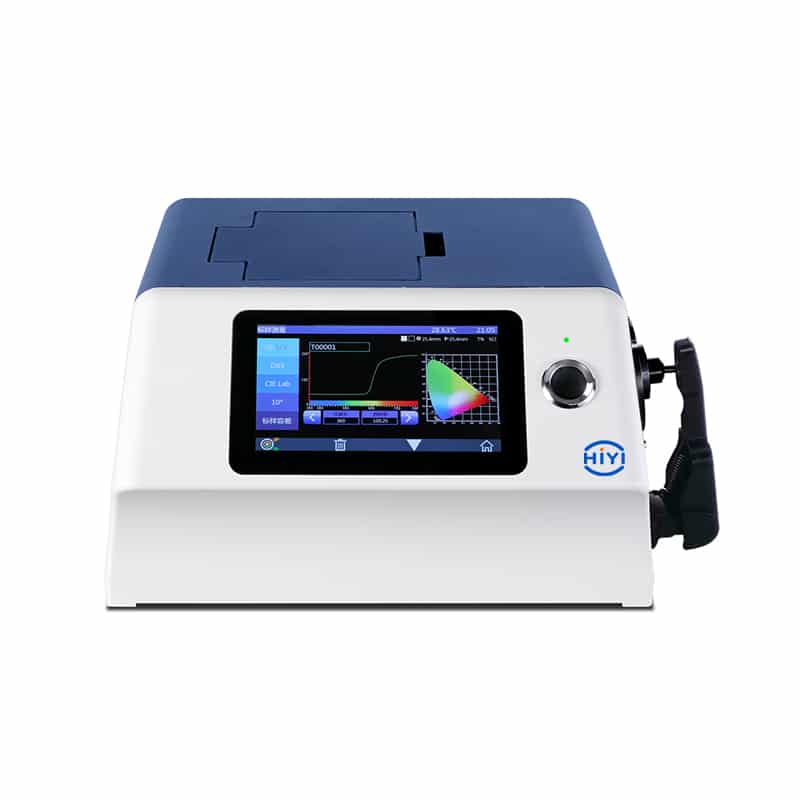

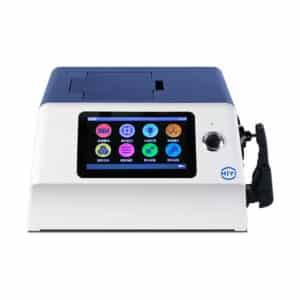

YS6060 Series Benchtop Grating Spectrophotometer

Features

1. High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.
2. Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED.
3. With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.
4. Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
5. Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.
6. Wavelength range 360nm – 780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
7. Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
8. Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.

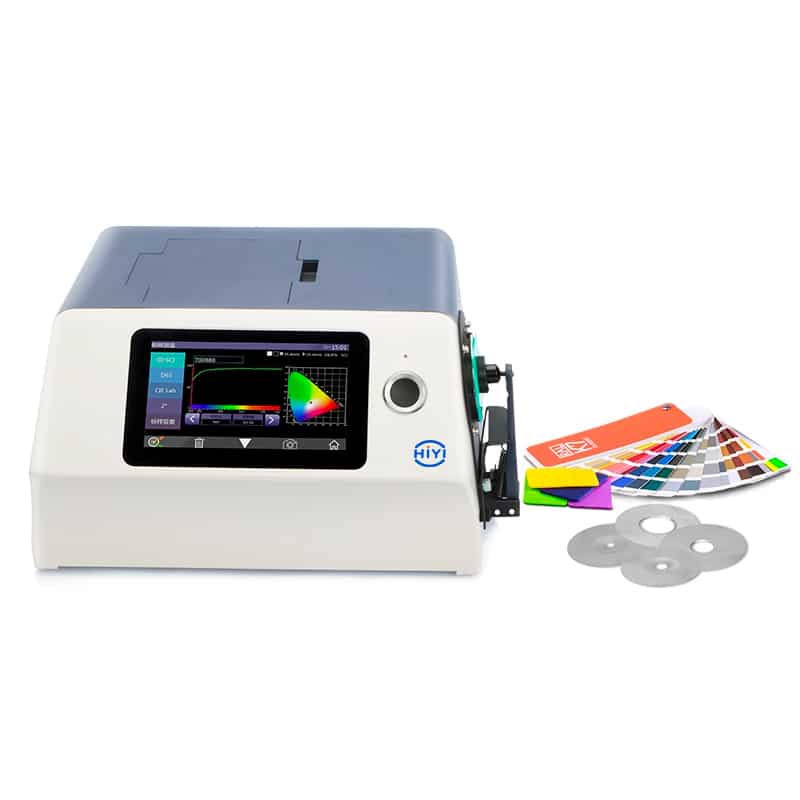

9. A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions;
10. Big capacity data storage, for 40000 pieces test result.
11. Built-in camera locating.
12. More powerful extended functions at the PC software.

Application

YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.
