YYW-2 Strain Controlled Unconfined Compression Test Apparatus 2.4mm/min
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | YYW-2 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Unconfined Compression Tester | Standard: | GB/T 50123-2019 |
|---|---|---|---|
| Specimen Dimension: | φ39.1mm *80mm | Max Force: | 0.6KN |
| Electric Speed: | 2.4mm/min | Gauge: | 0-10mm And 0-30mm |
| High Light: |
Strain Controlled Unconfined Compression Test Apparatus, YYW-2 Unconfined Compression Test Apparatus, 2.4mm/min Unconfined Compression Test Machine |
||

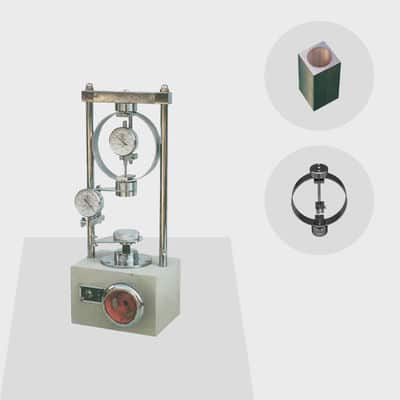

YYW-2 Strain Controlled Unconfined Compression Test Instrument
Application:
The Apparatus is used to determine the axial pressure of the soft clay with greater saturation under the condition that the lateral direction is not restricted until the force value when the specimen is damaged, and to obtain the unconfined compressive strength of the soil. At the same time, the unconfined compressive strength test is also used to determine the sensitivity of the soil. (Sensitivity is the ratio of unconfined compressive strength between the undisturbed soil and remolded soil that maintains natural water content).
Standard:
GB/T 50123-2019 Standard for geotechnical testing method
SL237-1999 Specification of soil test
JTG E40-2007 Test methods of soils for highway engineering
TB10102-2010 Code for soil test of railway engineering
Parameters:
| Item | Names | Details |
| 1 | Specimen dimension | φ39.1mm *80mm |
| 2 | Max force | 0.6KN |
| 3 | Electric speed | 2.4mm/min(manual and electric, optional) |
| 4 | Power | 220V +/-10% |
| 5 | Gauge | 0-10mm and 0-30mm |
Features:
1. The loading speed can be manual type or electric type, it can change it by the backside handle
2. The test ring is with high precision and best quality
3. It is the main conventional test instrument for the current geotechnical testing
