Zetron PTM100-AQ Air Quality Monitoring Analyzer
1,000.00৳
PTM100-AQ is a portable, full-featured air quality monitoring analyzer. It is widely used in air quality monitoring and emission pollution monitoring.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Details

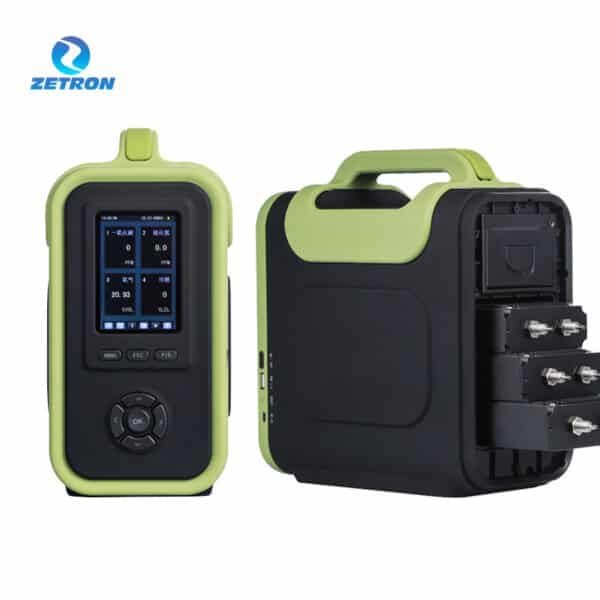

PTM100-AQ is a portable, full-featured air quality monitoring analyzer. It is widely used in air quality monitoring and emission pollution monitoring. It can be equipped with 1-9 gas sensors plus 1 dust sensor and 1 temperature& humidity sensor, which can detect gas, dust concentration, temperature, humidity and dew point at the same time. PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 can be detected at the same time to meet a variety of detection needs. SKY8000-AQ focuses on the accuracy of air quality detection and user experience. It support RS485 s ignal transmission, with datalog functions, through wireless d ata transmission, the measurement data can be transmitted to the cloud platform in real time.
Parameter
| Weight | 3700g |
| Size | (H x W x D)260*230*120mm |
| Sensors | PM10:(0~1000)ug/m3,PM2.5:(0~1000)ug/m3,SO2:(0~500)ppb,NO2:(0~500)ppb,O3: (0~500)ppb
,CO: (0~4000)ppb,TVOC: (0~2000)ppb, PM2.5/PM10 0-1000μg/m3,Temperture-40℃~+120℃,Humidity 0-100%RH |
| Detection principle | Electrochemical(CO, O2,NOx, SO2), Laser(PM2.5/10), Thermosensitive(Tem), Humidity Sensitivity(Hum) |
| Battery | Large capacity rechargeable lithium battery,5400mAh/11.1V(internal printer type)or 10000mAh/3.7V
(external printer type)working hours are more than 32h with single gas and 24h with six gases together |
| Precision | ≤±2%F.S. (higher precision is available) |
| Response Time | ≤10S |
| Zero shift | ≤±1%(F.S./year) |
| Display | Formula, gas concentration data, measurement trend curve, gas curve, battery, time. Optional:
temperature,humidity, pump condition, wireless status, printer status |
| Temperature | -20℃～50℃ |
| Humidity | 0-95%RH (non-condensing) |
| Explosion-Proof | Ex ic IIC T3 Gc |
| Degree of protection | IP65 |
| Screen | 3.5-inch hd LCD screen with resolution 320* 480 |
| Pump flow rate | 10 grades adjustable, flow range: 0-500 cc/Min. |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification) |
| Warranty | 12 months |
Application
Industry Application:Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction.
