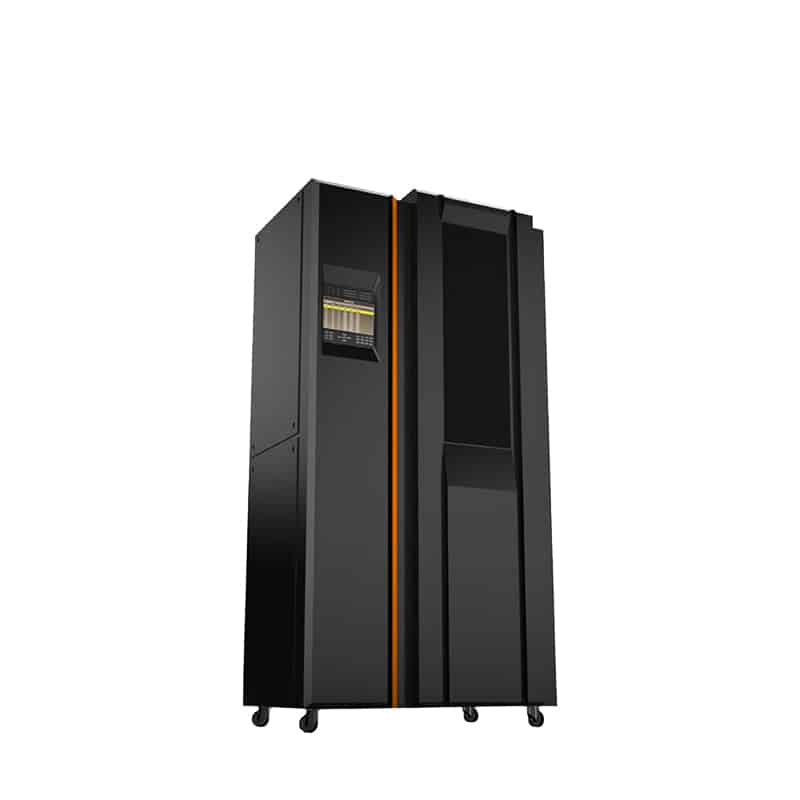

TH-3000-TVOC Monitoring Pretreatment System

TH3000-TVOC main principle is: the sampling unit collects the flue gas or the measured gas at the site, the pre-processing unit filters the dust, high temperature cooling, electric heat insulation, double-stage high efficiency dehumidification, and keeps the temperature and humidity of the measured gas in a certain range, then the gas detection and analysis unit carries out detection and analysis, displays the measured gas concentration on the display in real time, and transmits the data signal outward to PLC or computer, etc. It can also be transmitted to the cloud server through wireless GPRS or network, and then the user can read the data from the server, which can realize global network monitoring and analysis. The whole process is automatic and does not require human intervention.

TH3000-TVOC can be used for various high temperature and high humidity or high dust occasions, with optional automatic back-blowing system, otherwise it needs manual maintenance and cleaning of dust filters. The whole sampling pipeline has electric heat insulation function, which is conducive to removing water vapor and preventing part of the gas from dissolving in condensate to improve the accuracy of detection and analysis, and the built-in double-stage high-efficiency condensing and dehumidifying system can control the dew point of the gas stably at 4℃ or 5℃ to meet the humidity control requirements of various principles of analytical instruments.

System components:
● Sampling unit
● Sample gas pretreatment unit
● Gas analysis unit|
