Zetron TH2000 Air Pollution Gas Monitoring Equipment
1,000.00৳
TH2000 is made of stainless steel, aluminum alloy, high-quality cold plate, aluminum-magnesium zinc plate mixed material, is designed for the open-air outdoor environment and all-weather equipment protection box.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Details

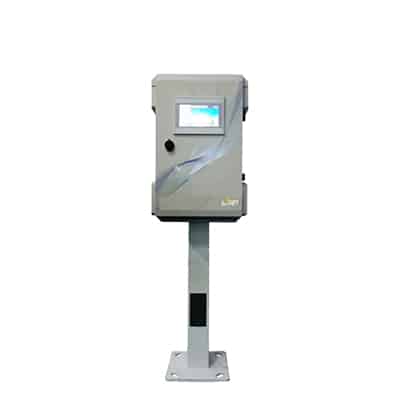

TH2000 Online Gas Monitoring System
Gas monitoring system is made of stainless steel, aluminum alloy, high-quality cold plate, aluminum-magnesium zinc plate mixed material, is designed for the open-air outdoor environment and all-weather equipment protection box, with rain, dust, ventilation fan heat, anti-UV (anti-aging), rust, acid and alkali corrosion, electromagnetic interference (lightning) characteristics, the box adopts a high degree of freedom modular quick-disassembly structure, easy to Quick installation of equipment and later maintenance.
Online monitoring system with built-in gas detector MIC600
MIC600 online composite gas detector is used for 24-hour continuous online monitoring of gas concentration and temperature and humidity measurement, on-site display of concentration, and sound and light alarm for exceeding the standard, remote data transmission. It adopts a 2.5-inch high-definition color screen to display the concentration in real-time and selects the current industry electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ionization principle gas sensors and Swiss high-precision capacitive digital temperature and humidity sensors according to the different detection gases.
The MIC600 can detect gas concentrations in pipelines or restricted spaces, atmospheric environments as well as gas leaks, and can also detect the purity of single gases at high concentrations. Rugged explosion-proof housing and fluorocarbon paint surface treatment process for a variety of hazardous places and strong acid and alkali corrosive environment, resistant to wear and tear, 10 years without fading and paint loss.
Tag: Exhaust Gas Detector, Gas Monitoring Alarm Equipment, Factory Boundary Gas Monitor,Air Pollution,Toxic Gases Detector, Air Pollution Dust Detector, OEM/ODM gas alarm device
Parameter
| Working mode | fixed installation, online detection, diffusion measurement, pipeline type (M45X1.5 male thread), circulation type, pump suction type optional. |
| Installation method | pipeline type, wall-mounted type. The working pressure of pipeline type is ±30% of the atmospheric pressure, beyond the range need to reduce the pressure treatment. |
| Response time | T90 ≤ 20 seconds (TVOC using light ion principle is less than 15 seconds) |
| Recovery time | ≤ 30 seconds |
| Working environment | -40℃～+70℃ |
| Relative humidity | ≤10-95%RH (conventional) non-condensing occasions |
| Operating voltage | 12~30V (DC DC, the standard power supply of single device is 24V, 1A or DC switching power supply greater than 1A) |
| Size | 60 * 60 * 1000 |
| Explosion-proof form | ExdⅡCT6 |
| Protection level | IP66 |
