ZJ Series Two Speed Strain Controlled Direct Shear Apparatus Max Vertical Load 400KPA
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | ZJ-2 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Shear Apparatus | Standard: | TB10102-2010 |
|---|---|---|---|
| Type: | Two Speed | Vertical Load: | 50, 100, 200, 300, 400kPa |
| Shear Force: | 1.2KN | Specimen Area: | 30cm2 |
| High Light: |
ZJ Series Direct Shear Apparatus, Strain Controlled Direct Shear Apparatus, 400KPA Direct Shear Test Apparatus |
||

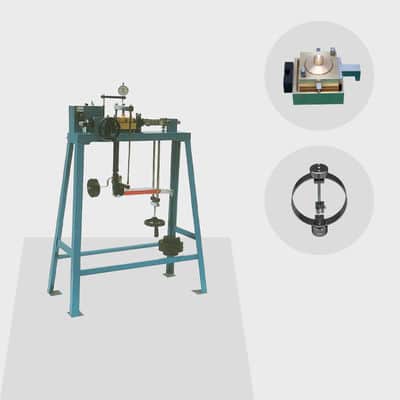

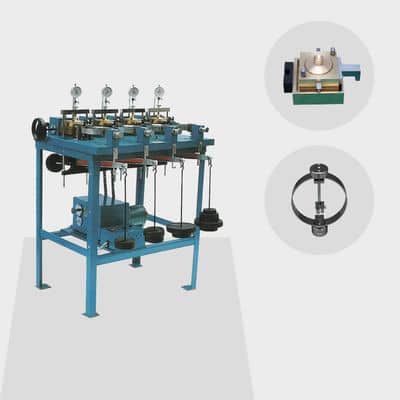

ZJ Series Strain Controlled Direct Shear Apparatus Of Two Speed
Application:
ZJ Two speed Strain Controlled Direct Shear Apparatus is one apparatus used to test resisting shear strength of soil specimen with two speed method, to get horizontal force, so as to obtain shearing stress while the sample is damaged. It usually adopts four specimens under the different vertical pressure (400kPa, 300kPa, 200kPa, 100kPa, 50kPa selectable). According to GB/T 50123-2019 Standard for geotechnical testing method, it is used to confirm the soil resisting shear strength coefficient, angle of internal friction and coagulable force.
Standard:
JTG E40-2007 Test methods of soils for highway engineering
TB10102-2010 Code for soil test of railway engineering
GB/T 50123-2019 Standard for geotechnical testing method
Parameters:
| Item | Names | Details |
| 1 | Horizontal shear force | 1.2KN |
| 2 | Specimen area | 30cm2 |
| 3 | Max vertical load | 400KPa |
| Vertical load grade | 50kpa, 100kpa, 200kpa, 300kpa, 400kPa | |
| 4 | Shear box | 1set |
| 5 | Lever ratio | 1:12 |
| 6 | Shear speed | Electric (0.8mm/min or 2.4mm/min)
Manual |
Features:
1. It usually adopts four specimens under the different vertical pressure (400kPa, 300kPa, 200kPa, 100kPa, 50kPa selectable)
2. It is with small size, easy for operation
3. The testing is according to Coulomb’ s rule
