0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
1,520.00৳
Place of Origin: | CN |
---|---|
Brand Name: | SAMYON |
Certification: | ISO |
Model Number: | HT-20 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Name: | Mortar Rebound Hammer | Impact Energy: | 0.196J |
---|---|---|---|
Test Range: | 1.0~25Mpa | Rebound Value: | 74+/-2 |
Pointer Slider Friction: | 0.4N~0.6N | Size: | φ54*268mm |
High Light: |
1kg Concrete Testing Equipments, 0.6N Concrete Testing Equipments, HT-20 Mortar Test Hammer |
HT-20 Mortar Test Hammer To Test The Compressive Strength Of Mortar In Building Brick Component.

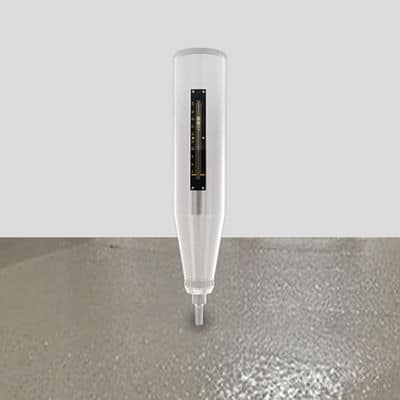

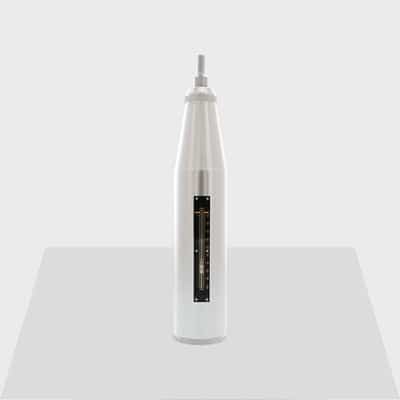

HT-20 Mortar Test Hammer
Application:
It is specially used to test the compressive strength of mortar in building brick component.
Parameters:
Item | Names | Details |
1 | Standard impact energy | 0.196J(0.02Kgf.m) |
2 | Test range | 1.0~25Mpa |
3 | Stroke of rebound hammer | 75mm |
4 | Average rebound value on steel anvil Rm | 74+/-2 |
5 | Sphere radius of rebound pole SR | 25mm |
6 | Friction of pointer slider | 0.4N~0.6N |
7 | Size | φ54*268mm |
8 | Weight | About 1kg |
Features:
1. Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument.
2. Shell is made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.
3. Center rod use imported materials, high precision, wear proof.
