60HRC Concrete Testing Equipments 16kg JW-225 Test Anvil For Calibration Test Hammer
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | JW-225 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Anvil | Function: | Calibrate The Test Hammer |
|---|---|---|---|
| Hardness: | 60+/-2HRC | Rebound Value 1: | 80+/-2 |
| Rebound Value 2: | 74+/-2 | Weight: | 16kg |
| High Light: |
60HRC Concrete Testing Equipments, 16kg Concrete Testing Equipments, JW-225 Test Anvil |
||

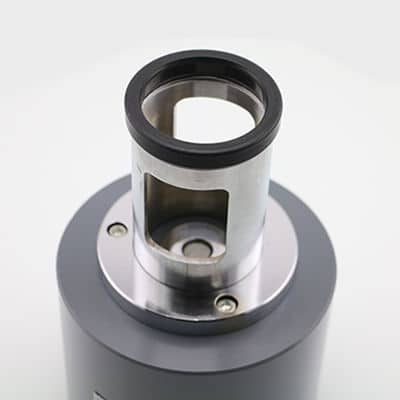

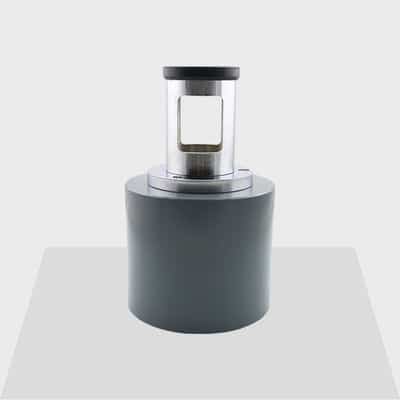

JW-225 Special Tool Steel Test Anvil Used To Calibrate The Test Hammer
JW-225 Test Anvil Used To Calibrate The Test Hammer
Application:
It is used to calibrate the test hammer.
Parameters:
| Item | Names | Details |
| 1 | Steel core hardness | 60+/-2HRC |
| 2 | Rebound value fall range | 80+/-2 |
| 3 | Rebound value fall range
(Test hammer impact energy 0.735J and 0.196J) |
74+/-2 |
| 4 | Weight | 16kg |
Features:
1. Test anvil must be located on horizontal ground, take test hammer operation on it and check the rebound value, qualified concrete test hammer will get an average rebound value of 80+/-2 on test anvil, qualified mortar test hammer will get a rebound value of 74+/-2.
2. Test anvil is made from the best steel and special tool steel. Contact area between anvil core and anvil body get excellently polished, and the rigidity of anvil core is HRC58~62.
3. Test anvil is the excellent instrument for assessing test hammer.
4. The test anvil, as a calibration instrument, after each 5000 or 8000 test, the test surface can be polished and then continue using, but the rigidity of core must be HRC58~62, or abolish it.
5. Test anvil usually stored in dry dustproof place, protect its rebound surface from collision.
