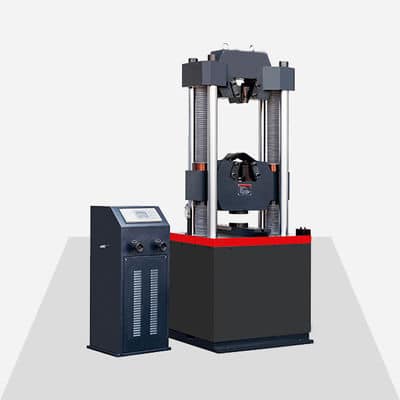

650-1300mm Universal Testing Machines 4% ~ 100% FS with Liquid Crystal Digital Display
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | WE |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Universal Test Machine | Standard: | ISO 898-1 |
|---|---|---|---|
| Testing Force Range: | 4% ~ 100% FS | Accuracy: | Class 0.5/1 |
| Tensile Space: | 650-1300mm | Compression Space: | 500-1000mm |
| High Light: |
650mm Universal Testing Machines, 1300mm Universal Testing Machines, 100% FS Universal Material Testing Machine |
||
WE Liquid Crystal Digital Display Universal Testing Machine
Application:
It is mainly used in the tensile testing of metal materials with obvious yield phenomenon. Control method of rate testing is manual control. It can be used in testing the tensile strength, yield strength, percentage elongation after fracture and other mechanical performance of the metal materials.
Standards:
BS EN ISO 898-1-2013, BS EN ISO 898-2-2012, ISO 7438-2020, ISO 6935-2-1029, BS EN ISO 15630-1-2019, GB/T 232-2010, GB/T 3098.2-2015, GB/T 3098.1-2010, GB/T 1499.2-2018
Parameters:
| Model | WE-
2000D |
WE-
1000D |
WE-
1000B |
WE-
600D |
WE-
600B |
WE-
300B |
WE-
100B |
|
| Max test force | 2000KN | 1000KN | 1000KN | 600KN | 600KN | 300KN | 100KN | |
| Accuracy | Class 0.5/1 | |||||||
| Testing force range | 4% ~ 100% FS | |||||||
| Indicating value relative error | +/-1% | |||||||
| Tensile space(mm) | 1300 | 700 | 700 | 650 | 650 | 650 | 650 | |
| Compression space(mm) | 1000 | 550 | 550 | 550 | 550 | 500 | 500 | |
| Column space(mm) | 745 | 550 | 550 | 480 | 430 | 430 | 430 | |
| Clamping range of round specimen(mm) | φ20 ~ φ65 | φ6 ~ φ45 | φ6 ~ φ40 | φ6 ~ φ40 | φ6 ~ φ40 | φ6 ~ φ26 | φ6 ~ φ26 | |
| Clamping thickness of flat specimen(mm) | 0-50 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | |
| Max clamping width of flat specimen(mm) | 140 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Pressure plate size(mm) | φ300 | φ155 | φ155 | φ155 | φ155 | φ155 | φ155 | |
| Overall dimension of the host machine(mm) | 1200*800
*3300 |
910*830
*2300 |
910*700
*2300 |
840*700
*2200 |
740*590
*2150 |
740*590
*2150 |
740*590
*2150 |
|
| Oil source console size | 700*700*1500 | |||||||
| Total motor power(KW) | 4 | 2 | 2 | 2 | 2 | 1.5 | 1.5 | |
| Total weight(kg) | 9000 | 3200 | 2800 | 2300 | 2000 | 1600 | 1600 | |
Features:
1. Famous brand sensor configuration(sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability
2. The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of ISO 6892-1-2019
3. Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing machines for JJG 1063-2010
4. Gaining national patent, the servo pump device of computer-control electro-hydraulic servo universal testing machines.
5. Patent characters: high testing rate control accuracy, ultra-silence and energy conservation
