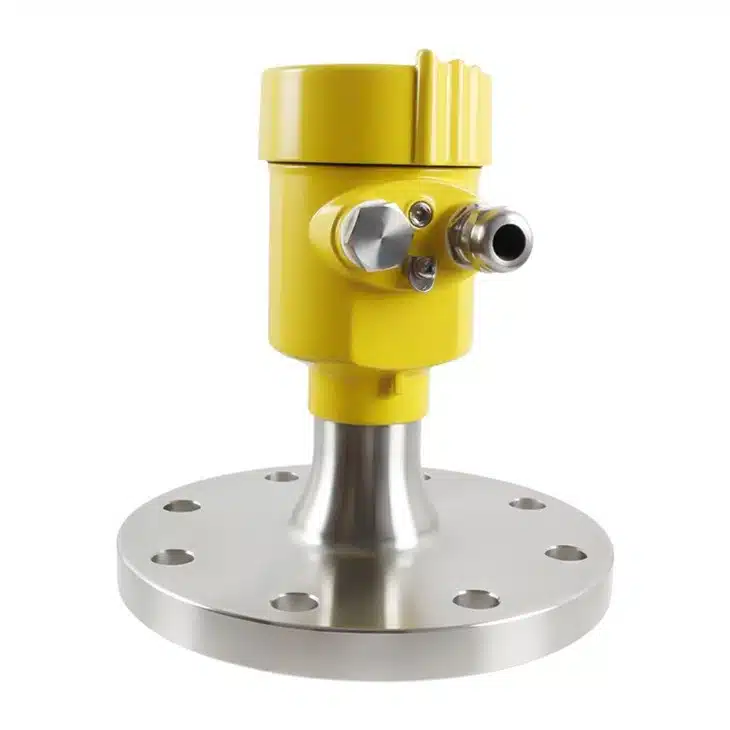

80 Ghz Radar Level Transmitter
76GHz-81GHz FM wave radar level sensor for solid, fuel, water
Applications
√Chemical Processing Plants
√Oil & Gas Facilities
√Food and Beverage Production
√Pharmaceutical Manufacturing
√Monitoring of Solids and Powders in Silos
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
MQ8 is a 76-81GHz frequency modulated continuous wave (FMCW) radar product supporting four wire system and two wire system applications. Its maximum range can reach 120m, and the blind area is small. This radar level sensor is capable of measuring level of both liquids and solids, even in harsh environment, including high pressure, high temperature, strong dust, obstacles. It is designed for users who require quite precise measurement or level monitoring applications related with bad working conditions.
Product Features
- CMOS millimeter-wave RF chip, accuracy up to ±1mm
- High S/N ratio & smaller blind area
- 80GHz frequency, 5GHz work band for higher resolution and precision
- Small targets capable even in harsh environment
- Remote commissioning & upgrade, cutting waiting time and improving work efficiency
- Max 120m range, suitable for monitoring almost all the liquids & solids
Product Specification
| Transmission frequency | 76GHz~81GHz, FM scanning frequency width 5GHz |
| Measuring range | 35m 85m 120m |
| Measurement accuracy | ±1mm |
| Beam angle | 3°, 8° |
| Range of dielectric constant used | ≥2 |
| Power supply range | 18~28.0VDC, four wire system (<1W) |
| Communication mode | HART/MODBUS bus |
| signal output | 4~20mA or RS-485 |
| Process pressure | -0.1~2MPa |
| Cable entry | M20*1.5 |
| Protection grade | IP67 |
| Installation mode | Thread or flange |
Product Dimensions
