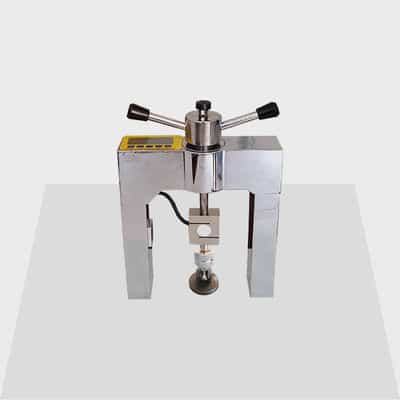

CECS 146 Force Test Equipment 10KN Carbon Fiber Adhesive Strength Tester
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | CECS 146 |
| Model Number: | SYTJ-10 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Adhesive Strength Tester | Standard: | CECS 146:2003 |
|---|---|---|---|
| Tension Force: | 10kN | Tension Stroke: | 65mm |
| Indication Error: | =<+/-1%F.S | Working Current: | =<10mA |
| High Light: |
CECS 146 Force Test Equipment, 10KN Force Test Equipment, Carbon Fiber Adhesive Strength Tester |
||
SYTJ-10 10KN Carbon Fiber Adhesive Strength Tester With Intensity (MPa) And Force Value (KN)
SYTJ-10 Carbon Fiber Adhesive Strength Tester
Application:
This instrument is suitable for testing the adhesive strength between carbon fiber reinforced polymer laminate and concrete in the civil construction structure. It is recommended product of CECS 146:2003 Technical specification for strengthening concrete structures with carbon fiber reinforced polymer laminate. According to the adhesive strength and the destroy form, it can instantly obtain the test results
Standard:
CECS 146:2003 Technical specification for strengthening concrete structures with carbon fiber reinforced polymer laminate.
Parameter:
| Item | Name | Details |
| 1 | Maximum tension force | 10kN |
| 2 | Tension stroke | 65mm |
| 3 | Indication error | =<+/-1%F.S |
| 4 | Weight | 2.8kg |
| 5 | Turn off current | =<2μA |
| 6 | Working current | =<10mA |
| 7 | Power | 4.2V Li battery |
Features:
1. New structure, outstanding advantage, convenient operation,
2. With adhesive standard block conversion curves, the intensity (MPa) and force value (KN) is convertible
3. Digital meter features: liquid crystal display, direct force reading, peak holding, data storage, curve correction, automatic shutdown
