Ceramic Economical Pressure Transmitter
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description

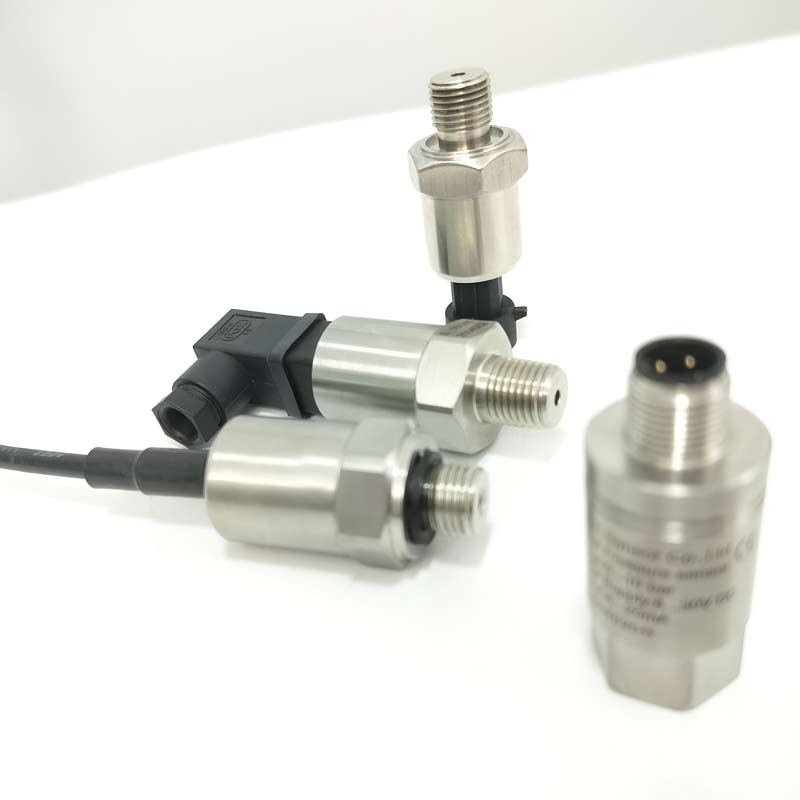

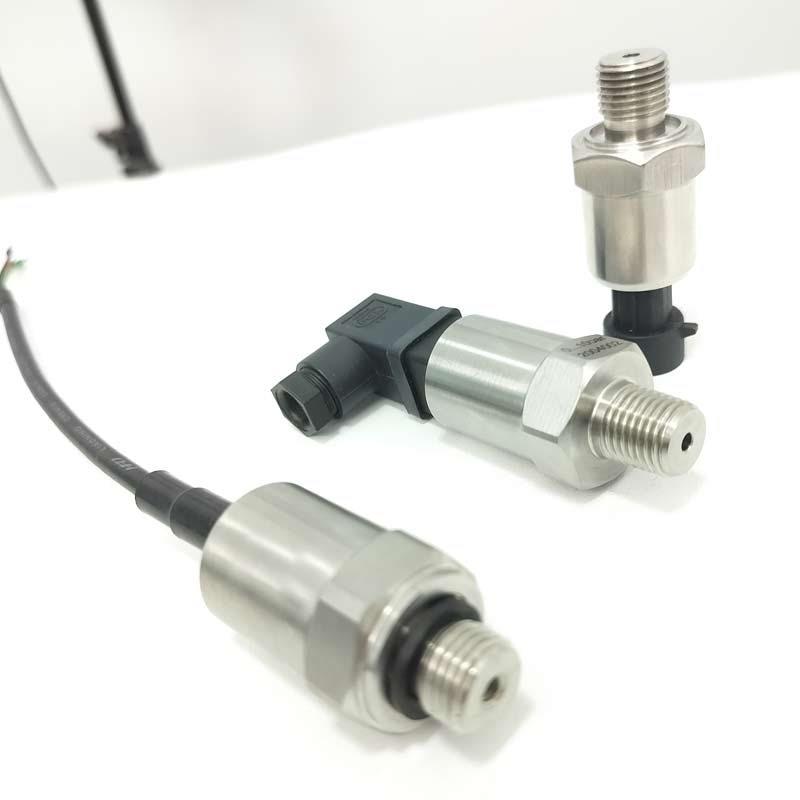

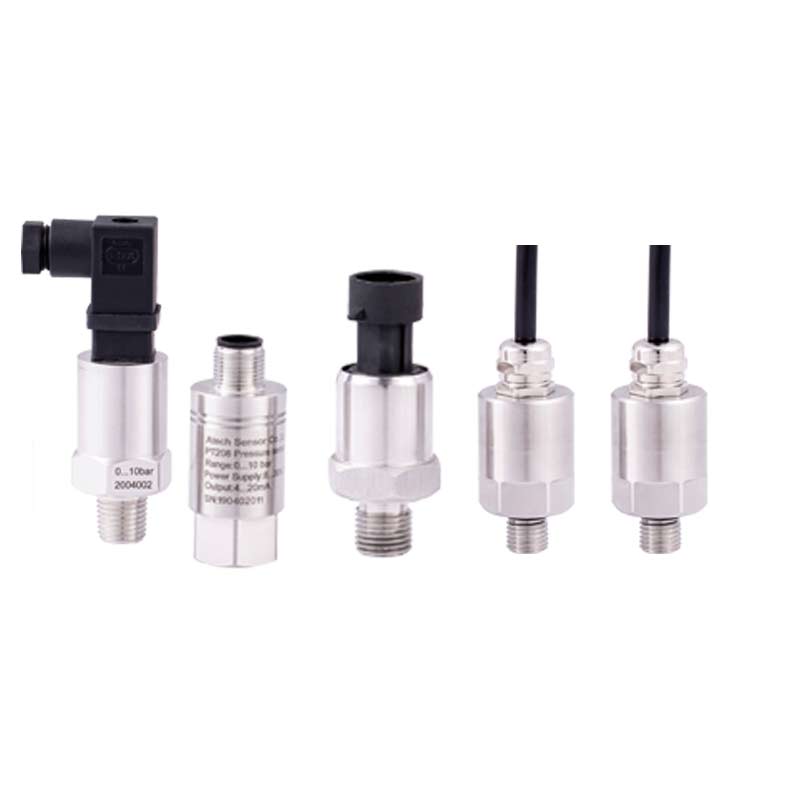

PT208 series of pressure transmitter is a standard and most popular transmitter applied water pump, auto engines, air conditioning equipments ect. The pressure transmitter features of high stability, small size, ligh weight ,compact structure and low cost for mass production.
The products are made of stainless steel. the pressure sensing elements and chips are selected from well-known Germany brands. Special circuits are adopted to zero and full range conveniently. The product are approved with CE, intrinsically safe, Customized structures and output formats can be designed according to special application requirements .
Feature
● MEMS technology
● Germany sensor employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Digital Calibration
Applications
● Water pump
● Hydraulic control
● Air conditioner control
● variable frequency water supply
● Refrigerator
Product Features
MEMS technology
Germany sensor employed
Perfect long term stability
CE certificate
OEM service provided
Digital Calibration
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~5…400bar |
|
overload pressure |
150%FS |
|
Broken Pressure |
250%FS |
|
output signal |
4~20mA, 0.5~4.5V,0-10V，0-2V，4.5-5.5v |
|
accuracy |
1%FS (standard) 2%FS 0.5%FS |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞100KΩ (voltage output) |
|
long term stability |
0.5%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~80°c |
|
operating temperature range |
-40~+120°c |
|
storage temperature range |
-40~+140°c |
|
insulation resistance |
>100MΩ@ 50VDC |
|
response time |
10ms |
|
EMC |
EMI:EN50081-1/-2, EMS:EN50082-2 |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
ceramic |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
88g |
