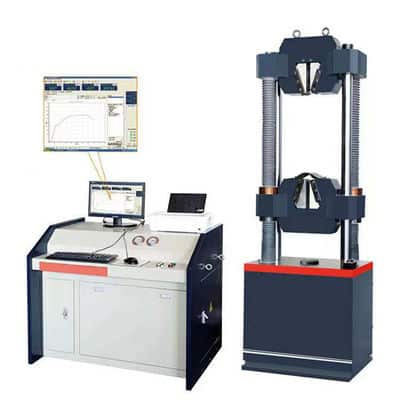

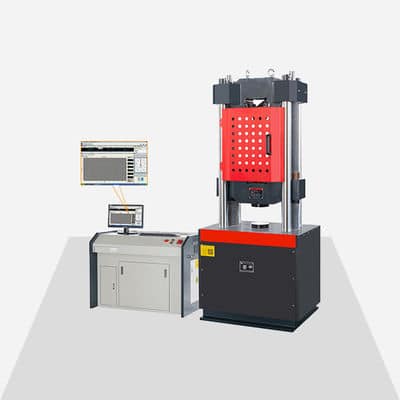

Class 0.3 / 0.5 Electro Hydraulic Servo Pull Force Testing Machine 680mm 6-1000KN
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | WAW |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Pulling Force Testing Machine | Standard: | ISO 898-1 |
|---|---|---|---|
| Testing Force Range: | 6-1000KN | Accuracy: | Class 0.3 / Class 0.5 |
| Load Frame: | 1000*750*3160mm | Max Piston Stroke: | 680mm |
| High Light: |
1000KN Pull Force Testing Machine, 680mm Pull Force Testing Machine |
||
WAW Class 0.3/0.5 Computer-Control Electro-Hydraulic Servo Pulling Force Testing Machine
Application:
This product is mainly used for the tensile test of metal materials. It is totally conformed to the requirement of ISO 6892-1:2019 Metallic materials tensile testing Part 1: Method of test at room temperature. This machine is safe and reliable, with reasonable product structure, elegant appearance and large stiffness.
Standard:
BS EN ISO 898-1-2013, BS EN ISO 898-2-2012, ISO 7438-2020, ISO 6935-2-1029, BS EN ISO 15630-1-2019, ISO 6892-1:2019, GB/T 232-2010, GB/T 3098.2-2015, GB/T 3098.1-2010, GB/T 1499.2-2018, GB/T 228.1-2010
Parameters:
| Model | WAW-600DL | WAW-1000DL |
| Max test force | 600KN | 1000KN |
| Testing force range | 6-600KN | 10-1000KN |
| Accuracy | Class 0.3 / Class 0.5 | |
| Force accuracy | No more than +/-0.3% / +/-0.5% in accuracy from the value display | |
| Displacement resolution | 0.005mm | |
| Displacement accuracy | No more than +/-0.5% in accuracy from the value display | |
| Max piston stroke(mm) | 680 | 680 |
| Max tensile jaw space(including piston stroke)(mm) | 700 | 700 |
| Deformation accuracy | No more than +/-0.5% in accuracy from the value display | |
| Overload protection | If over 5% of the full max test force | |
| Clamping method | Hydraulic wedge clamping | |
| Round specimen clamping range(mm) | φ14 –φ60 | φ14 –φ60 |
| Flat specimen clamping range(mm) | 0-60 | 0-60 |
| Column number(unit) | 4 | |
| Load frame size(mm) | 1000*750*3160 | 1000*750*3160 |
| Total power(KW) | 7.5 | |
| Total weight(kg) | 4500 | 5000 |
Features:
1. Famous brand sensor configuration(sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability
2. The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of ISO 6892-1-2019
3. The software of this series of products has passed the evaluation of the National steel material testing center, the testing data can be traced to the source
4. Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing machines for JJG 1063-2010
5. Gaining national patent, the servo pump device of computer-control electro-hydraulic servo universal testing machines.
6. Patent characters: high testing rate control accuracy, ultra-silence and energy conservation
