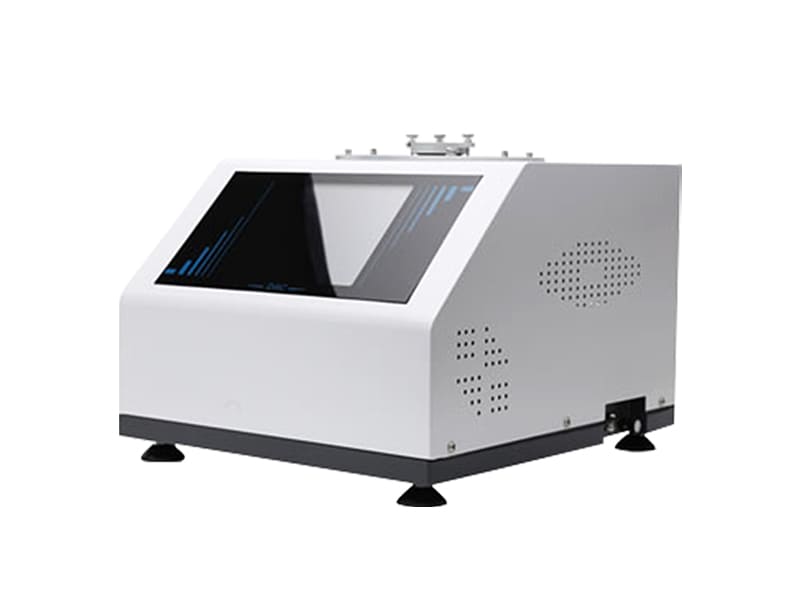

Differential scanning calorimeter

Product Introduction:

This differential scanning calorimeter is a touch screen type, mainly customized for the plastic industry, and can measure the melting, block shape, and

Testing of melting points of particles, films, pipes, sleeves, etc.

Compliant with standards:

GB/T 19466.3-2004/ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy

(Testing of melting point)

Technical parameters:

1. Temperature range: Room temperature~500 ℃

2. Temperature resolution: 0.01 ℃

3. Temperature fluctuation: ± 0.1 ℃

4. Temperature repeatability: ± 0.1 ℃

5. Heating rate: 0.1~100 ℃/min

6. Constant temperature time: It is recommended to be less than 24 hours

7. Temperature control method: temperature rise, constant temperature (fully automatic program control)

8. DSC range: 0~± 600mW

9. DSC resolution: 0.01mW

10. DSC sensitivity: 0.01mW

11. Working power supply: AC220V/50Hz or customized

12. Atmosphere control gas: nitrogen, oxygen (instrument automatically switches)

13. Gas flow rate: 0-300mL/min

14. Gas pressure: 0.2MPa

15. Display mode: 8-inch LCD touch screen display, super hardness instrument facial mask design.

Technical features:

1. Industrial grade 8-inch touch screen, perfect combination of instrument panel and touch screen.

2. The sensor is closely integrated with the furnace body, making the baseline smoother and greatly improving sensitivity and resolution.

3. USB communication interface, strong universality, reliable and uninterrupted communication, supporting self recovery connection function.

4. Digital flow meter for more precise airflow control.

5. Automatically switch between two channels of atmosphere flow, with fast switching speed and short stability time. Simultaneously add a protective gas input.

6. The software is simple and easy to operate.
