Digital coating thickness gauge
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | HEDAO |
| Model Number: | WT2100 / WT2110 WT2110B |
| Certification: |

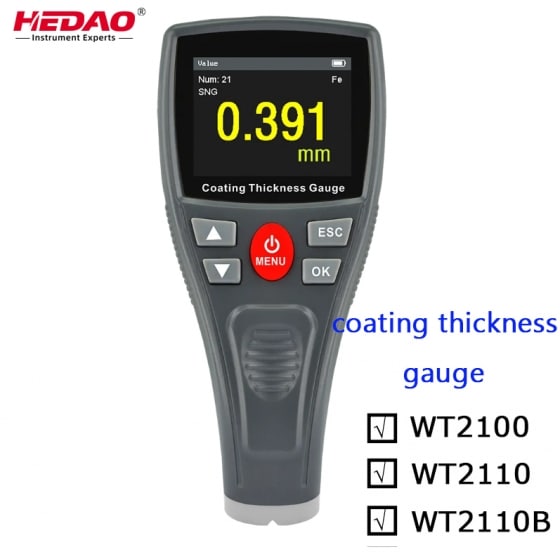

This product is a color-screen portable coating thickness gauge with high-definition display. It can quickly,
non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate,
thin film, etc.) on magnetic metal substrates. It is widely used in manufacturing, metal processing,
chemical industry, commodity inspection and other testing areas.
| Function | |||
| WT2100 | WT2110 | WT2110B | |
| Menu operation and colo-screen HD display | √ | √ | √ |
| Fe(magnetic metal) | √ | √ | √ |
| NFe(non-magnetic metal) | × | √ | √ |
| Three calibration modes: basic, offset, zero calibration | √ | √ | √ |
| Metric/imperial unit and storage function | √ | √ | √ |
| Screen rotation, charge protection, multi-interface displays,screen brightness selection | √ | √ | √ |
| Automatic shutdown | √ | √ | √ |
| Bluetooth function (used with APP) | × | × | √ |
| USB datatransfer(use with PC software) | × | × | √ |
| USB charging function | × | × | √ |
| Specification | ||||
| WT2100 | WT2110 | WT2110B | ||
| Measurement range | 0~1800um/0~70.9mil/0~1.8mm | 0~1500um/0~59mil/O~1.5mm | 0~1500pm/0~59mil/0~1.5mm | |
| Resolution | (0.1μm(<100um 1pm(≥100μm))/0.1mil/0.001mm |
(0.1pm(<100um 1μm(≥100pm))/0.1mil/0.001mm |
(0.1pm(<100μm) 1μm(≥100pm))/0.1mil/0.001mm |
|
| Measurement error | ≤150pm:±5μm | ≤150μm:±5μm | ≤150μm:±5pm | |
| >150μm:±(3%H+1pm) | >150μm:±(3%H+1μm) | >150μm:±(3%H+1μm) | ||
| Minimum diameter of magnetic metal substrate |
12mm | 12mm | 12mm | |
| Minimum thickness of magnetic metal substrate |
0.5mm | 0.5mm | 0.5mm | |
| Minimum radius of curvature for magnetic convex substrate |
2mm | 2mm | 2mm | |
| Minimum radius of curvature for magnetic concave substrate |
11mm | 11mm | 11mm | |
| Minimum diameter of non- magnetic metal substrate |
× | 50mm | 50mm | |
| Minimum thickness of non- magnetic metal substrate |
× | 0.5mm | 0.5mm | |
| Battery | 3×1.2V NiMH battery(weight 36.5g)or 5V1A power adapter | |||
| Size | 70.30*38.6*149.59mm | |||
| Weight | 136.9(including battery) | |||
