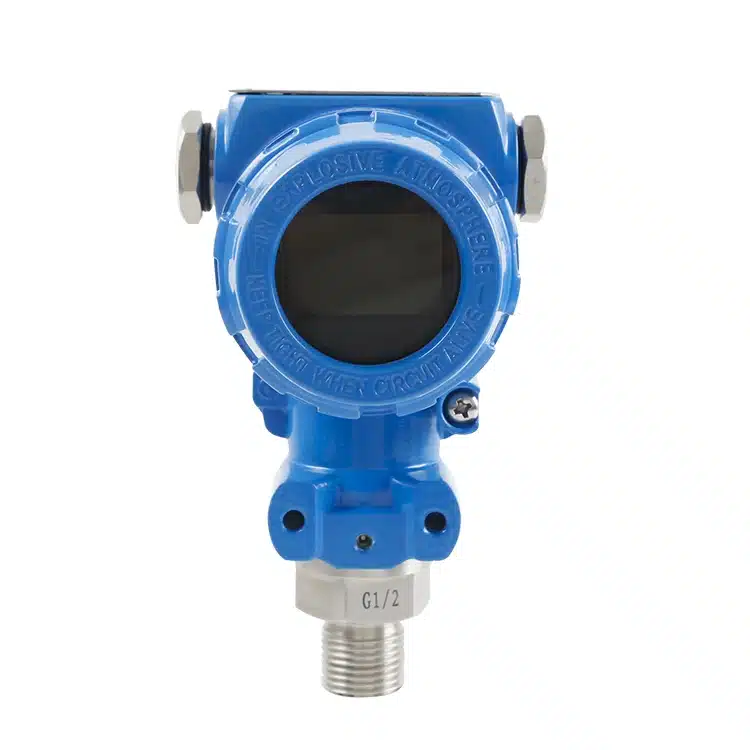

Digital Display Pressure Sensor
Model:P20CD
For all industrial applications with a HD LED or LCD display
Applications:
√Water supply
√Industrial Process Monitoring
√Boilers
√Food Industry
√Biomedical
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
P20-CD Pressure Sensor, designed for versatile industrial applications, providing reliable pressure measurement in harsh environmental conditions. Boasting a large HD LED or LCD display, this sensor facilitates easy local value reading for user convenience. The cast aluminum housing ensures high shock and vibration resistance, allowing it to thrive in extreme conditions. Equipped to output various industry-standard signals, the sensor undergoes linear compensation, signal amplification, reverse polarity protection, and pressure allergy current limiting for precise signal processing. With the capability to operate in high temperatures, humidity, and severe cold, this industrial-grade sensor remains stable, demonstrating minimal influence from ambient temperature fluctuations.
Product Features
- Big LCD/LED display for local reading of pressure values, enhancing user accessibility.
- High accuracy up to 0.25%F.S
- Durable cast aluminum housing, providing high shock and vibration resistance, ensuring reliability in extreme industrial environments.
- Equipped with advanced signal processing functionalities for precise output signals.
- Wide operating range in high temperatures and high humidity.
Product Specification
| Model
Parameter |
P20-CD | ||||
| Pressure Range | -1~0-0.1 bar …1000bar optional | ||||
| Overload | 200% F.S.(≤100bar); 150% F.S.(≤400bar); 120% F.S.(1000bar); | ||||
| Burst Pressure | 500% F.S.(≤100bar); 300% F.S.(≤400bar); 150% F.S.(1000bar); | ||||
| Electrical Wire | 2-wire | 3-wire | |||
| Output | 4~20mA | 4-20mA+Hart | 0~5V | 0~10V | 1~5V |
| Power Supply | 12-30Vdc | 12-30Vdc | 12-30Vdc | 15-30Vdc | 12-30Vdc |
| Accuracy | 0.5%F.S (Typical); 0.25%F.S(by customized) | ||||
| Long-term Stability | ≤ ±0.15 % of span/year | ||||
| Working Temp. | -40℃~85℃ or -40~125℃ (by customized) | ||||
| Process Connection | G1/4”, 1/8”NPT; M20*1.5 or by customized | ||||
| IP Rating | IP65 | ||||
Product Dimensions
