Digital Ultrasonic Thickness Gauge USB Charging Digital Thickness Metal Tester
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | HEDAO |

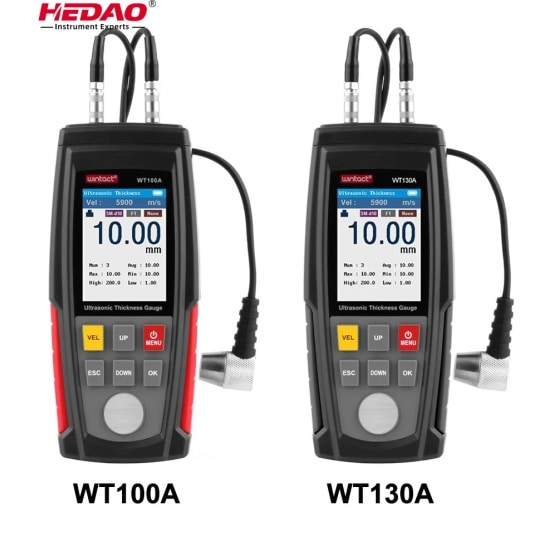

| Model Number: | WT100A / WT130A |
| Certification: |
Digital Ultrasonic Thickness Gauge Meter Tester
USB Charging Digital Thickness Metal Tester
* WT100A: 1.2~225.0mm (steel)
* WT130A: 1.0~300.0mm (steel)
It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.
It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.
Wide application: The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic , such as metal, plastic, ceramic, glass, etc.
The Intelligent Handheld Ultrasonic Thickness Gauge is microprocessor controlled and can measure thickness quickly and accurately and with sound of various materials without ultrasonic measurement damage.
This tool is capable of accurately measuring parts in different materials or industrial production, as well as monitoring pressure vessels for pipes and production equipment, as well as the extent to which various parts are corroded
| Function | ||
| WT100A | WT130A | |
| High/low limit alarm | √ | √ |
| Data storage | √ | √ |
| Five screen colors can be selected | √ | √ |
| Probe can be selected | × | √ |
| Color backlit screen | √ | √ |
| Two calibration modes (sound velocity calibration, basic calibration) |
√ | √ |
| Specification | ||
| WT100A | WT130A | |
| Measuring range | 1.00～225.0mm | 1.00～300.0mm |
| Data storage | 500 | 1500 |
| Probe selection | × | √ |
| Operation frequency | 5MHz | 5MHz/2.5MHz |
| φ6 probe | × | √ |
| φ10 probe | √ | √ |
| Measurement error | ±(0.5%H+0.05)mm | |
| Resolution | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 225mm) | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) |
| Lower limit of pipe measurement | 中20x3mm (steel) | |
| Adjustment range of sound speed |
1000～9999m/s | |
| Temperature range of operation |
0～40℃ | |
| Battery | 3 Ni-MH rechargeable batteries of 1.2V | |
| USB charging | 5V 1A | |
| Dimensions | 65x146x30mm | |
| Weight | 130g | |
