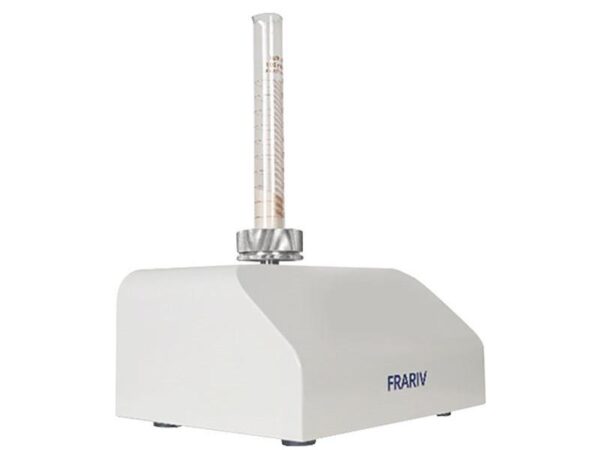

Economical vibration density meter

Product Introduction:

Supporting workstations: single station, double station, triple station

Models: HM-ZS1, HM-ZS2, HM-ZS3

Supporting standards: comply with the national standard GB/T 21354-2008/ISO 3953-1993;

Complies with national standard GB/T 5162-2006/ISO 3953-1993

Applicable fields: Suitable for metal powders, non-metallic powders, pharmaceuticals, chemicals, new energy, new materials, scientific research and teaching, and other fields

Vibration frequency: 0-300 rpm adjustable

Vibration method: rotational vibration

Vibration amplitude: 3mm, 14mm (optional)

Working power supply: AC220V ± 10V 50Hz

Volume of measuring cylinder: 25mL, 100mL

Repeatability error: ≤ 1%

Technical features:

1. 4.3-inch touch screen display, providing a more convenient, simple, and natural human-computer interaction mode;

2. Use long-lasting and highly reliable motor components with * * start stop response capability;

3. Using 32-bit embedded RISC microprocessors, which have the characteristics of low cost, high performance, and low power consumption;

4. For the application scenarios of testing instruments, use customized embedded operating systems to enhance system stability and software scalability;

5. A lightweight, resource efficient, high-performance, highly reliable, configurable, and aesthetically pleasing GUI (human-machine interaction interface) has been adopted to enhance the user experience level;

6. Built in embedded mini ticket printer;

7. Calculate the result to 3 decimal places;

8. Excellent network connectivity, capable of supporting remote software upgrades and customized requirements;

9. Support the generation and download of electronic reports, and support both Excel and PDF formats;

10. The instrument has a sturdy structure, beautiful appearance, and easy operation.

Built in printer parameters:

Paper width: 58mm; Paper bin: ≤ 30mm; Roll length: 9.42m; Printing speed: 60mm/s
