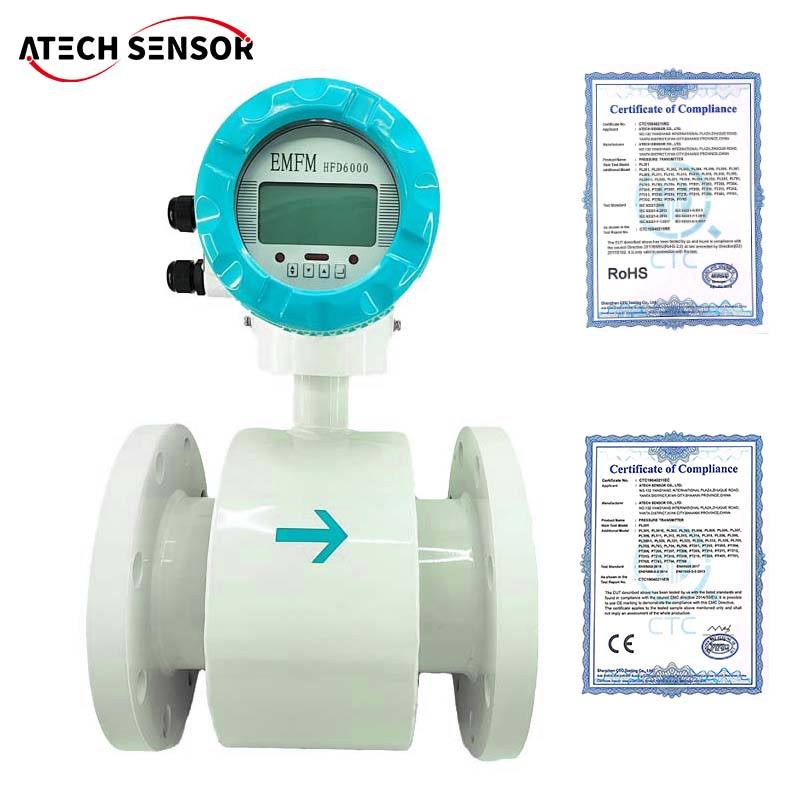

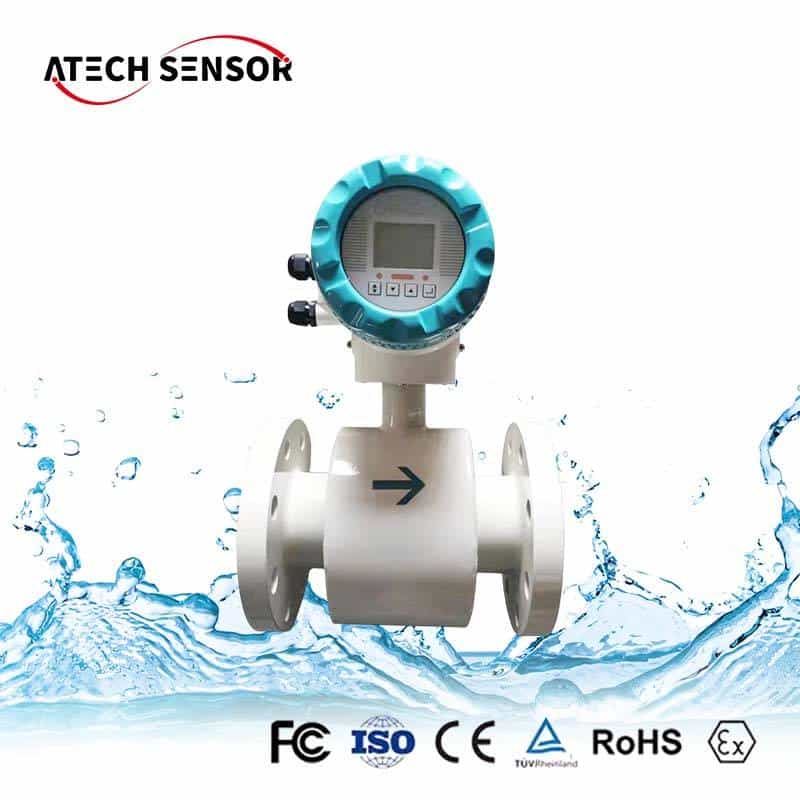

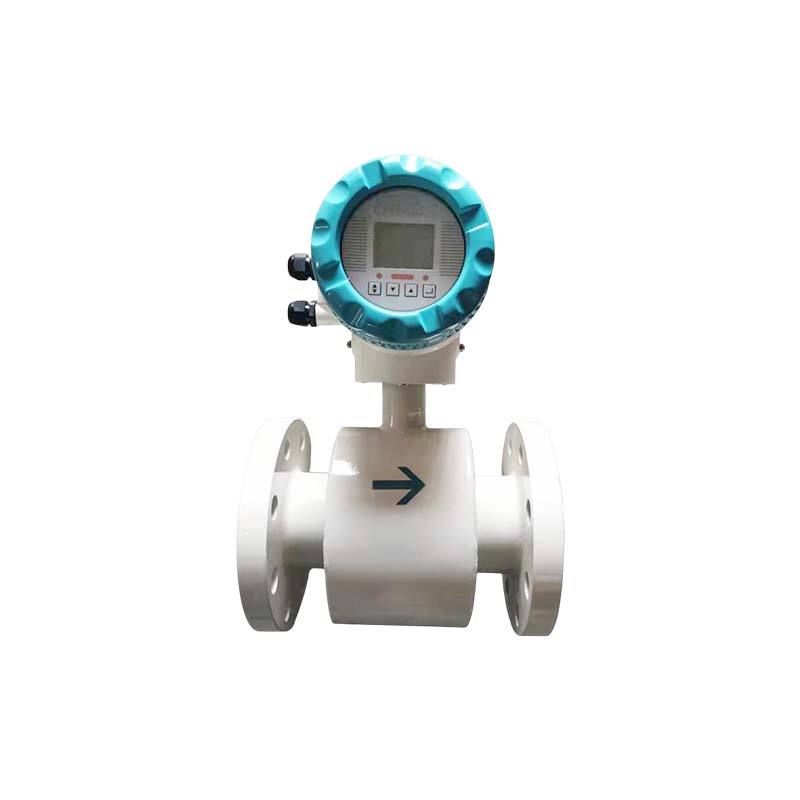

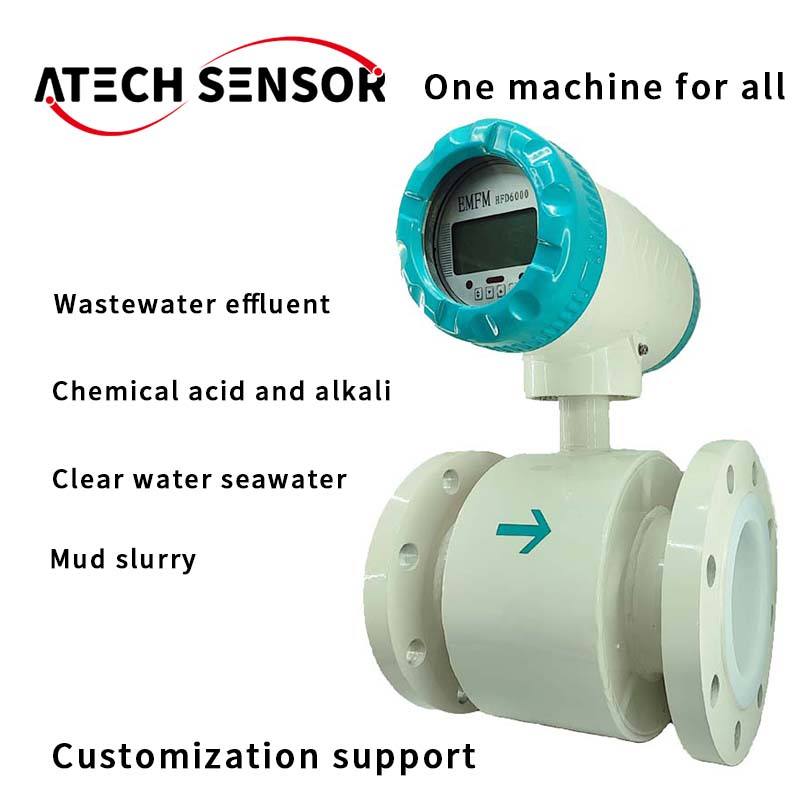

EMF100 intelligent electromagnetic flow meter
1,520.00৳
EMF100 intelligent electromagnetic flow meter is composed by sensor and transmitter.
The product is a induction instrument and operates with Faraday law of electromagnetic induction
for measurement volume flow of liquid medium with conductive rate ≥50 us/cm.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
EMF100 intelligent electromagnetic flow meter is composed by sensor and transmitter.
The product is a induction instrument and operates with Faraday law of electromagnetic induction
for measurement volume flow of liquid medium with conductive rate ≥50 us/cm.
Product Features
Product Specification
Product Dimensions
|
EMF100 Electromagnetic flow meter |
|
|
Medium |
Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
|
Diameter |
DN6~DN2200mm |
|
Accuracy |
±0.5% |
|
Medium temperature |
<60℃ |
|
Nominal pressure |
GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
|
DIN PN16,PN25,PN40,PN63 |
|
|
JIS10K,20K,40K |
|
|
ANSI Class150,Class300,Class600, others can be customized |
|
|
Flow rate |
0.3~10m/s |
|
Straight pipe required |
Upstream ≥5DN,downstream ≥3DN |
|
Electrode |
316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
|
Lining material |
Chloroprene rubber(CR), polyurethane rubber(PU) |
|
Installation way |
Carbon steel flange (standard), Stainless steel flange(optional) |
|
Body material |
Carbon steel (standard),Stainless steel(optional) |
|
Power supply |
220VAC/24VDC/lithium battery |
|
Signal output |
Pulse and 4~20mA; (if use lithium battery, without signal output) |
|
Communication |
RS485,GPRS,Hart |
|
Explosion-proof |
EXdeibmIICT3-T6 |
|
Protection proof |
IP65 (compact type); IP67,IP68(suitable for remote type) |
|
Work environment |
Ambient temperature:-20~+60℃,Ambient humidity:5%~90% |
|
Power |
<20W |
