Engine Ignition Analyzer

OTI800 was created specically to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using Coil on Plug, Coil near Plug, conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies.
Quick and easy diagnostics of:
Non-starts     Misfires    Defective coils
Fouled or damaged spark plugs    Damaged spark plug wires
Suitble for       Coil on Plug, Coil near Plug,
Conventional Distributor Ignition Systems
Distributor-less Ignition Systems (DIS)
How to use
1.Select the ignition system to be measured (spark plug wire or coil on plug), and the number of cycles.
2.Select the measurement to show in the main display (RPM, spark burn time and spark plug voltage) and secondary display (Minimum and Maximum of the main display or the complementary measurements)

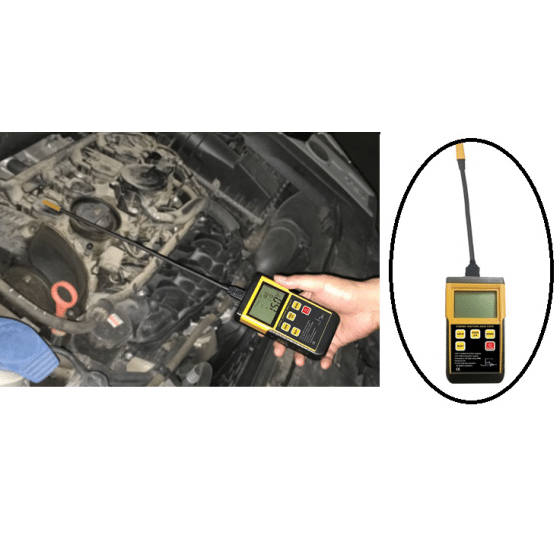

3.Place the antenna’s capacitive pick-up on top of the Coil on Plug module, or over a spark plug or ignition coil wire, and then read the measurements on the LCD display.
Electrical Specifications:
