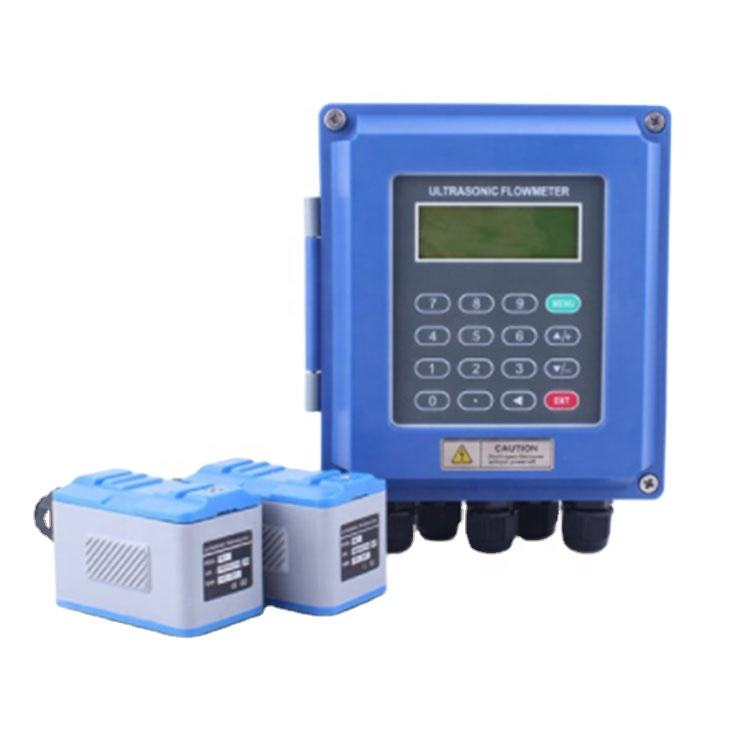

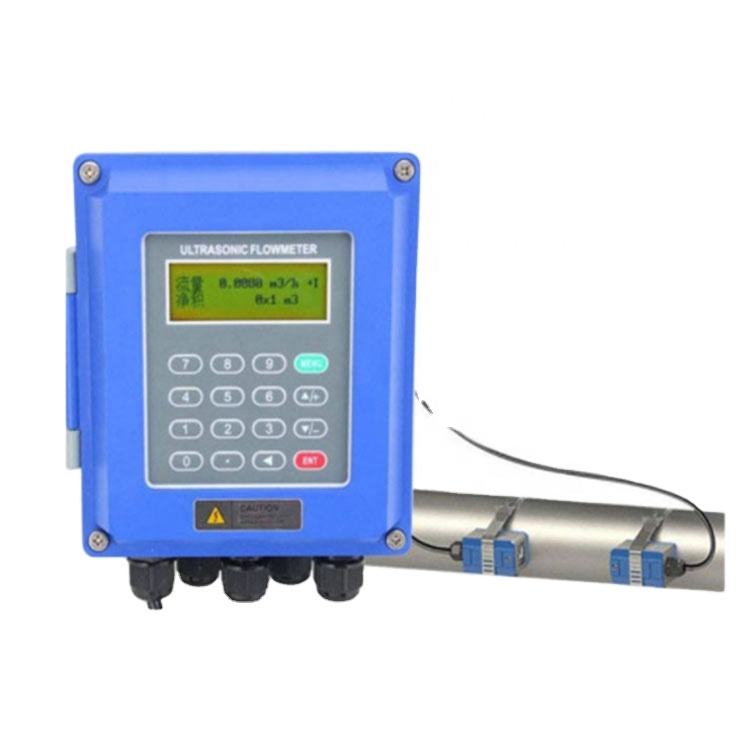

External Clamp Ultrasonic Flowmeter
1,520.00৳

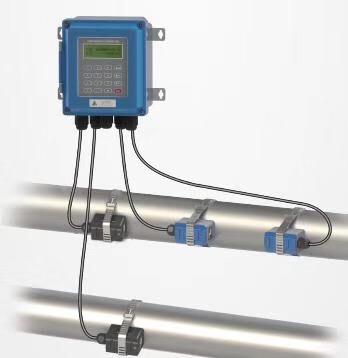

■ It is easy to install without breaking the pipe
■ The main unit is installed in the wall, instrument box and distribution box, and the protection level reaches IP67.
■ Multiple specifications of host options
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Product Features
■ It is easy to install without breaking the pipe
■ The main unit is installed in the wall, instrument box and distribution box, and the protection level reaches IP67.
■ Multiple specifications of host options
Product Specification
Product Dimensions
|
ECUF200 Series Ultrasonic Flowmeter |
|
|
Model |
ECUF200 |
|
Principle |
Ultrasonic time difference principle |
|
Precision |
±1% |
|
Flow rate range |
0～±10m/s, forward and reverse measurement |
|
Fluid temperature |
-30~+160°C |
|
Fluid type |
Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc. |
|
Pipe material |
Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining |
|
Signal output |
1 channel 4 ~ 20mA current output impedance 0 ~ 1K, accuracy 0.1% 1 channel OCT pulse output pulse width 6~1000ms 1 relay output |
|
Signal input |
3 channels of 4~20mA current input, can be used as data collector Can be connected to a three-wire PT100 platinum resistor for thermal measurement |
|
Communication Interface |
Isolated RS-485 serial interface, support MODBUS protocol |
|
Data storage |
SD card timing storage setting parameters and measurement results (optional) |
|
Power supply |
DC8~36V or AC85~264V |
|
Protection level |
Host: IP67, sensor: IP68 |
|
Humidity |
≤85%RH |
|
Temperature |
Host: -20 ~ +60 ° C, sensor: -30 ~ +160 ° C |
|
Dimensional Drawing (mm) |
|
|
|
|
