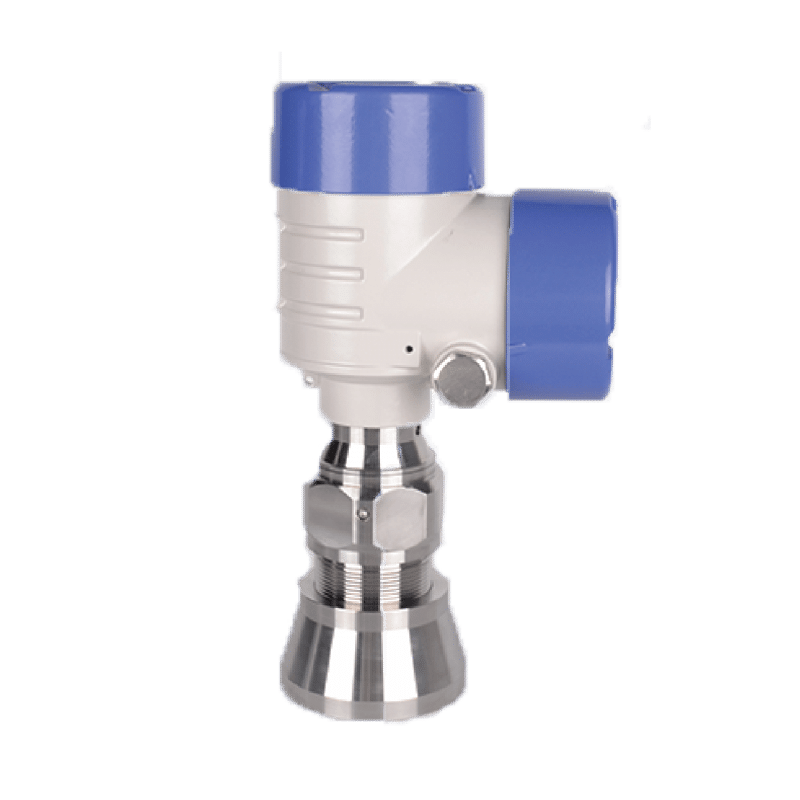

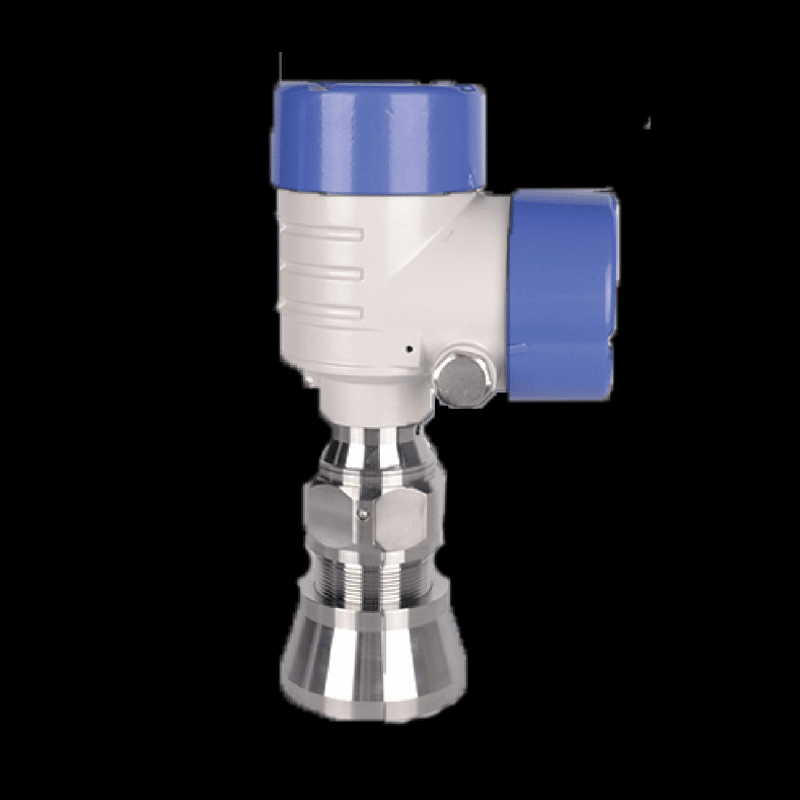

FMCW Radar Level Transmitter
1,520.00৳
FMCW is a Non contact radar level transmitter which is works on TDR technology with low error rate.
Applications:
1. Cement powder 2. Plastic powder/pellets 3. Grain, coal
4. Wood powder 5. Fly ash 6. Chemical paste
7. Greasy dirt 8. Sludge 9. Resin 10. Limestone
11. Sugar cane powder
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
FMCW is a Non contact radar level transmitter which is works on TDR technology with low error rate.
It is a Lens type radar with dual compartment and AC/DC both power supply.
120GHz, FMCW radar level transmitter for continuous monitoring of solids in silos to a range of 150 m.
It provide excellent accuracy for solids and dust applications
Product Features
1. High SNR
2. Easy to Install
3. Non-Contact
4. No Wear
5. No pollution free from corrosion
6. Strong penetrating ability
7. Strong reliability
Product Specification
| Frequency : | 120GHz |
| Scanning frequency : | 10GHz |
| Range : | 50/100/150m |
| Resolution : | 0.1mm |
| Accuracy : | <±5mm (solids), & ±3 mm (liquids) |
| Beam angle : | 0.7 degree |
| Size : | 253mm x 97mm x 97mm |
| Antenna Type : | LENS |
| Material : | PTEE / PEEK / PE |
| Signal Output : | 4-20ma |
| Communication : | HART/MODBUS/PROFIBUS |
| Failure Output : | 20mA and 20.5mA |
| Power Supply : | 4-wire system 16-36VDC / 110-250 VAC /50Hz |
| Configuration Setup : | software /key configuration /Wifi |
| Housing : | aluminum alloy |
| IP Rating : | IP67 |
| Air Purging : | Optional |
| Process Temperature : | -60..200°C Upto -60..1000°C with cooling tube or quartz isolation flange |
