Food rapid inspection and pre-treatment integrated machine

Product Introduction

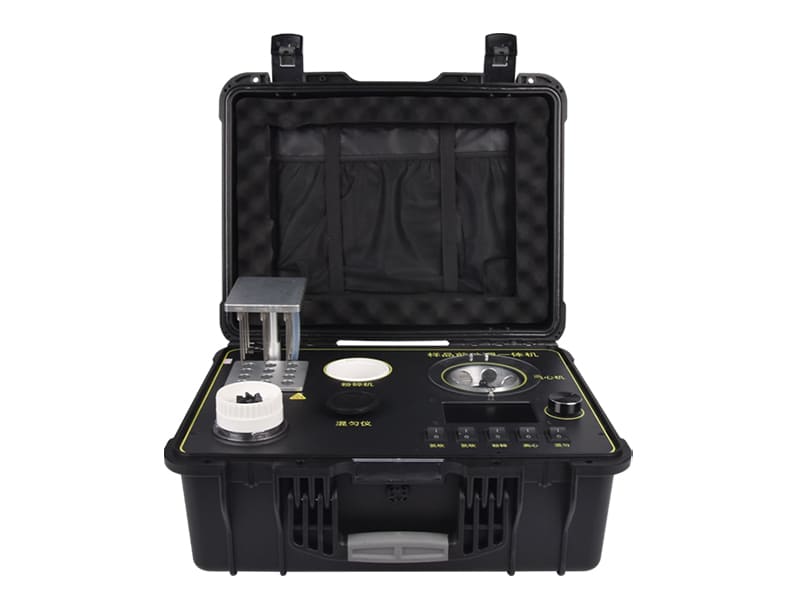

The QC4 four in one sample detection and pre-treatment all-in-one machine (box) is an integrated system that integrates blow drying, centrifugation, homogenization, and mixing functions, greatly simplifying and concentrating the general operation process of sample pre-treatment. Combined with a mobile and portable engineering plastic box, it is particularly suitable for rapid on-site quality and safety testing of agricultural and veterinary drug residues, livestock, poultry, and aquatic products.

Built in integrated instrument configuration table

Number, Function Name, Specification, Function Description, Quantity

1. Air drying function 12 heating incubation and drying 1

2 Centrifuge function 20ml x 6 high-speed centrifugal layering 1

3 Homogenization and crushing functions 300ml tissue homogenization and crushing 1

4. Oscillation mixing function 20ml mixing, oscillation 1

Product features

1. Compact in function, integrating four commonly used sample pre-treatment functions to achieve one-stop sample processing.

2. The structure is stable, and the chassis is made of high-quality engineering plastic, which has * * impact resistance, corrosion resistance, and portability.

3. Stable operation, the machine adopts a five inch full-color LCD screen with strong functional indication, and user operations are all physical switches to prevent operation failure when wearing gloves and liquid splashing.

Technical parameters

Centrifuge function

1. * High speed: 4500 rpm (revolutions per minute)

2. * Large relative centrifugal force: 2200 (× g)

3. Angular rotation capacity: 10 mlx6 (optional with 20mlx6)

Oscillation mixing function

1. Oscillation mixing speed: 3000 rpm (revolutions per minute)

2. Working mode: continuous

3. Speed regulation method: stepless speed regulation

Homogeneous crushing function

1. Motor speed: 15000 rpm (revolutions per minute)

2. Blade material: 304 stainless steel three-dimensional blade

3. Cup body material: ABS

Concentrated drying function (also serving as a heating module)

1. Heating and blowing hole position: 12 holes

2. Air source A: Air (high-performance air compressor)

Gas source B: Can be connected to nitrogen gas

3. Temperature error: ≤ ± 0.5 ℃

4. Carrier gas flow rate: 36L/min

5. Heating range: Room temperature -100 ℃
