Force Gauge 490N 50kgf 110Lbf digital push pull force tester FM-207-50K
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.
It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
| Force Range | ±50 kgf |
| ±490 N | |
| ±110 Lbf | |
| Resolution | 0.01 kgf |
| 0.1 N | |
| 0.1 Lbf | |
| Accuracy | ±0.2% FS ±1 Digit |
| Unit | Kgf, gf, N, Lbf |
| Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Blue Backlight |
| Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
| Data Output | USB, Bluetooth |
| Power Supply | 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply |
| Operating Conditions | Temperature: 0 ~ 40°C |
| Humidity: <80% | |
| Surrounding | No Vibration Source or Corrosive Medium Around |
| Weight | 390 g |
| Size | 211 x 80 x 36 mm |
| Standard Accessories | Digital Force Gauge | |
| Pulling Hook | ||
| Flat Tip | ||
| Cone Tip | ||
| V-shaped Groove Tip | ||
| V-shaped Wedge Tip | ||
| Lengthening Connection Rod | Screw Rod | |
| Cap Nut | ||
| Manual | ||
| Carrying Case | ||
| Optional Accessories | CD | |
| USB Data Cable | ||
| Bluetooth Adapter | ||
| Power Adapter | ||
| Force Gauge Stand | ||

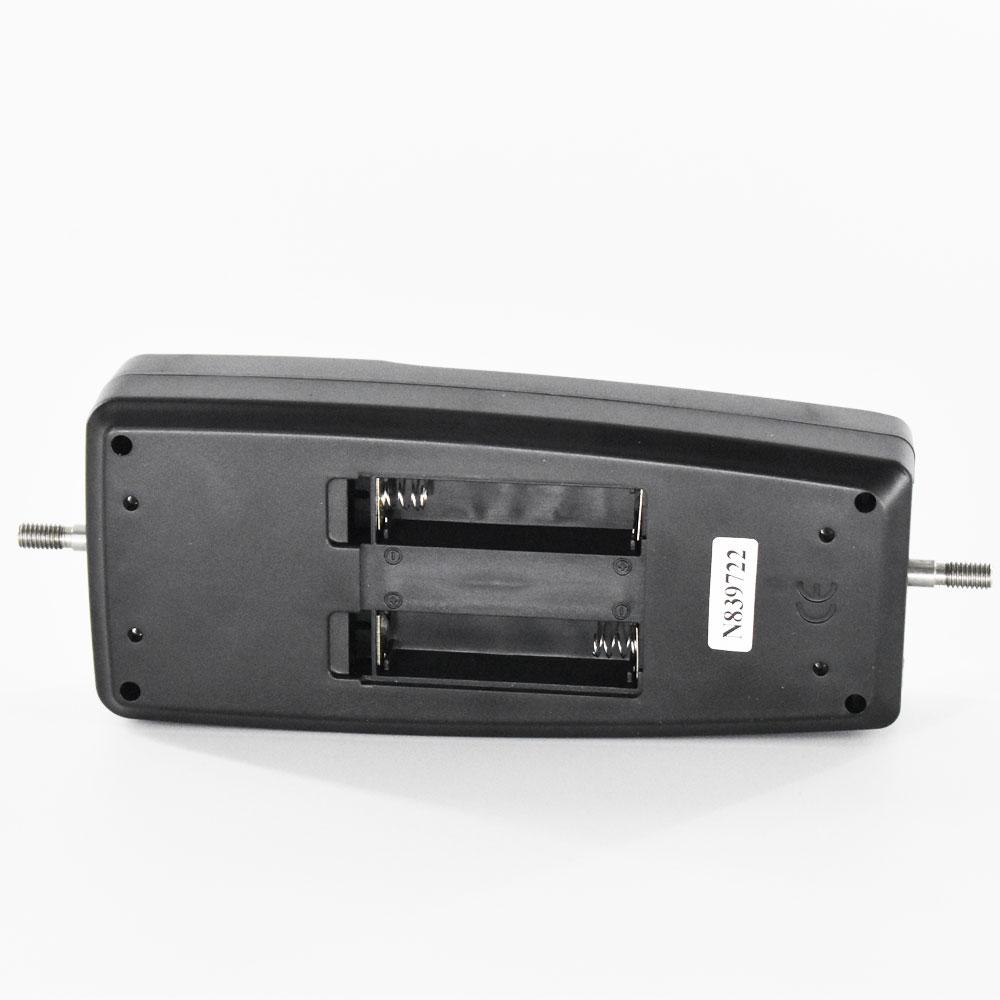

Product Image
