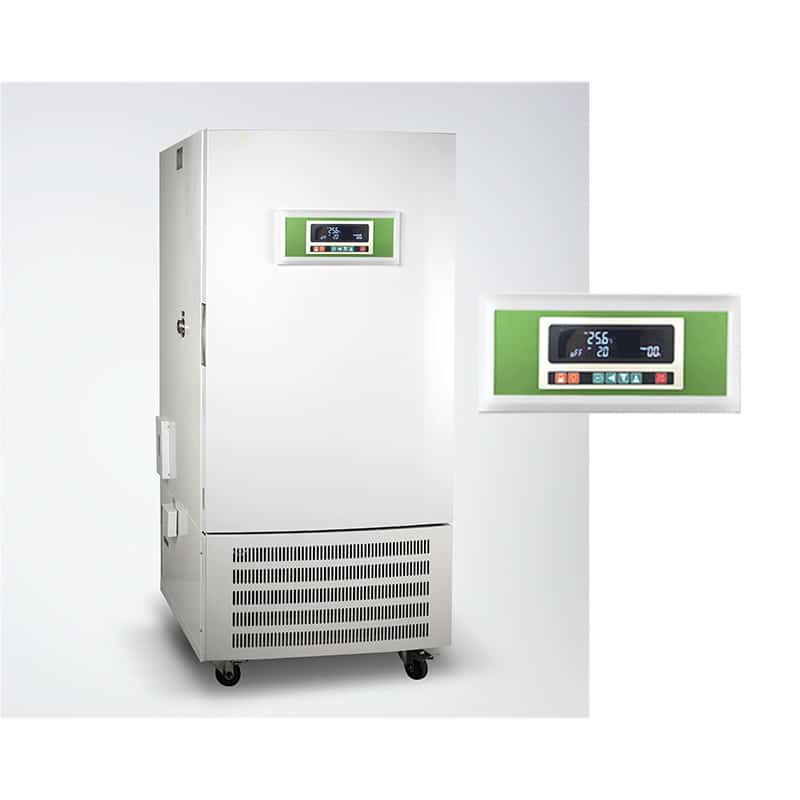

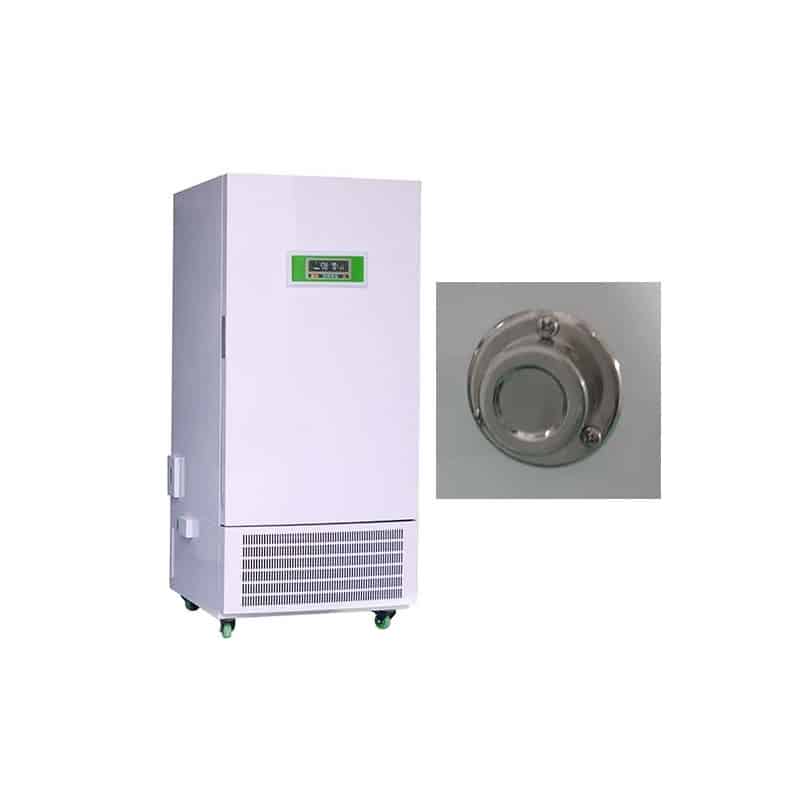

LDS Series Medicine Stability Test Chamber
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
LDS Series Medicine Stability Test Chamber
- Dual refrigeration system.
- Imported compressor with self-developed compressor cooling system, extend service life of the compressor.
- Imported humidity sensor, ensuring high accuracy of humidity.
- PID control for temperature and humidity, more accurate,easy menu operation interface.
- Over-temperature alarm system:automatically stop working when exceeded the limit temperature and send out audible and visual alarm,ensure experiments run safely.
- Large LCD screen to display more data at same time.
- Newest multi-segment programmable control technology for temperature and humidity, high precision.With multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.
- Equipped with JAKEL circulation fan ,unique designed air duct for good air circulation, ensuring good temperature uniformity inside.
- Equipped with built-in stainless steel water tank at the bottom of equipment to supply water by pump for the humidifcation tank.
- Equipped with spare temperature control which ensures the product work normally even the main temp.control failed(for heating).

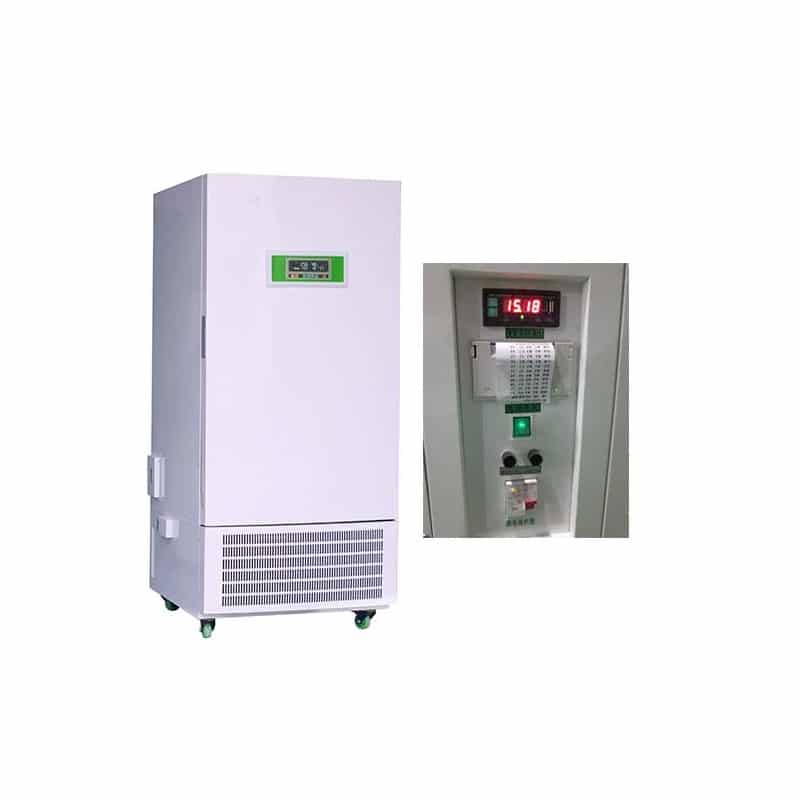

- Equipped with printer which can record and print the operating parameters at any time.
- Mirror stainless steel chamber, adjustable shelf.
- The chamber is equipped with a power socket and UV lamp for sterilization.
- Double door design. Tempered glass inner door for clear observation. The outer door adopts magnetic seal design, good sealing performance.
This equipment provide a long time stable environment of temperature, humidity and illumination for the Pharmaceutical industry medicine invalidation evaluation. It’s applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.
A Stability Testing Chamber allows for the conduct and monitoring of chemical, biological, and microbiological tests.
Within the chamber, products can be tested to see if factors such as humidity, light and temperature influence products whilst they are being stored.
| Model | LDS-175Y-N/ LDS-175T-N
LDS-275Y-N / LDS-275T-N LDS-375Y-N / LDS-375T-N LDS-475Y-N / LDS-475T-N LDS-800Y-N / LDS-800T-N LDS-1075Y-N / LDS-1075T-N |
LDS-175GY-N / LDS-175GT-N
LDS-275GY-N / LDS-275GT-N LDS-375GY-N / LDS-375GT-N LDS-475GY-N / LDS-475GT-N LDS-800GY-N / LDS-800GT-N LDS-1075GY-N / LDS-1075GT-N |
LDS-175HY-N
LDS-275HY-N LDS-375HY-N LDS-475HY-N LDS-800HY-N LDS-1075HY-N |
| Temperature & Humidity | Temperature & Humidity & Light | Temperature & Light | |
| Temperature Range(℃) | 0~65 | Without Illumination:4~50
With Illumination:10~50 |
|
| Temperature Fluctuation | ±0.5 | ||
| Temperature Uniformity (℃) | ±2 | ||
| Humidity Range(RH) | 30~95% | None | |
| Humidity Stability(RH) | ±3 | ||
| Temperature Resolution(℃) | 0.1 | ||
| Illumination(LX) | None | 0~6000 adjustable | |
| Illumination Difference((LX) | ≤±500 | ||
| Timing Range | 1~99 hours/period | ||
| Temp.and Humidity adjusting | Balance temperature and humidity adjusting | Balance temperature adjusting | |
| Cooling System | Imported compressor | ||
| Controller | Y: Programmable (LCD display)
T: Programmable (touch screen) |
GY: Programmable (LCD display)
GT: Programmable (touch screen) |
HY:Programmable (LCD display) |
| Sensor | PT100
Capacitance sensor |
PT100 | |
| Ambient Temperature | RT+5~30℃ | ||
| Power Supply | AC 220V±10% ,50HZ | ||
| Power Rating(W) | 1400/1950/2600/2800/3000/3200 | 1650/2200/2700/2900/3100/3300 | 1300/1750/2400/2600/2700/2800 |
| Chamber Volume(L) | 175,275,375,475,800,1075 | ||
| Chamber Size(W×D×H)mm | 450×420×930
580×510×935 590×550×1160 700×550×1250 965×610×1370 950×700×1600 |
||
| Shelf | 3 | ||
| Printer | Yes | ||
| Safety Device | Compressor overheating and over pressure protection,Fan overheating protection, Over temperature protection, Overload protection,water shortage protection | ||
