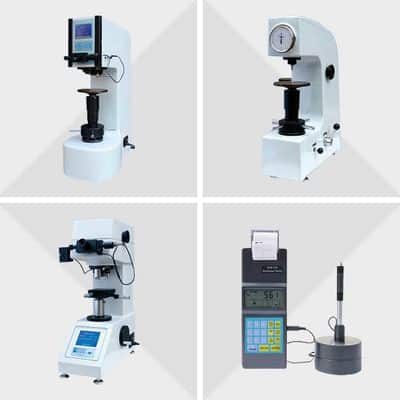

Metallic Materials Universal Hardness Tester Vickers Brinell Rockwell 4-650HBW
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Hardness Tester | Standard: | ISO 6508-2: 2015 |
|---|---|---|---|
| Function: | Rockwell/Brinell/Vickers/Leeb Hardness | Depth Of Throat: | 160mm |
| Test Piece Height: | 200mm | Measuring Range: | 4-650HBW |
| High Light: |
650HBW Material Hardness Tester, Universal Hardness Tester Vickers Brinell Rockwell, Rockwell Metal Hardness Tester |
||
Metallic Materials Hardness Tester For Rockwell/Brinell/Vickers/Leeb Hardness Testing
Application:
The hardness testing is widely used in the industry production and quality control for the metallic materials and nonmetal material. According to the testing principle, it includes Rockwell hardness tester, Brinell hardness tester, Vickers hardness tester, Leeb hardness tester, Shore hardness tester, Barcol hardness tester, and so on.
The Rockwell hardness tester is used to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Brinell hardness tester is used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Vickers hardness tester is mainly used to determine the Vickers hardness of ferrous metals (not including cast iron), non-ferrous metals.
Leeb hardness tester is used to determine the Leeb hardness of ferrous and non-ferrous metal precisely.
Shore hardness tester is used to determine the hardness of rubber & plastic materials with high hardness, such as hard rubber, hard resin, organic glass, thermoplastic rubber, printing board, fibre and so on.
Barcol hardness tester is mainly used to test hardness of aluminum, aluminum alloy and glass fiber reinforced plastics.
Webster hardness tester is mainly used to test for the hardness of aluminum alloy profiles, pipes, plates, aluminum parts and other soft metal.
Standard:
ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters
ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials
ASTM E92 -17 Standard Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials
ISO 6507-2:2018 Metallic materials – Vickers hardness test – Part 2: Verification and calibration of testing machines
ISO 6506-2:2017 Metallic materials – Brinell hardness test – Part 2: Verification and calibration of testing machines
ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials
ISO 868:2003 Plastics and ebonite – Determination of indentation hardness by means of a durometer (shore hardness)
ASTM B648-10 Standard Test method for indentation hardness of aluminum alloys by means of a Barcol Impressor
BRINELL ROCKWELL VICKERS HARDNESS TESTER
Parameters:
| Item | Name | Details |
| 1 | Test force | 294.2, 306.5, 588.4, 612.9, 980.7, 1471, 1839N (30, 31.25, 60, 62.5, 100, 150, 187.5kgf) |
| 2 | Measuring range | 4-650HBW, 20-88HRA, 20-100HRB, 20-70HRC, 200-1000HV |
| 3 | Depth of throat | 160mm |
| 4 | Max. height of test piece | 200mm |
| 5 | Power supply | 220 AC or 110V AC, 50 or 60Hz |
| 6 | Dimensions | 480 x 250 x 760mm |
| 7 | Weight | 95kg |
Features:
1. Precision conforms to GB/T 230.2, GB/T 231.2, GB/T 4340.2, ISO6508-2, ISO6507-2, ISO6506 -2, ASTM E18, ASTM E10 and ASTM E92
2. It’s steady and reliable for testing of curved surface
3. Direct reading from screen for Rockwell hardness scale
