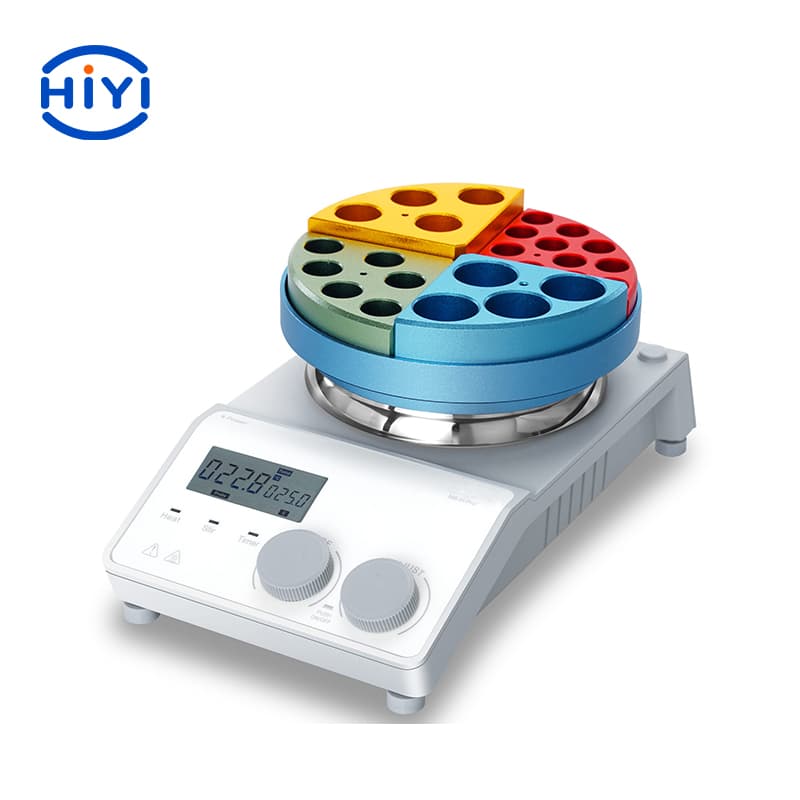

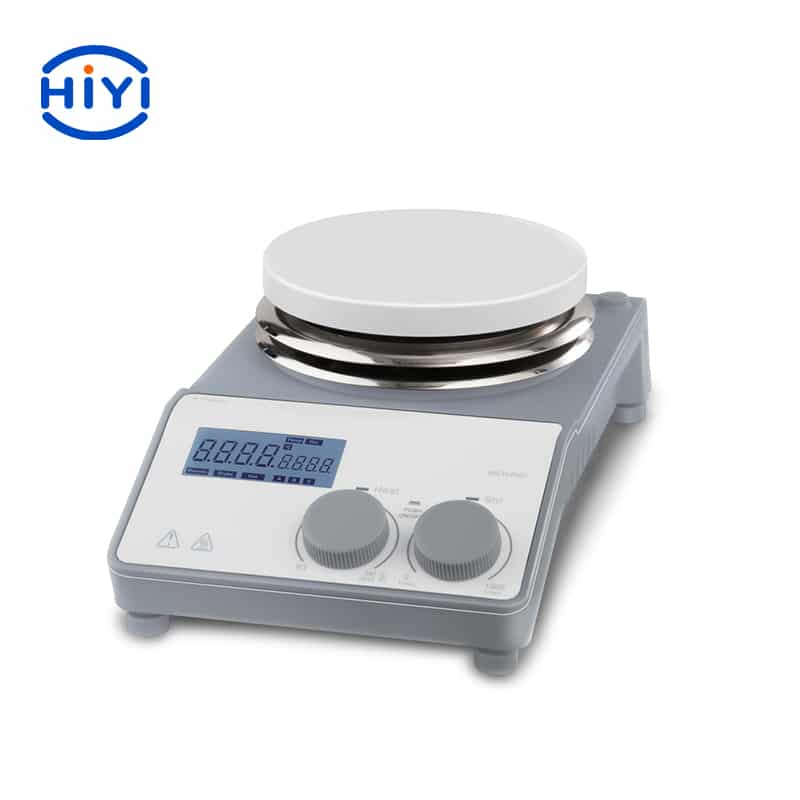

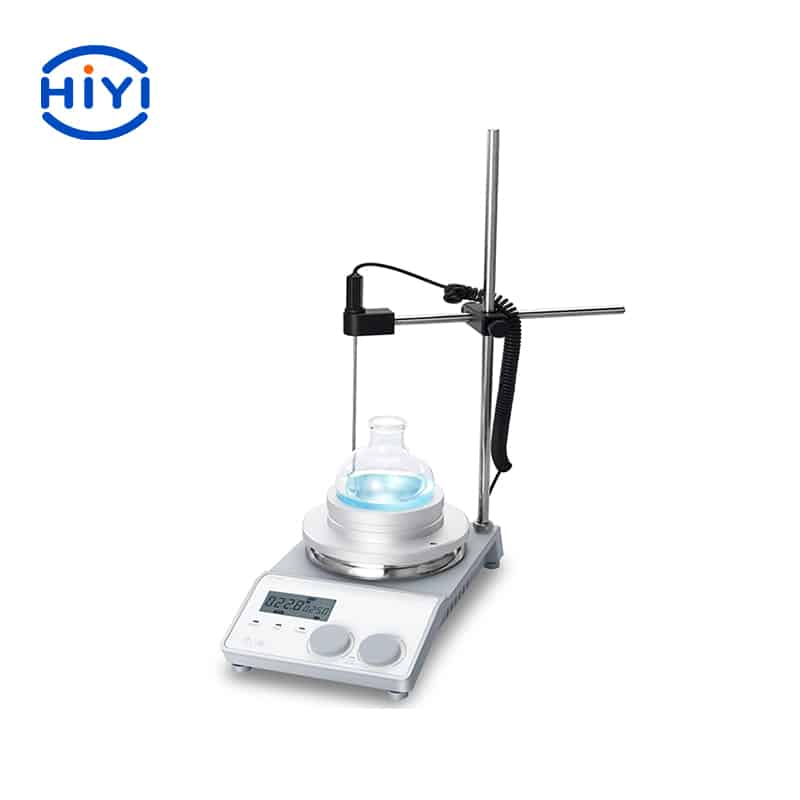

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
MS-H-ProT LCD Digital Magnetic
Hotplate Stirrer with Timer
Features:
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
• A wide variety of accessories are available
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
|
Specifications
|
MS-H-PROT
|
|
Work plate dimension
|
φ135mm(5 inch)
|
|
Work plate material
|
stainless steel cover with ceramic
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
18W
|
|
Motor rating output
|
10W
|
|
Power
|
550W
|
|
Heating output
|
500W
|
|
Voltage
|
100-120/200-240V 50/60Hz
|
|
Stirring positions
|
1
|
|
Max. stirring quantity[H2O]
|
20L
|
|
Max. magnetic bar[length]
|
80mm
|
|
Speed range
|
100-1500rpm
resolution±1rpm |
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
Room temp.-340°C, increment 1°C
|
|
Temperature control accuracy
|
±1°C(<100°C)
±1%(>100°C) |
|
Over temperature protection
|
420°C
|
|
Temperature display accuracy
|
±0.1°C
|
|
External temperature sensor
|
PT1000 (accuracy ±0.2)
|
|
“Hot” warning
|
50°C
|
|
Timer function
|
1min to 99h 59min
|
|
Data connector
|
RS232
|
|
Protection class
|
IP42
|
|
Dimension[WxDxH]
|
160×280×85mm
|
|
Weight
|
2.8kg
|
|
Permissible ambient temperature and humidity
|
5-40°C, 80%RH
|
