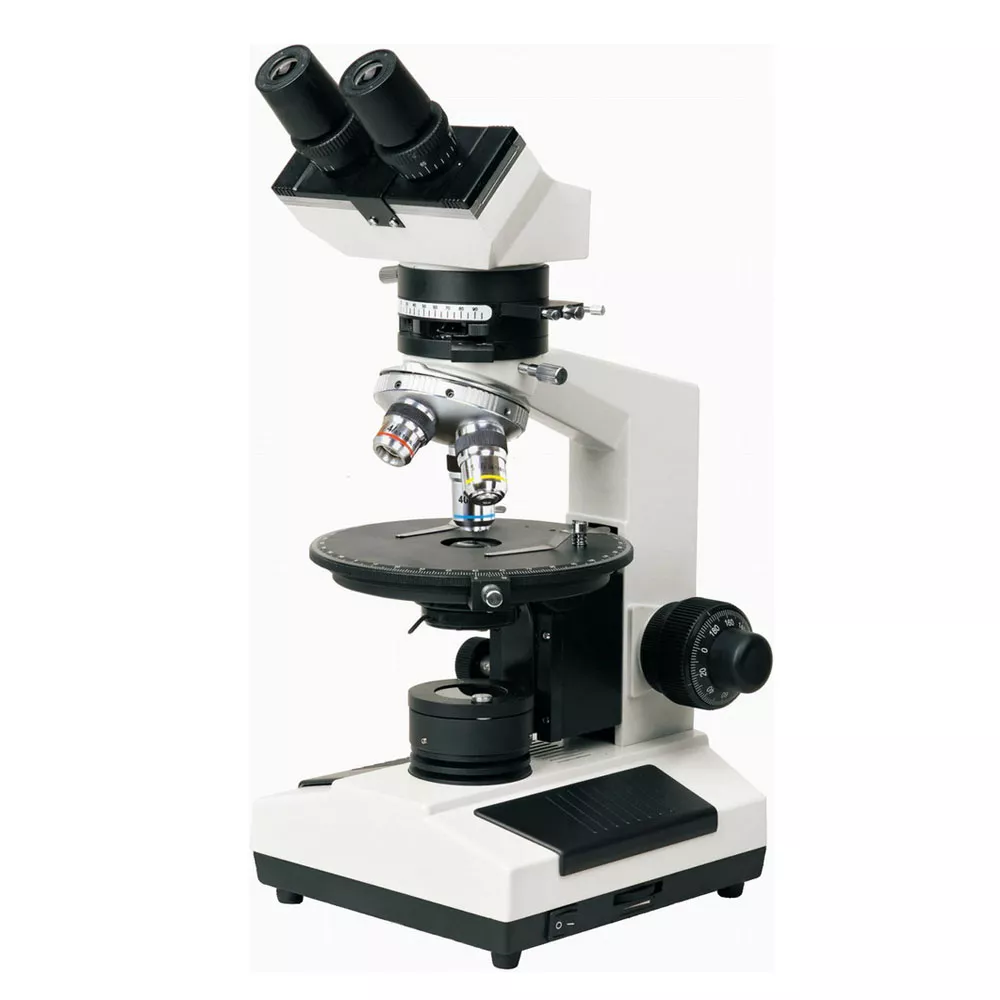

Nade Lab Polarizing Monocular Digital usb Microscope NP-107M electron microscope price

NP-107M

NP-107B

NP-107T

Viewing

Head

Monocular Head inclined at 45°

s

Sliding Binocular Head inclined at 45°

s

Sliding Trinocular Head inclined at 45°

s

Eyepiece

Eyepiece WF10×/ 18 with Scale of Crosshair

s

s

s

Eyepiece WF10×/ 18

s

s

Objective

Strain free Achromatic Objective 4×,10×,40×

s

s

s

Nosepiece

Toward Quadruple Nosepiece

s

s

s

Analyzer

Rotatable Analyzer with Graduation 0°-90°

s

s

s

Bertrand Lens

Bertrand Lens, Sliding in/ out of Optical Path

s

s

s

Optical Compensator

λ Slip (first class red)

s

s

s

1/4λ Slip

s

s

s

Quartz Wedge

s

s

s

Revolving Round Stage

Diameterφ135mm, 360°Rotatable and

Graduate in 1°Increments, Minimum Resolution

6′when using Venire Scale, Center Adjustable

s

s

s

Condenser

Abbe Condenser NA1.25 with lris Diaphragm and Filter

s

s

s

Focusing

Coaxial Coarse & Fine Adjustment , Range 28mm,

Fine Division 0.002

s

s

s

Polarizer

0°-90°Rotatable Located on the Top of collector

s

s

s

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

s

s

s
